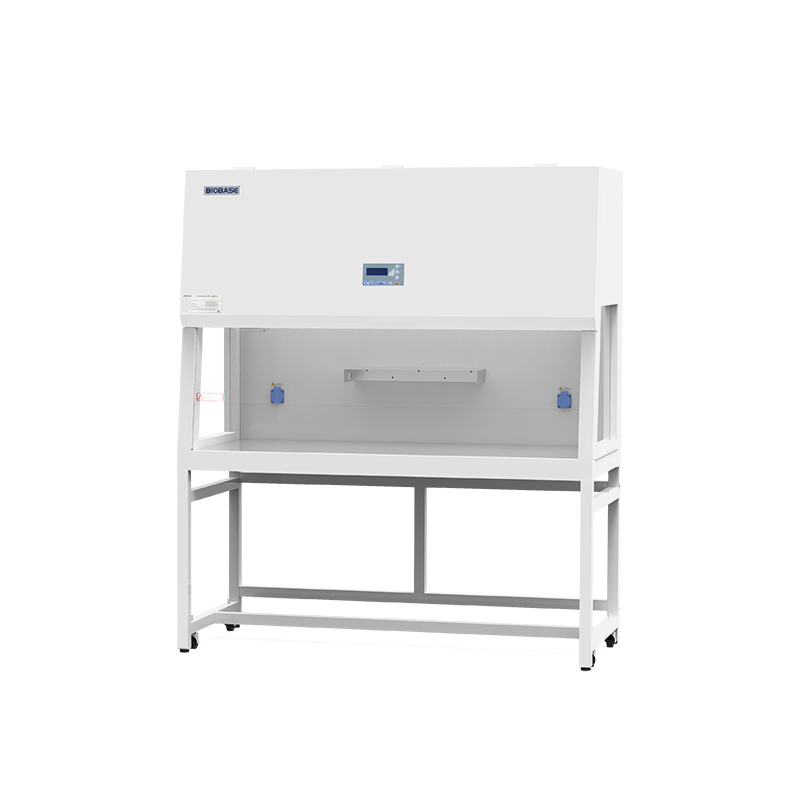

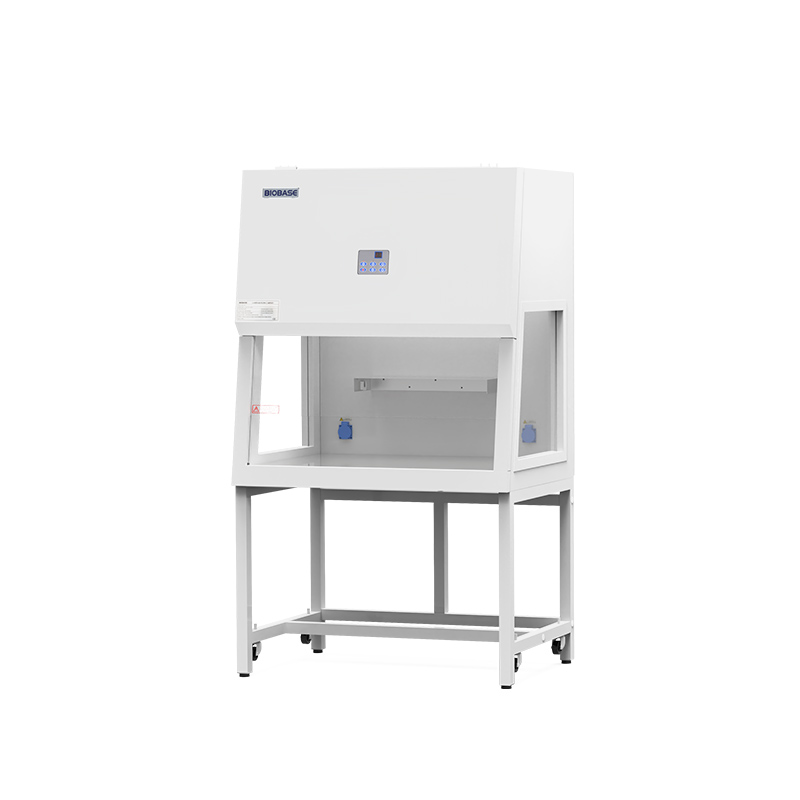

PCR safety cabinet

PCR-800 / PCR-1000 / PCR-1200 / PCR-1300 / PCR-1500

The PCR Cabinet is a specialized workspace designed to provide a contamination-free environment for performing Polymerase Chain Reaction(PCR) experiments. It helps to prevent cross-contamination by ensuring that airborne particles and aerosols are filtered and controlled.

Key features

Containment and HEPA filtration
Protection matched to the risk class
Configuration validated for the space

Made to orderPrice on request

Manufacturer: BIOBASE

Request a quote

Reply within 24 hoursValidated selection and configurationDelivery to the UK, all European countries, USA, Canada, Mexico and South America.

01 / Accessories

Available accessories

Included accessories

UV lamp
Fluorescent lamp
Base stand
Waterproof socket*2
Shelf with IV bar

Optional accessories

Electric height adjustable base stand ·

Final contents, accessory compatibility and availability are confirmed in the quotation for the selected model.

02 / LaboratoriX technical datasheet

LaboratoriX technical datasheet

Technical parameters consolidated from the manufacturer documentation. Each column corresponds to one model; shared values are clearly identified. Final configuration, accessories, power supply and applicable documentation are confirmed with the quotation.

Parameter	PCR-800	PCR-1000	PCR-1200	PCR-1300	PCR-1500
External Size(WDH)	800 × 700 × 1770 mm	1000 × 705 × 1770 mm	1200 × 700 × 1770 mm	1300 × 700 × 1770 mm	1500 × 700 × 1770 mm
Internal Size(WDH)	700 × 595 × 550 mm	900 × 595 × 560 mm	1100 × 595 × 550 mm	1200 × 595 × 550 mm	1400 × 595 × 550 mm
Work Surface Height	Common to all models750 mm
Material	Common to all modelsMain Body: Cold-rolled steel with anti-bacteria powder coating
Material (2)	Common to all modelsWork Table: 304 stainless steel
Front&Side Windows	Common to all models5 mm toughened glass, anti-UV
Front&Side Windows (2)	Motorized	Manual	Motorized	Motorized	Motorized
Max Opening	300 mm	320 mm	300 mm	300 mm	300 mm
Pre-filter	Common to all modelsPolyester fiber, washable
HEPA Filter	Common to all models99.995 % efficiency at 0.3 µm
Airflow Velocity	Common to all models0.3–0.5m/s, speed adjustable
Noise	Common to all models≤65dB
UV Lamp	*20 W1**	*20 W2**	*30 W1**	*30 W1**	*40 W1**
UV Lamp (2)	Common to all modelsEmission of 253.7 nanometers, with UV timer
LED Lamp	*8 W2**	*8 W2**	*12 W2**	*12 W2**	*12 W2**
Illumination	Common to all models≥350lx
Shelf with IV Bar	Common to all modelsStainless steel, 502 × 150 × 50 mm(WDH)
Caster	Common to all modelsUniversal caster with leveling feet
Consumption	400 W	300 W	600 W	600 W	600 W
Waterproof Socket	Common to all modelsTwo, total load≤500 W
Power Supply	Common to all modelsAC220V±10 %, 50/60 Hz; 110 V±10 %, 60 Hz
Standard Accessory	Common to all modelsUV lamp, Fluorescent lamp, Base stand, Waterproof socket*2, Shelf with IV bar
Optional Accessory	Common to all modelsElectric height adjustable base stand ·
Gross Weight	168 kg	178 kg	220 kg	231 kg	250 kg
Package Size(WDH)	960 × 940 × 1450 mm	1150 × 930 × 1450 mm	1350 × 930 × 1450 mm	1450 × 930 × 1450 mm	1650 × 930 × 1450 mm
