Photography and technical data supplied by: BIOBASE · 1 image.

Biological safety cabinets

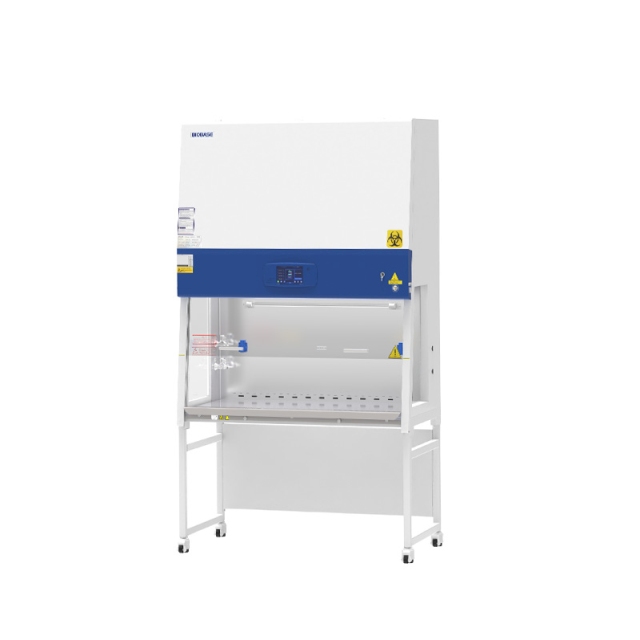

NSF Class II A2 biological safety cabinets

BSC-4FA2 / BSC-3FA2-GL / BSC-3FA2-NA / BSC-4FA2-GL / BSC-4FA2-NA / BSC-6FA2-GL / BSC-6FA2-NA

The NSF Certified Class II Biosafety Cabinet is a top-tier laboratory safety enclosure designed to provide maximum protection for operators, samples, and the environment when working with moderate-risk biological agents.

Key features

  • Containment and HEPA filtration
  • Protection matched to the risk class
  • Configuration validated for the space
Made to orderPrice on request
Manufacturer
BIOBASE
Request a quote
Reply within 24 hoursValidated selection and configurationDelivery to the UK, all European countries, USA, Canada, Mexico and South America.

01 / Accessories

Available accessories

Included accessories

  • LED lamp*2
  • UV lamp*2
  • Base stand
  • SS water tap*1
  • SS gas tap*1
  • Drain valve Waterproof sockets*2
  • Stainless Steel IV Bar with 10 hooks
  • Remote control

Optional accessories

  • Armrest
  • Airflow tester
  • Formalin fumigation sterilizer
  • Infrared sterilizer
  • Electric height adjustable base stand

Final contents, accessory compatibility and availability are confirmed in the quotation for the selected model.

02 / LaboratoriX technical datasheet

LaboratoriX technical datasheet

Technical parameters consolidated from the manufacturer documentation. Each column corresponds to one model; shared values are clearly identified. Final configuration, accessories, power supply and applicable documentation are confirmed with the quotation.

ParameterBSC-4FA2BSC-3FA2-GL / BSC-3FA2-NABSC-4FA2-GL / BSC-4FA2-NABSC-6FA2-GL / BSC-6FA2-NA
External Size(W*D*H)1383 × 775 × 2220 mm1087 × 775 × 2220 mm1383 × 775 × 2220 mm1873 × 775 × 2240 mm
Internal Size(W*D*H)1210 × 600 × 660 mm910 × 600 × 660 mm1210 × 600 × 660 mm1700 × 600 × 660 mm
Work Surface Height762 mm762 mm762 mm782 mm
Max Opening
Common to all models470 mm
Tested OpeningSafety height 200 mm(8")Safety height 254 mm(10")Safety height 254 mm(10")Safety height 254 mm(10")
Airflow Volume
Common to all modelsInflow · 462m³/h(272cfm) · 445m³/h(259cfm) · 587m³/h(346cfm) · 824m³/h(485cfm)
Airflow Volume (2)
Common to all modelsDown Flow · 65 %: 863m³/h(507cfm) · 60 %: 649m³/h(382cfm) · 60 %: 863m³/h(507cfm) · 60 %: 1212m³/h(713cfm)
Airflow Volume (3)
Common to all modelsExhaust · 35 %: 462m³/h(272cfm) · 40 %: 445m³/h(259cfm) · 40 %: 587m³/h(346cfm) · 40 %: 824m³/h(485cfm)
Front Window
Common to all modelsMotorized. Two-layer laminated toughened glass≥6 mm. Anti UV
ULPA Filter
Common to all modelsTwo, 99.995 % efficiency at 0.12 µm, filter life indicator
Filter Guard Type
Common to all modelsAluminum alloy frame, glass fiber fiter paper
Noise
Common to all modelsNSF 49≤67dB
Illumination
Common to all models≥1000Lux
Display
Common to all modelsColor touch screen
Waterproof Socket
Common to all modelsTwo, total consumption: ≤500 W
Tap
Common to all modelsWater tap*1, Gas tap *1
Ground Resistance
Common to all models≤ 0.10Ω
Power Supply
Common to all modelsAC230V, 50/60 Hz; AC115V, 60 Hz, Full load Amps: 9 A, BTU/Hr: 1689
Consumption500 W400 W500 W700 W
Alarm
Common to all modelsAbnormal airflow velocity, Filter replacement, Front window at unsafe height, High filter pressure alarm
Motor
Common to all modelsEC motor, 115 V&230 V acceptable, speed adjustable, high efficiency and low power consumption
Material
Common to all modelsWorking area: 304 stainless steel · Frame and decorative plate: cold-rolled steel with anti-bacteria power coating
UV Lamp30 W20 W30 W40 W
UV Lamp (2)
Common to all modelsGermicidal UV lamp, Emission of 253.7 nanometers for most efficient decontamination
Illuminating Lamp20 W*210 W*220 W*223 W*2
Illuminating Lamp (2)
Common to all modelsLED lamp
Standard Accessory
Common to all modelsLED lamp*2, UV lamp*2, Base stand, SS water tap*1, SS gas tap*1, Drain valve Waterproof sockets*2, Stainless Steel IV Bar with 10 hooks, Remote control
Optional Accessory
Common to all modelsArmrest, Airflow tester, Formalin fumigation sterilizer, Infrared sterilizer, Electric height adjustable base stand
Package Size(W*D*H)1540 × 1080 × 1900 mm1240 × 1060 × 1900 mm1540 × 1080 × 1900 mm2020 × 1080 × 1900 mm
Gross Weight330 kg280 kg330 kg410 kg

Technical data supplied by BIOBASE.

MADE-TO-ORDER SUPPLY

Do you need this equipment?

Share the application, configuration, quantity and delivery location. We prepare a tailored proposal with the required documentation.

The information provided will be used only to respond to your request. More privacy information
