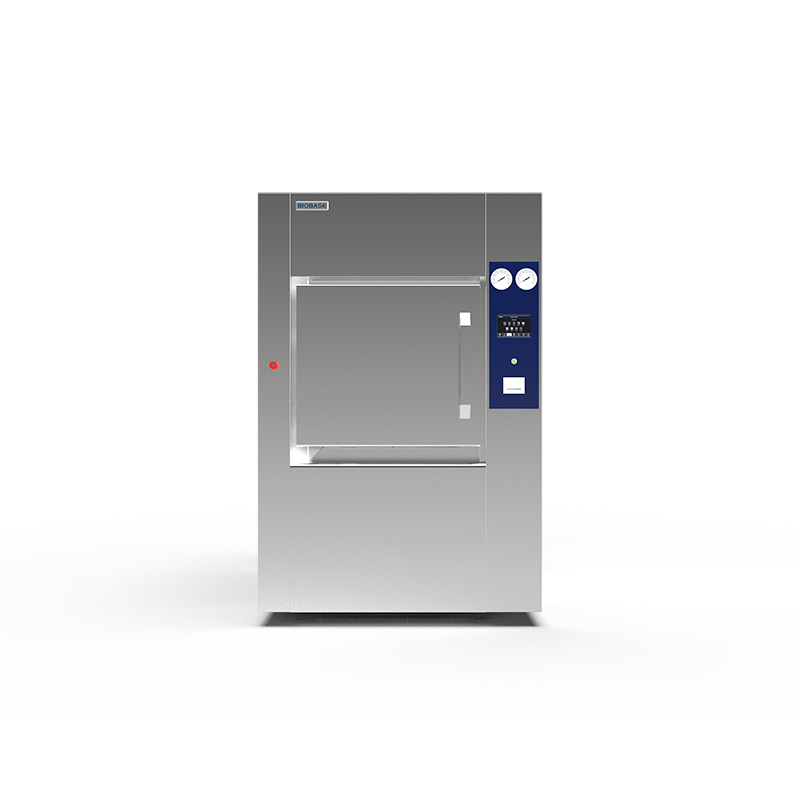

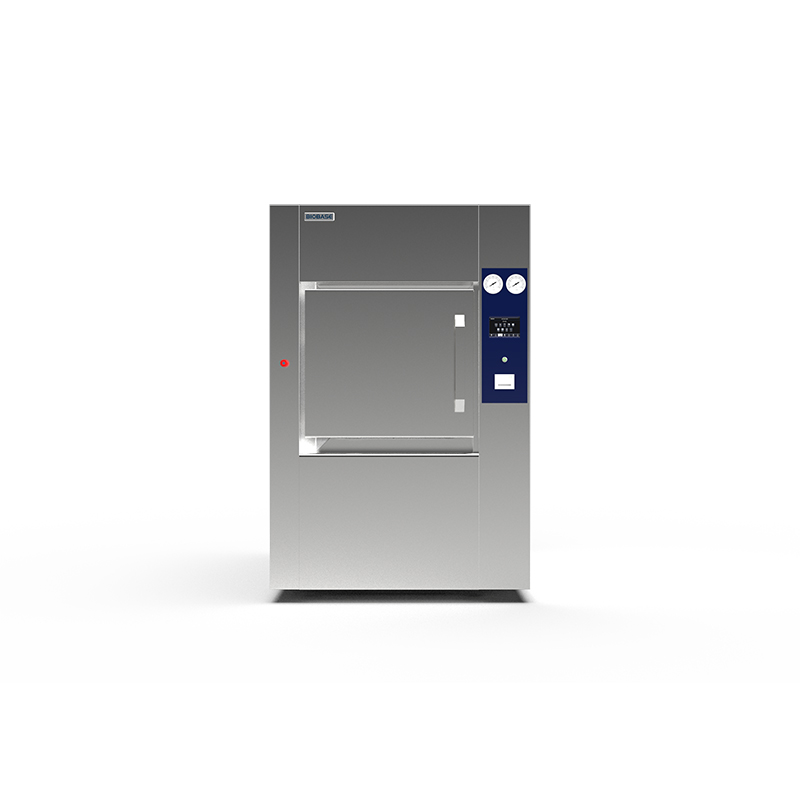

BIOBASE BKQ-Z450H / BKQ-Z650H Large Horizontal Autoclave BKQ-Z450H BKQ-Z650H
BIOBASE BKQ-Z450H / BKQ-Z650H Large Horizontal Autoclave BKQ-Z450H BKQ-Z650H — 2BIOBASE BKQ-Z450H / BKQ-Z650H Large Horizontal Autoclave BKQ-Z450H BKQ-Z650H — 3BIOBASE BKQ-Z450H / BKQ-Z650H Large Horizontal Autoclave BKQ-Z450H BKQ-Z650H — 4BIOBASE BKQ-Z450H / BKQ-Z650H Large Horizontal Autoclave BKQ-Z450H BKQ-Z650H — 5BIOBASE BKQ-Z450H / BKQ-Z650H Large Horizontal Autoclave BKQ-Z450H BKQ-Z650H — 6

Photography and technical data supplied by: BIOBASE · 6 images.

Sterilisation

Large Horizontal Autoclave BKQ-Z450H BKQ-Z650H

BKQ-Z450H / BKQ-Z650H

Equipment for sterilisation, disinfection and technical washing of materials, instruments, air and surfaces.

Made to orderPrice on request
Manufacturer
BIOBASE
Request a quote
Reply within 24 hoursValidated selection and configurationDelivery across mainland Portugal, Madeira, the Azores, and all European countries.

01 / Key features

Key features

  • Thermal, UV, plasma or chemical processes
  • Capacities and formats for different loads
  • Integrated safety systems

02 / LaboratoriX technical datasheet

LaboratoriX technical datasheet

Technical parameters consolidated from the manufacturer documentation. Each column corresponds to one model; shared values are clearly identified. Final configuration, accessories, power supply and applicable documentation are confirmed with the quotation.

ParameterBKQ-Z450HBKQ-Z650H
Capacity450L650L
Door
Common to all modelsAutomatic

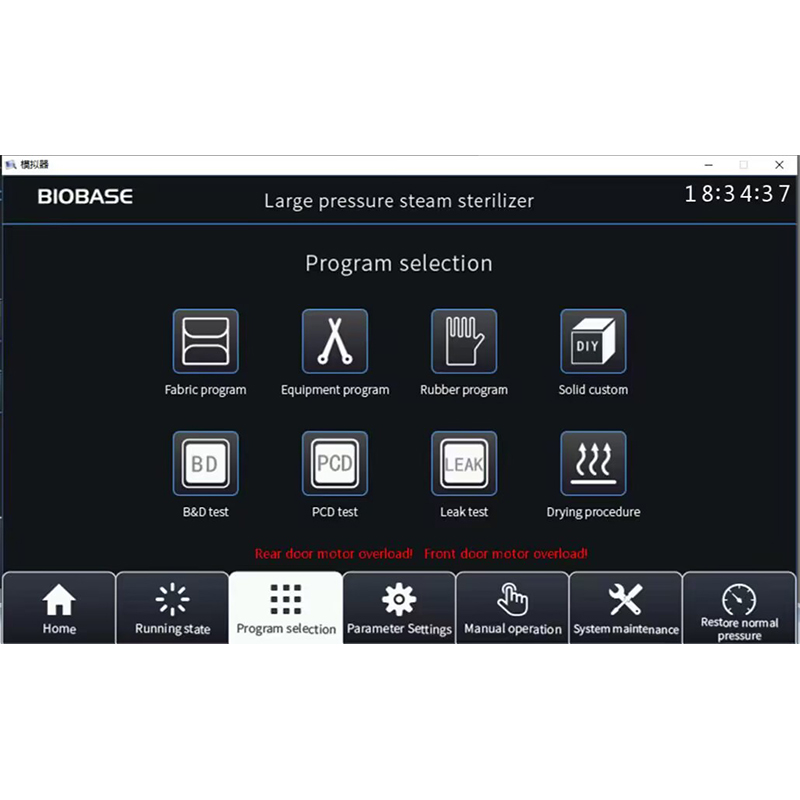

Display
Common to all models7-inch LCD touch screen
Designed Pressure
Common to all modelsInner chamber: -0.1/0.3MPa; Jacket: 0.3MPa
Working Pressure
Common to all models0.21MPa
Designed Temp.
Common to all models150℃
Max Working Temp.
Common to all models134℃
Temp. Precision
Common to all models0.1℃
Built-In Steam Generator
Common to all models0.8MPa
Sterilization Time
Common to all models1~99min
Drying Time
Common to all models1~99min
Vacuum system
Common to all modelsWater circulating vacuum pump
Chamber Material
Common to all modelsS30408
Chamber Size(W*D*H)672*1000*672mm672*1500*672mm
Altitude
Common to all models≤2000m

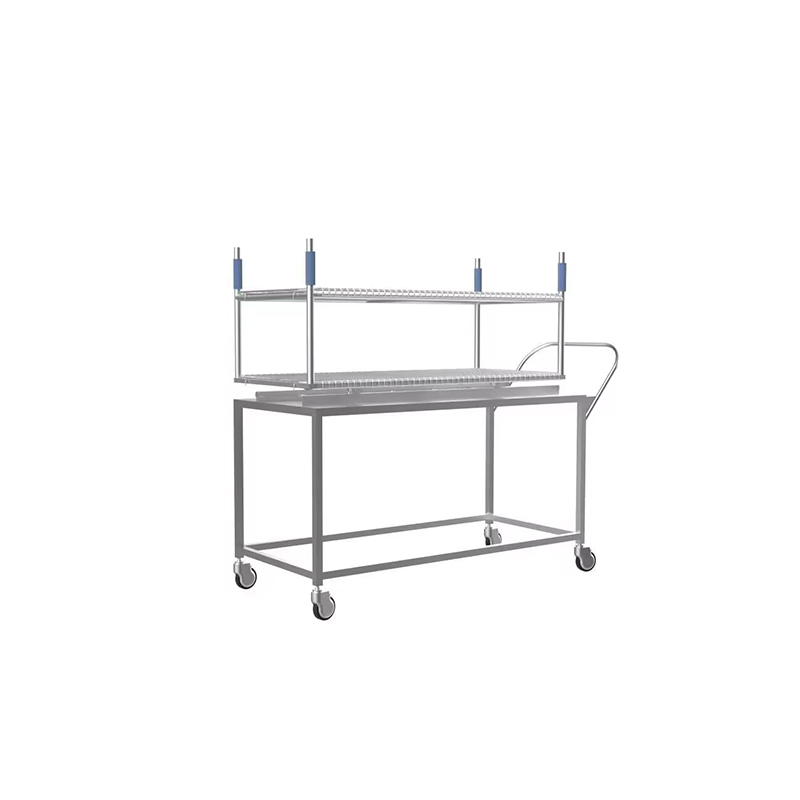

Trolley
Common to all models2 external sterilization trolleys, 1 internal sterilization trolley
Standard Accessories
Common to all modelsTrolleys, printer
Optional Accessories

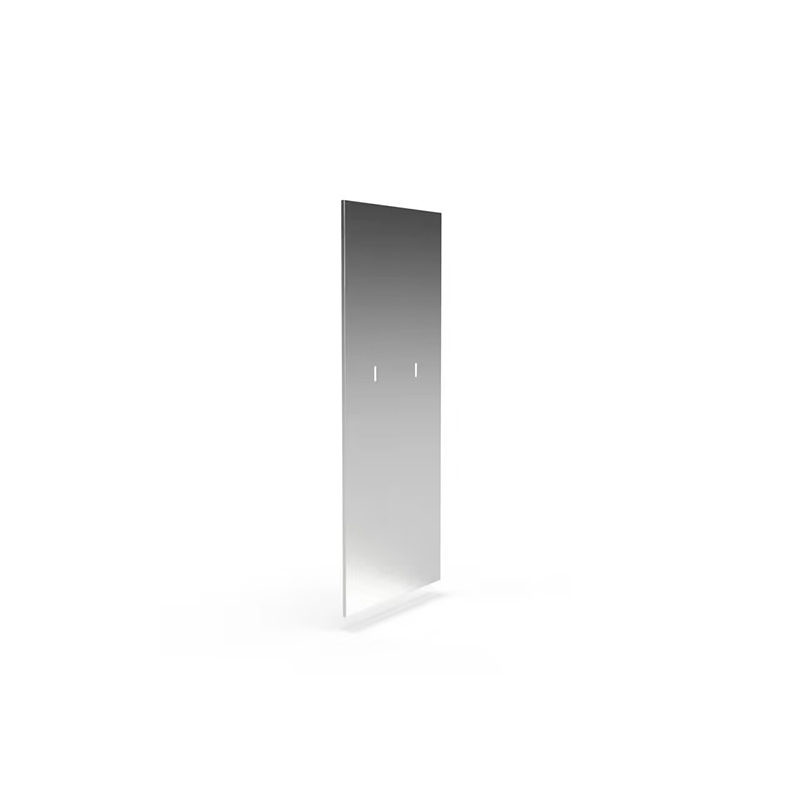

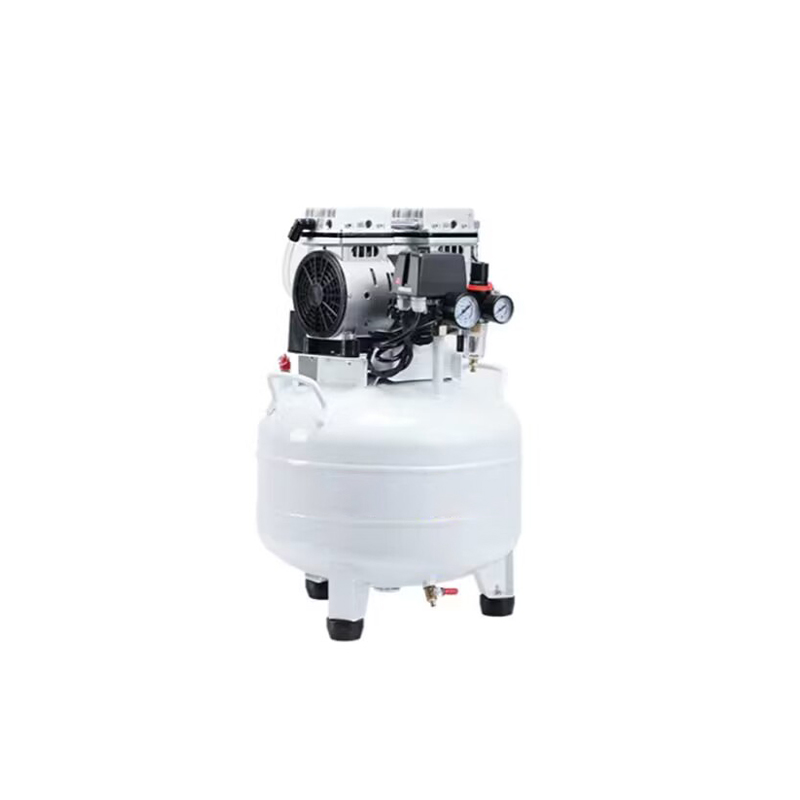

Common to all modelsSheet metal side cover, air compressor, liquid program
Consumption35kVA56kVA
Power Supply
Common to all modelsAC380V, 50Hz(Standard); AC380V, 60Hz(Optional); AC220V, 50/60Hz(Three phase, Optional); Wiring Method: Air switch
External Size(L*W*H)1260*1314*2050mm1760*1314*1970mm
Net Weight1035kg1200kg
Package Size(L*W*H)Main instrument: 1500*1424*2360mm; Trolleys: 1550*630*1900mmMain instrument: 2000*1424*2295mm; Trolleys: 2050*630*1900mm
Gross WeightMain instrument: 1220kg Trolleys: 150kgMain instrument: 1440kg Trolleys: 170kg

Photography and technical data supplied by BIOBASE.
