Photography and technical data supplied by: BIOBASE · 2 images.

Water purifiers

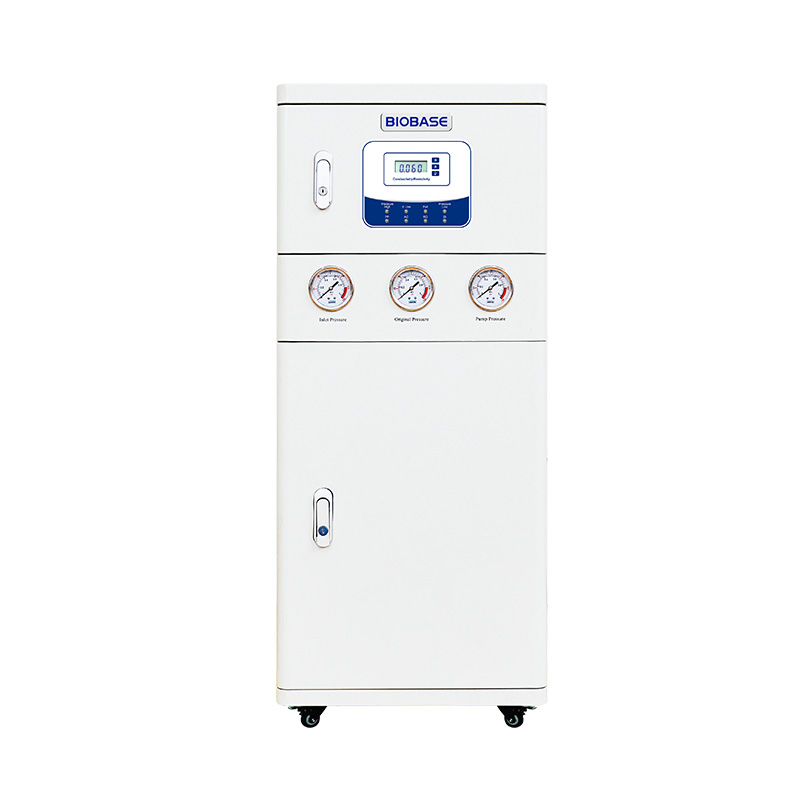

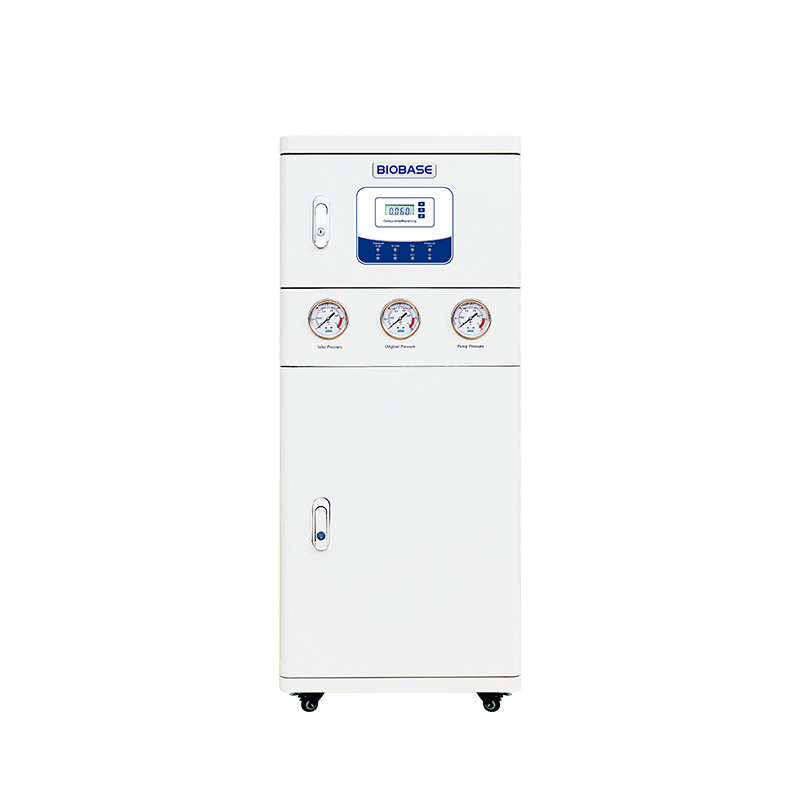

Laboratory Water Purifier 60L/H 80L/H 100L/H

SCSJ-II-60 L / SCSJ-II-60LZ / SCSJ-II-80 L / SCSJ-II-100 L

The Laboratory Water Purifier is an advanced water purification system designed to provide high-purity water for critical laboratory applications.

Key features

  • Continuous purified-water production
  • Quality selected by application
  • Output-parameter monitoring
Made to orderPrice on request
Manufacturer
BIOBASE
Request a quote
Reply within 24 hoursValidated selection and configurationDelivery to the UK, all European countries, USA, Canada, Mexico and South America.

01 / Accessories

Available accessories

Included accessories

  • Main body
  • 50Lwater bucket
  • Accessory box ·
  • 80Lwater bucket
  • Accessory box

Final contents, accessory compatibility and availability are confirmed in the quotation for the selected model.

02 / LaboratoriX technical datasheet

LaboratoriX technical datasheet

Technical parameters consolidated from the manufacturer documentation. Each column corresponds to one model; shared values are clearly identified. Final configuration, accessories, power supply and applicable documentation are confirmed with the quotation.

ParameterSCSJ-II-60 LSCSJ-II-60LZSCSJ-II-80 LSCSJ-II-100 L
Water Output Type
Common to all modelsRO water outlet*1 and DI water outlet*1
Water Output Speed60 L/H60 L/H80 L/H100 L/H
Purifying Procedure
Common to all modelsPF+AC+RO+DI
Water Supply Requirement
Common to all modelsWhen working, the inlet water pressure is 0.1–0.3Mpa, and the water quality meets the requirements of GB5749, 5–45 °C
Environmental Requirements
Common to all modelsTemperature 15–35 °C Relative Humidity ≤80 %
Purification System
Common to all modelsPP filter*2, Granular activated carbon filter*1, Compressed activated carbon filter*1 Deionization purification column*1300GPD RO membrane*2(SCSJ-II-60 L, SCSJ-II-60LZ, SCSJ-II-80 L) 400GPD RO membrane*2(SCSJ-II-100 L)
DI water Quality
Common to all modelsResistivity · 10–18.25MΩ.cm@25 °C · 10–18.25MΩ.cm@25 °C · 10–18.25MΩ.cm@25 °C · 10–18.25MΩ.cm@25 °C
DI water Quality (2)
Common to all modelsConductivity · 0.055–0.1µs/cm · 0.055–0.1µs/cm · 0.055–0.1µs/cm · 0.055–0.1µs/cm
DI water Quality (3)
Common to all modelsHeavy metal · <0.1ppb · <0.1ppb · <0.1ppb · <0.1ppb
DI water Quality (4)
Common to all modelsParticle · <1/ml · <1/ml · <1/ml · <1/ml
DI water Quality (5)
Common to all modelsBacteria · <0.1cfu/ml · <0.1cfu/ml · <0.1cfu/ml · <0.1cfu/ml
RO water Quality
Common to all modelsIon rejection rate · 96 %~99 % · 96 %~99 % · 96 %~99 % · 96 %~99 %
RO water Quality (2)
Common to all modelsOrganic rejection rate · >99 % · >99 % · >99 % · >99 %
RO water Quality (3)
Common to all modelsParticles and bacteria rejection rate · >99 % · >99 % · >99 % · >99 %
Flow Rate1000 mL/min2500 mL/min2500 mL/min2500 mL/min
Consumption60 W84 W84 W144 W
Power Supply
Common to all modelsAC100–240 V，50/60 Hz
Standard ConfigurationMain body, 50Lwater bucket, accessory box ·Main body, 50Lwater bucket, accessory box ·Main body, 50Lwater bucket, accessory box ·Main body,80Lwater bucket,, accessory box
Instrument Size(W*D*H)
Common to all models400 × 393 × 1002 mm
Package Size(W*D*H) — Instrument490 × 480 × 1095 mm490 × 480 × 1100 mm490 × 480 × 1100 mm950 × 490 × 1100 mm
Package Size(W*D*H) — External Bucket415 × 415 × 700 mm415 × 415 × 700 mm415 × 415 × 700 mm/
Package Size(W*D*H) — Accessory Box680 × 400 × 230 mm675 × 395 × 230 mm675 × 395 × 230 mm675 × 395 × 230 mm
Gross WeightInstrument: 29 kg; External bucket:5 kg; Accessory box:11 kgInstrument: 29 kg; External bucket:5 kg; Accessory box:11 kgInstrument: 29 kg; External bucket:5 kg; Accessory box:11 kgInstrument: 58 kg; Accessory box:12 kg

Technical data supplied by BIOBASE.

MADE-TO-ORDER SUPPLY

Do you need this equipment?

Share the application, configuration, quantity and delivery location. We prepare a tailored proposal with the required documentation.

The information provided will be used only to respond to your request. More privacy information
