Mixing & shaking

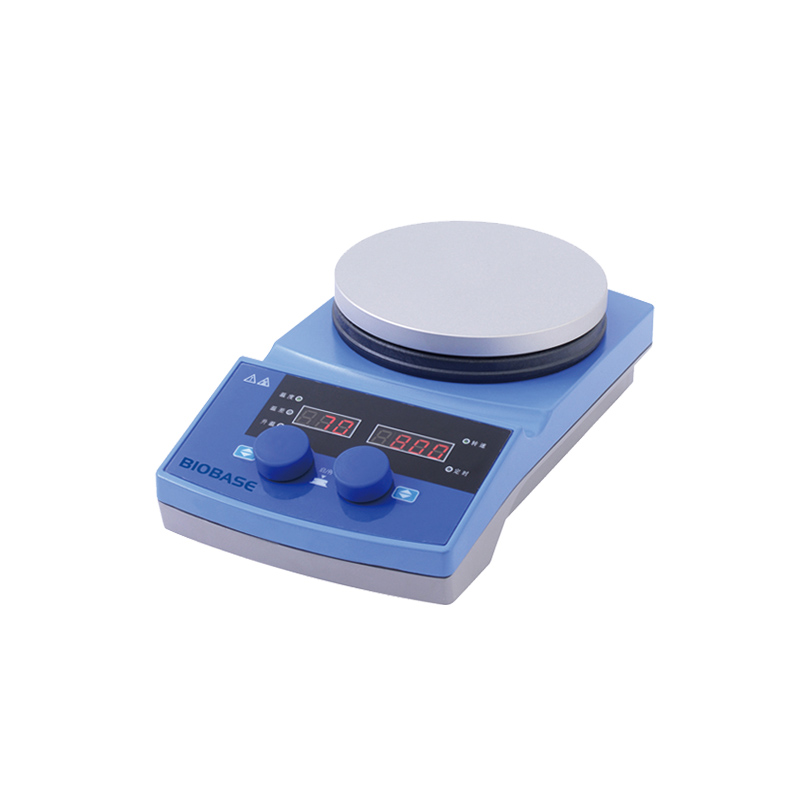

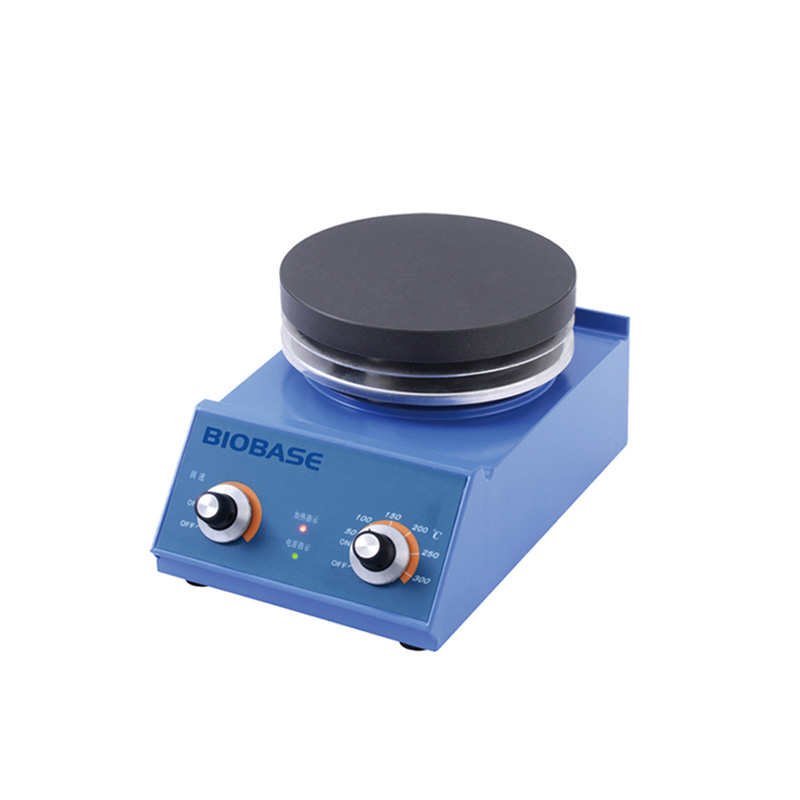

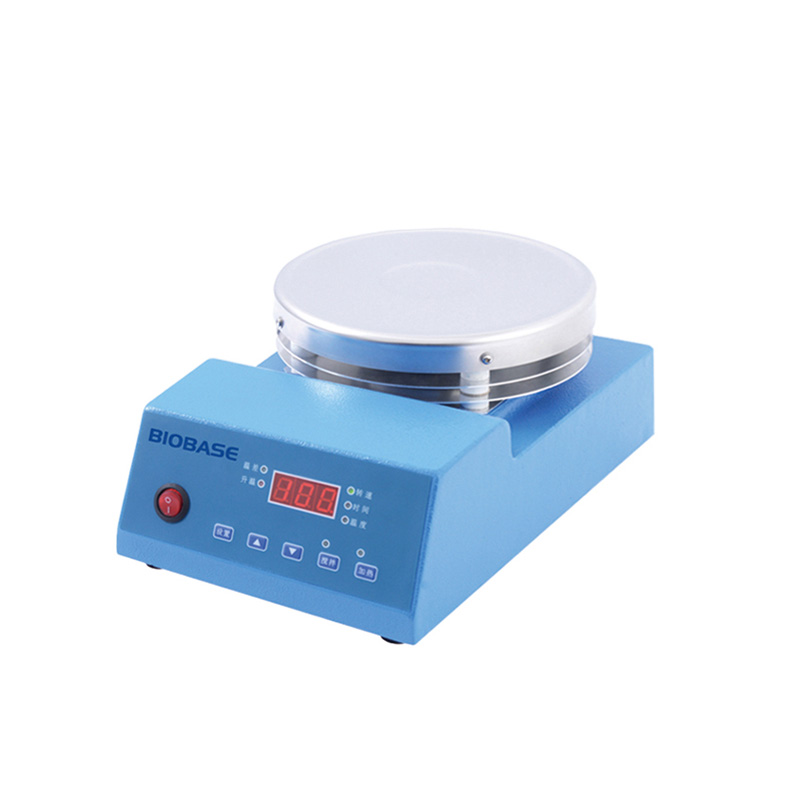

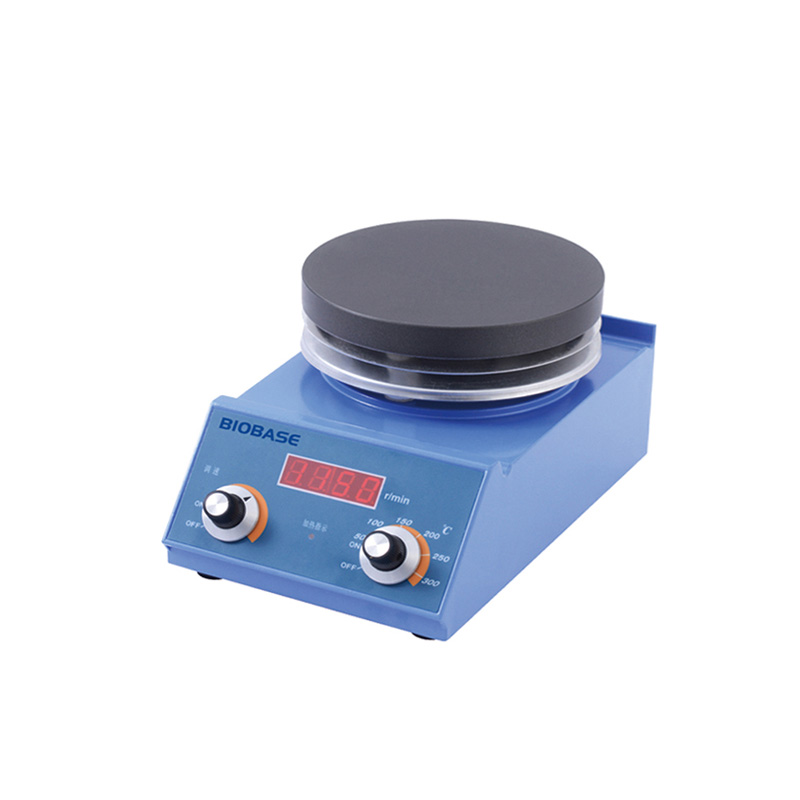

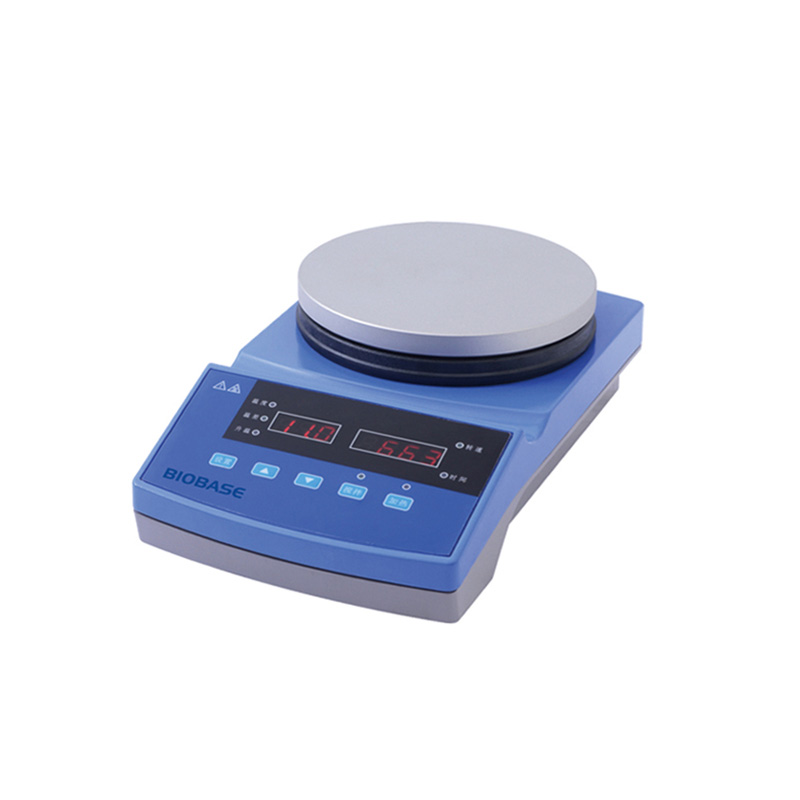

Hotplate Magnetic Stirrer MYP Series
MYP11–2 / MYP11–2 A / SH05–3G / X85–2 / X85–2S
The Hotplate Magnetic Stirrer is a versatile and reliable tool designed for precise heating and stirring in laboratory settings. This advanced device combines robust construction with innovative features to ensure optimal performance and longevity, making it an essential addition to any laboratory.
Key features
- Adjustable shaking speed
- Controlled temperature
- Selectable platforms and holders
- Manufacturer
- BIOBASE
01 / LaboratoriX technical datasheet
LaboratoriX technical datasheet
Technical parameters consolidated from the manufacturer documentation. Each column corresponds to one model; shared values are clearly identified. Final configuration, accessories, power supply and applicable documentation are confirmed with the quotation.
| Parameter | MYP11–2 | MYP11–2 A | SH05–3G | X85–2 | X85–2S |
|---|---|---|---|---|---|
| Work Plate Size | φ145 mm | φ145 mm | φ175 mm | φ145 mm | φ145 mm |
| Work Plate Material | Aluminum alloy | Aluminum alloy | Stainless steel | Aluminum alloy | Aluminum alloy |
| Max. Stirring Capacity | 5 L | 5 L | 10 L | 5 L | 5 L |
| Motor Type | |||||
| Motor Output | 15 W | 15 W | 15 W | 10 W | 10 W |
| Speed Range | |||||
| Digital Display | Speed, temperature, time | Speed, temperature, time | Speed, temperature, time | / | Spee d |
| Control | Button | Knob+Button | Button | Knob | Knob |
| Heating Output | 600 W | 600 W | 800 W | 600 W | 600 W |
| Heating Temp. Range | RT~320 °C | RT~320 °C | RT~250 °C | 50–300 °C | 50–300 °C |
| Temp. Accuracy | ±0.5 °C | ±0.5 °C | ±1 °C | / | / |
| Timing Range | 1–9999 min | 1–9999 min | 1–250 min | / | / |
| Power Supply | Standard: AC220V, 50/60 Hz; Optional: AC110V, 50/60 Hz | Standard: AC220V, 50/60 Hz; Optional: AC110V, 50/60 Hz | AC220V, 50 Hz | AC220V, 50 Hz | AC220V, 50 Hz |
| External Size(W*D*H)mm | 280 × 160 × 90 | 280 × 160 × 90 | 330 × 190 × 130 | 250 × 150 × 135 | 250 × 150 × 135 |
| Package Size(W*D*H)mm | 380 × 300 × 190 | 380 × 300 × 190 | 430 × 330 × 230 | 360 × 290 × 240 | 360 × 290 × 240 |
| Gross Weight(kg) | 4.5 | 4.5 | 7 | 6 | 6 |
