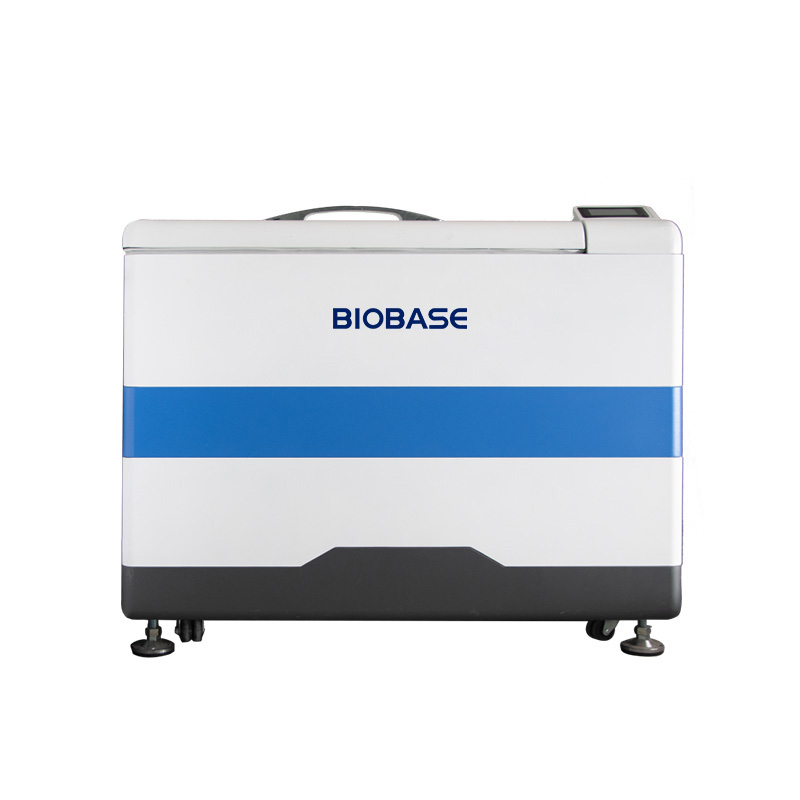

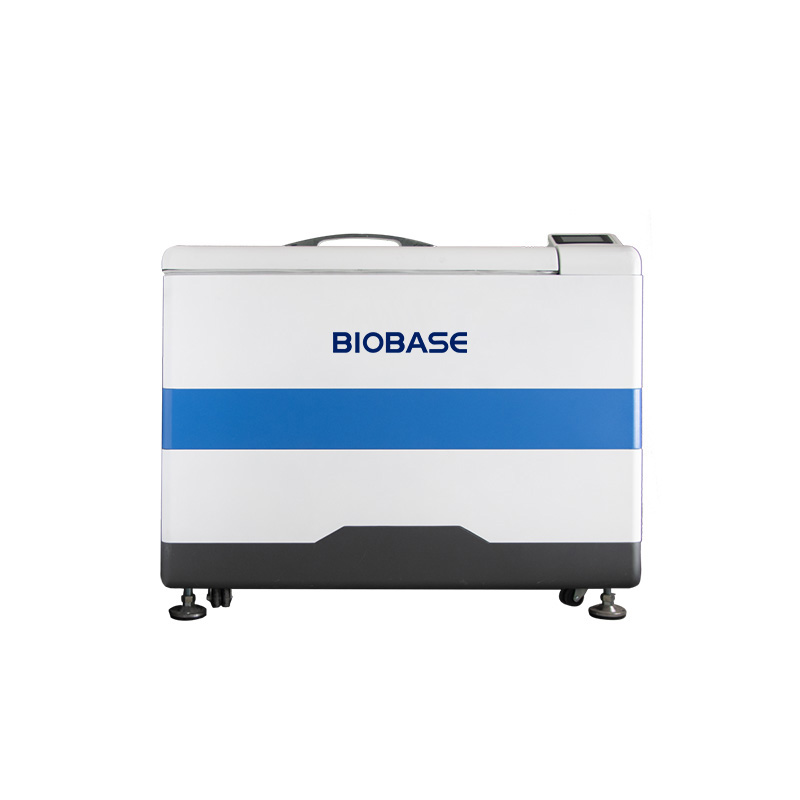

Horizontal Shaking Incubator

BJPX-SW10 / BJPX-SW10-L / BJPX-SW20 / BJPX-SW20-L

Applications: It is used for bacterial culture, fermentation, hybridization, biochemical reaction, enzyme and tissue research with high requirements on temperature and oscillation frequency, used in biological and chemical laboratories, research institutes, etc.

Key features

Adjustable shaking speed
Controlled temperature
Selectable platforms and holders

Made to orderPrice on request

Manufacturer: BIOBASE

Request a quote

Reply within 24 hoursValidated selection and configurationDelivery to the UK, all European countries, USA, Canada, Mexico and South America.

01 / LaboratoriX technical datasheet

LaboratoriX technical datasheet

Technical parameters consolidated from the manufacturer documentation. Each column corresponds to one model; shared values are clearly identified. Final configuration, accessories, power supply and applicable documentation are confirmed with the quotation.

Parameter	BJPX-SW10	BJPX-SW10-L	BJPX-SW20	BJPX-SW20-L
Shaking Amplitude	Common to all models26 mm
Shaking Method	Common to all modelsRotatory type
Display	5-inch LCD	Button display	5-inch LCD	Button display
Temp. Control Range	RT+5–60 °C	RT+5–60 °C	4–60 °C	4–60 °C
Shaking Plate Size	Common to all models900 × 470 mm
Standard	Common to all modelsFlask clamps 250 mL28/500 mL24/1000 mL15/2000 mL8/3000 mL6/5000 mL6. If no request, 500 mL*24 is default
Rotation Range r/min	Common to all models30–300
Rotation Precision r/min	Common to all models±1
Temp. Resolution ℃	Common to all models0.1
Temp. Fluctuation ℃	Common to all models≤±0.5
Temp. Uniformity ℃	Common to all models≤±1（at 37 °C）
Ambient Temp. ℃	Common to all models15–35 °C
Illumination	Common to all models1 pc of light
UV	Common to all models2 pcs of UV lights
Chamber Size mm	Common to all models970 × 550 × 460
External Size mm	Common to all models1280 × 760 × 1030
Curve Programming Set	Common to all modelsRepeat, pace, eight curve programming setting
Time Set Range	Common to all models0–999 min
Power	Common to all models1500w
Power Supply	Common to all modelsStandard: 220 V 50/60 Hz; Optional: 110 V 50/60 Hz
Packing Size	Common to all models1340 × 880 × 1212 mm
Gross Weight	Common to all models330 kg

Parameter	BJPX-SW10	BJPX-SW10-L	BJPX-SW20	BJPX-SW20-L
Max Flask Qty	Common to all models50 mL · 95 · 95 · 95 · 95
Max Flask Qty (2)	Common to all models100 mL · 64 · 64 · 64 · 64
Max Flask Qty (3)	Common to all models150 mL · 42 · 42 · 42 · 42
Max Flask Qty (4)	Common to all models250 mL · 40 · 40 · 40 · 40
Max Flask Qty (5)	Common to all models500 mL · 28 · 28 · 28 · 28
Max Flask Qty (6)	Common to all models1000 mL · 15 · 15 · 15 · 15
Max Flask Qty (7)	Common to all models2000 mL · 8 · 8 · 8 · 8
Max Flask Qty (8)	Common to all models3000 mL · 6 · 6 · 6 · 6
Max Flask Qty (9)	Common to all models5000 mL · 6 · 6 · 6 · 6
Universal Spring Rack Qty	Common to all models1
Tube Rack Qty	Common to all models3
96 Elisa Plate	Common to all models20
Rod Type Shaking Plate	Common to all models2

MADE-TO-ORDER SUPPLY

Do you need this equipment?

Share the application, configuration, quantity and delivery location. We prepare a tailored proposal with the required documentation.
