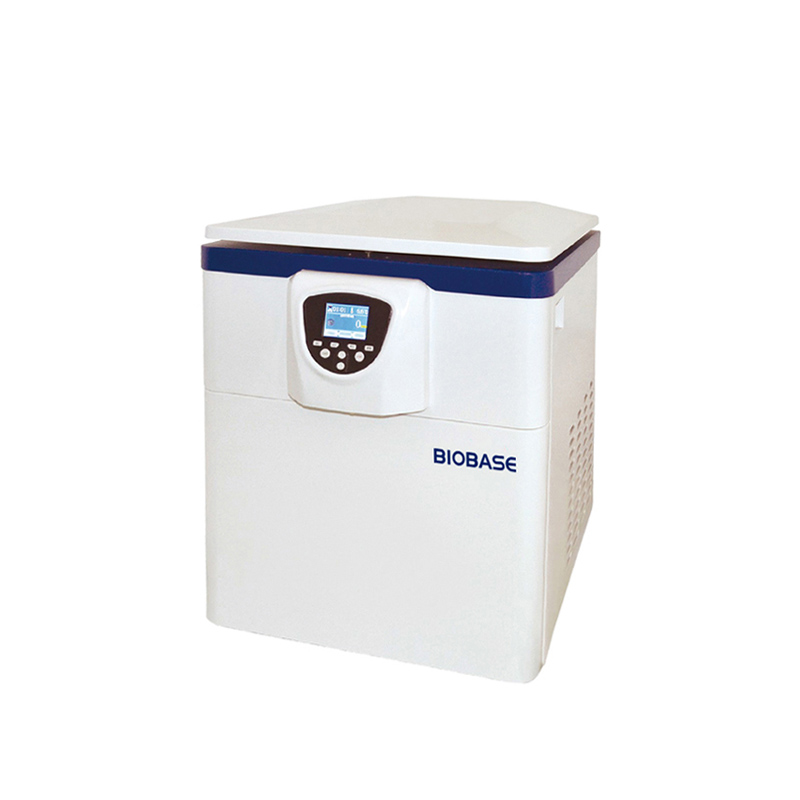

High Speed Refrigerated Centrifuge

BKC-VH20RII

High Speed Refrigerated Centrifuge: sample separation with configurations suited to different volumes and speeds. Available capacity, functions and configuration depend on the selected model.

Key features

Controlled speed and centrifugal force
Rotors matched to the vessel
Benchtop and refrigerated formats

Made to orderPrice on request

Manufacturer: BIOBASE

Request a quote

Reply within 24 hoursValidated selection and configurationDelivery across mainland Portugal, Madeira, the Azores, and all European countries.

01 / LaboratoriX technical datasheet

LaboratoriX technical datasheet

Technical parameters consolidated from the manufacturer documentation. Each column corresponds to one model; shared values are clearly identified. Final configuration, accessories, power supply and applicable documentation are confirmed with the quotation.

Parameter	BKC-VH20RII
Max. Capacity	4 × 750 mL
Max. Speed	20600 rpm
Max. RCF	29400xg
Standard Rotor	12 × 1.5/2.0 mL
Speed Precision	±50 rpm
Refrigeration System	CFC-free (R404a)
Temp. Range	- 20 °C ~ 40 °C
Temp. Precision	±1 °C
Control and Driven System	Frequency motor, micro control, direct driver
Timing Range	0–99h59min
Noise	≤ 65dB
Identify Rotor	Automatic
Consumption	2.0KW
Power Supply	AC110/220 V, 50/60HZ
External Size(WDH) mm	710 × 560 × 770 mm
Package Size(WDH) mm	885 × 705 × 1195
Net/Gross Weight(kg)	160/218
Rotor Angle Rotor	Capacity: 12 × 1.5/2.0 mL · Speed(rpm): 20600 · RCF(xg): 29400 · Rotor: Angle Rotor · Capacity: 8 × 15 mL · Speed(rpm): 12000 · RCF(xg): 14800
Rotor Swing Rotor	Capacity: 4 × 750 mL/4 × 500 mL · Speed(rpm): 4000 · RCF(xg): 3500 · Rotor: Angle Rotor · Capacity: 6 × 50 mL · Speed(rpm): 12000 · RCF(xg): 13800
Rotor Swing Rotor (2)	Capacity: Available adaptor: 4 × 250/300 mL,4 × 8 × 15 mL, 4 × 12 × 10 mL,4 × 3 × 50 mL, 4 × 19 × 5 mL (vacuum tube) · Speed(rpm): 4000 · RCF(xg): 3580 · Rotor: Angle Rotor · Capacity: 8 × 50 mL · Speed(rpm): 10000 · RCF(xg): 10500
Rotor Swing Rotor (3)	Capacity: Available adaptor: 4 × 250/300 mL,4 × 8 × 15 mL, 4 × 12 × 10 mL,4 × 3 × 50 mL, 4 × 19 × 5 mL (vacuum tube) · Speed(rpm): 4000 · RCF(xg): 3580 · Rotor: Angle Rotor · Capacity: 4 × 100 mL · Speed(rpm): 10000 · RCF(xg): 10500
Rotor Swing Rotor (4)	Capacity: Available adaptor: 4 × 250/300 mL,4 × 8 × 15 mL, 4 × 12 × 10 mL,4 × 3 × 50 mL, 4 × 19 × 5 mL (vacuum tube) · Speed(rpm): 4000 · RCF(xg): 3580 · Rotor: Angle Rotor · Capacity: 6 × 100 mL · Speed(rpm): 11000 · RCF(xg): 14520
Rotor Angle Rotor (2)	Capacity: 24 × 1.5/2.0 mL · Speed(rpm): 14000 · RCF(xg): 18180 · Rotor: Angle Rotor · Capacity: 6 × 250 mL · Speed(rpm): 8000 · RCF(xg): 9200
Rotor Angle Rotor (3)	Capacity: 12 × 5/10 mL · Speed(rpm): 14000 · RCF(xg): 18800 · Rotor: Microplate · Capacity: 2 × 2 × 96 well · Speed(rpm): 4000 · RCF(xg): 2360
Rotor Angle Rotor (4)	Capacity: 12 × 5/10 mL · Speed(rpm): 14000 · RCF(xg): 18800 · Rotor: Microplate · Capacity: 4 × 2 × 96 well · Speed(rpm): 4000 · RCF(xg): 2910

MADE-TO-ORDER SUPPLY

Do you need this equipment?

Share the application, configuration, quantity and delivery location. We prepare a tailored proposal with the required documentation.
