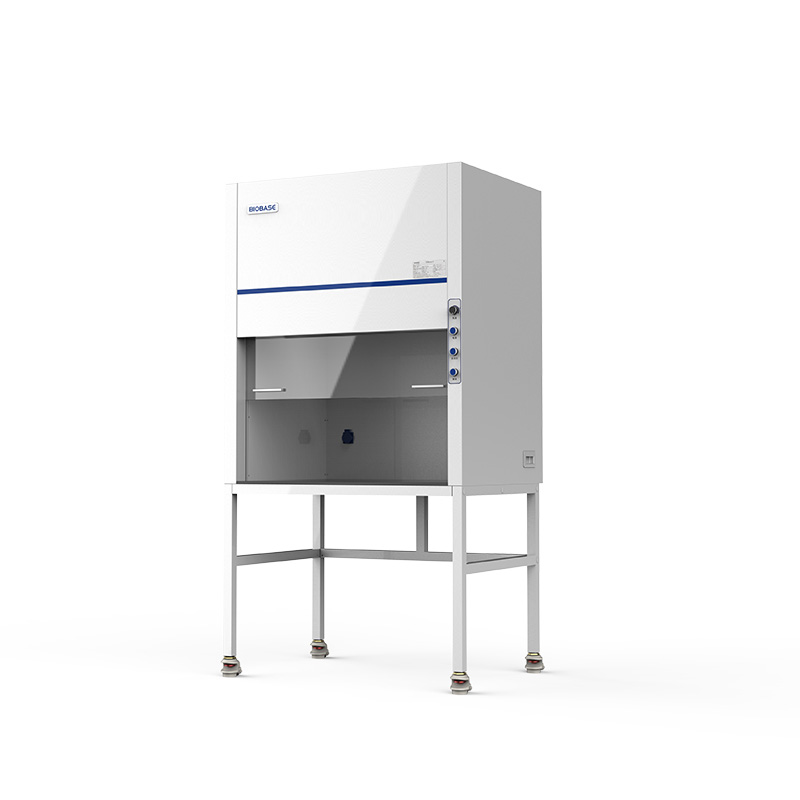

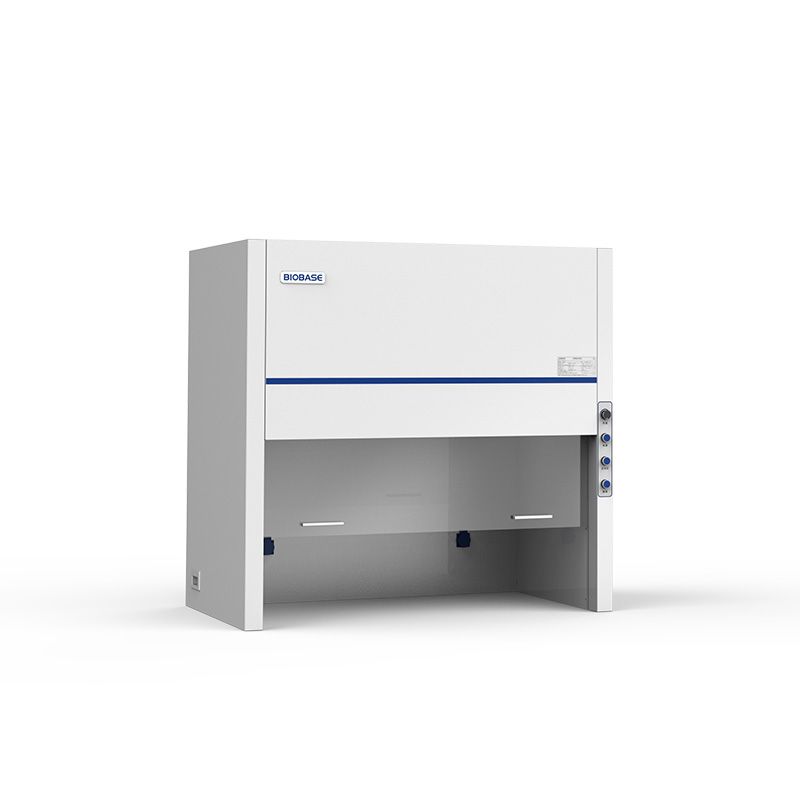

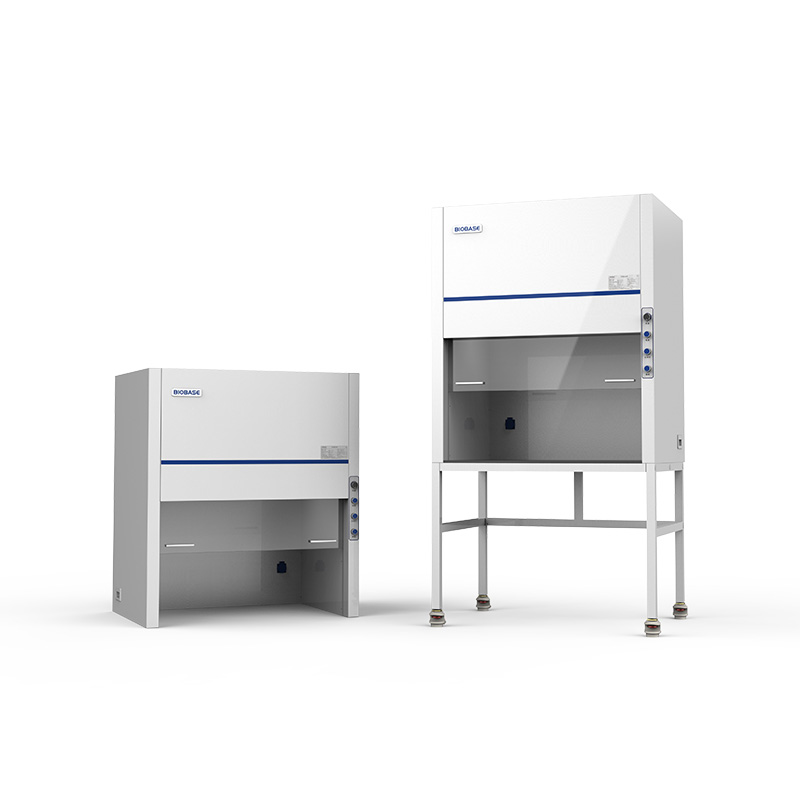

Ducted Fume Hood

BK-FH1100 / BK-FH1200 / BK-FH1300 / BK-FH1500 / BK-FH1800

The Ducted Fume Hood is a robust laboratory safety device designed to capture and remove hazardous fumes, vapors, and particles during chemical experiments or industrial processes.

Key features

Ducted or filtered vapour extraction
Operator protection
Materials suited to chemical agents

Made to orderPrice on request

Manufacturer: BIOBASE

Request a quote

Reply within 24 hoursValidated selection and configurationDelivery to the UK, all European countries, USA, Canada, Mexico and South America.

01 / Accessories

Available accessories

Included accessories

LED lamp

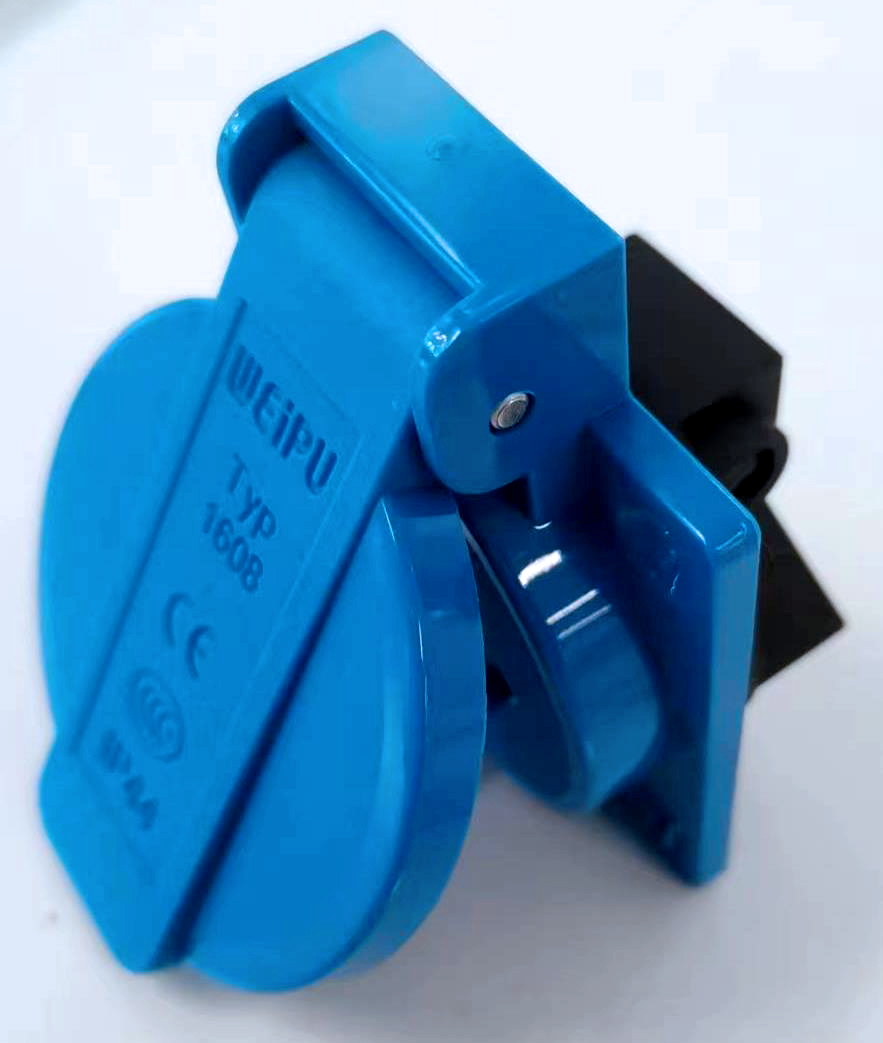

Water proof socket

Optional accessories

UV lamp
Water tap
Activated carbon filter
HEPA filter
Chemical filter

Final contents, accessory compatibility and availability are confirmed in the quotation for the selected model.

02 / LaboratoriX technical datasheet

LaboratoriX technical datasheet

Technical parameters consolidated from the manufacturer documentation. Each column corresponds to one model; shared values are clearly identified. Final configuration, accessories, power supply and applicable documentation are confirmed with the quotation.

Parameter	BK-FH1100	BK-FH1200	BK-FH1300	BK-FH1500	BK-FH1800
Number of Users	Single	1–2	1–2	1–2	1–3
Rated Power	Common to all models125 W(Not including socket load power, load power cannot exceed 500 W)
Power Supply	Common to all models220 V±10 %, 50 Hz; 110±10 %V, 60 Hz(Optional)
Exhaust Volume	Common to all models1850m³/h
Air Velocity	Common to all models0.3m/s~0.8m/s
Noise	Common to all models≤65dB(A)
LED Lamp	12 W	12 W	12 W	16 W	16 W
Max Opening	Common to all models490 mm(Integral Type)
Tabletop Height	Common to all models810 mm(Integral Type)
Standard Accessory	Common to all modelsLED lamp, water proof socket
Optional Accessory	Common to all modelsUV lamp, water tap, active carbon filter, HEPA filter, chemical filter
Net Weight — Desktop Type	85 kg	89 kg	93 kg	102 kg	114 kg
Net Weight — Integral Type	126 kg	132 kg	138 kg	151 kg	170 kg
External Size(WDH)	Common to all modelsDesktop Type · 1100 × 800 × 1260 mm · 1200 × 800 × 1260 mm · 1300 × 800 × 1260 mm · 1500 × 800 × 1260 mm · 1800 × 800 × 1260 mm
External Size(WDH) (2)	Common to all modelsIntegral Type · 1100 × 800 × 2060 mm · · 1200 × 800 × 2060 mm · 1300 × 800 × 2060 mm · 1500 × 800 × 2060 mm · 1800 × 800 × 2060 mm
Internal Size(WDH)	980 × 660 × 847 mm	1080 × 660 × 847 mm	1180 × 660 × 847 mm	1380 × 660 × 847 mm	1680 × 660 × 847 mm
Package Size(W×D×H — Desktop Type	1240 × 955 × 1420 mm	1340 × 955 × 1420 mm	1440 × 955 × 1420 mm	1660 × 975 × 1485 mm	1960 × 975 × 1485 mm
Package Size(W×D×H — Integral Type	1240 × 1110 × 1420 mm	1340 × 1110 × 1420 mm	1440 × 1110 × 1420 mm	1660 × 1130 × 1485 mm	1960 × 1130 × 1485 mm
Gross Weight — Desktop Type	110 kg	116 kg	123 kg	182 kg	204 kg
Gross Weight — Integral Type	153 kg	161 kg	170 kg	234 kg	263 kg
