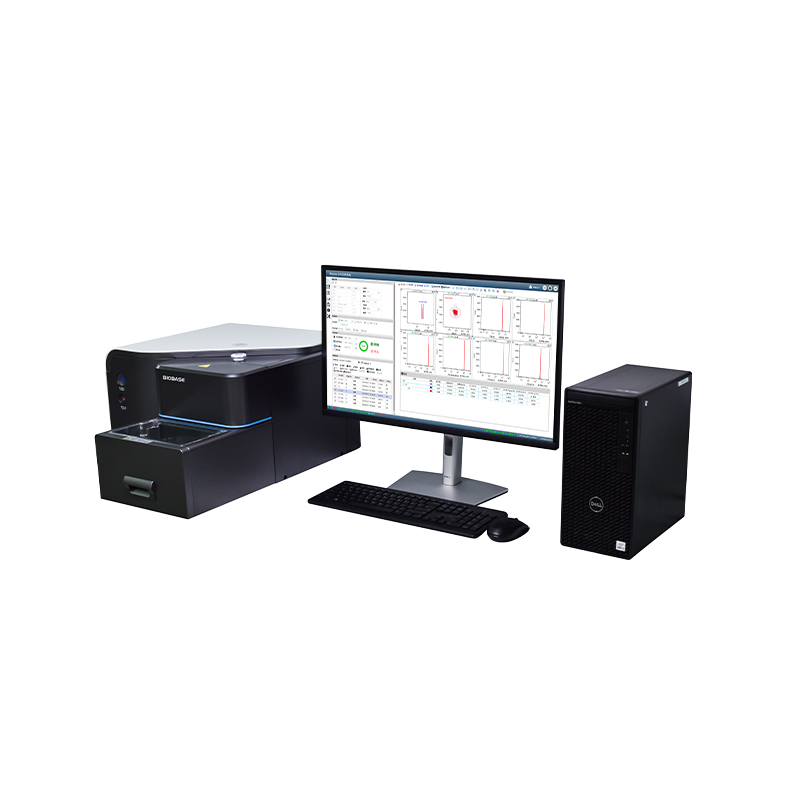

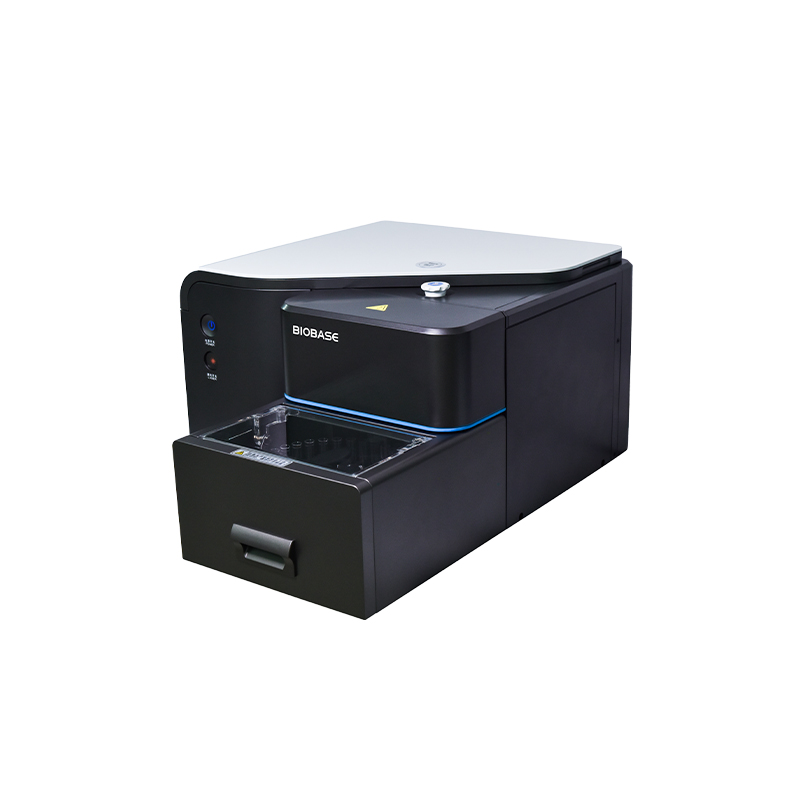

Flow Cytometer

FlowCyte B7H / FlowCyte B7

Flow cytometer is a high-precision analytical instrument widely used in life sciences, medicine, immunology, and other fields. It integrates fluid mechanics, optics, electronics, and computer technology to rapidly analyze and sort individual cells (or particles) in a liquid suspension.

Key features

Multiparameter cell analysis
Scatter and fluorescence detection
Optical configuration matched to the application

Made to orderPrice on request

Manufacturer: BIOBASE

Request a quote

Reply within 24 hoursValidated selection and configurationDelivery to the UK, all European countries, USA, Canada, Mexico and South America.

01 / LaboratoriX technical datasheet

LaboratoriX technical datasheet

Technical parameters consolidated from the manufacturer documentation. Each column corresponds to one model; shared values are clearly identified. Final configuration, accessories, power supply and applicable documentation are confirmed with the quotation.

Parameter	FlowCyte B7H	FlowCyte B7
Item Lymphocyte Subset T Analysis	Common to all modelsRecommended Reagent: CD45 CD4 CD3 CD8 · Application Department: Clinical Laboratory Infectious Disease Department Oncology Department Department of Rheumatology and Immunology Department of Pediatrics Blood Specialty
Item Lymphocyte Subset T/B/NK Analysis	Common to all modelsRecommended Reagent: CD45 CD3 CD16 CD56 CD19 · Application Department: Clinical Laboratory Infectious Disease Department Oncology Department Department of Rheumatology and Immunology Department of Pediatrics Blood Specialty
Item Absolute Count of CD4+T Lymphocyte	Common to all modelsRecommended Reagent: CD45 CD4 CD3 CD8 · Application Department: CDC (AIDS) Infectious Disease Department
Item Cytokine Th1/Th2/Th17 Analysis	Common to all modelsRecommended Reagent: Th1: IL-2, IFN-γ, TNF-α Th2: IL-4, IL-6, IL-10 Th17: IL-17 · Application Department: Infectious Disease Department Oncology Department Department of Rheumatology and Immunology Department of Organ Transplantation Respiratory Department
Item HLA-B27 Detection for AS	Common to all modelsRecommended Reagent: HLA-B27-FITC HLA-B7-PE IgG2a-FITC IgG1-PE · Application Department: Department of Rheumatology and Immunology Orthopedics
Item DFI Analysis	Common to all modelsRecommended Reagent: Acridine orange (AO) Staining Solution · Application Department: Reproductive Department Infertility Department Reproductive Medicine Centre
Laser	Common to all models488 nm solid（60mW）
Detector	Common to all modelsFSC, SSC, FL1-FL5
Fluorescence Channel	Common to all modelsFL1:525/50（FITC） FL2:585/40（PE） FL3:630/30（PE-Texas Red/ECD/PI） FL4:697/60（PerCP/PE-Cy5/PE-Cy5.5） FL5:780/60（PE-Cy7）
Fluorescence Sensitivity	Common to all modelsFITC≤50 MESF, PE≤30MESF
Fluorescence Linearity	Common to all models≥0.99
FSC Sensitivity	Common to all models≤1 µm
Test Particle Size	Common to all models0.2–50 µm
Carry Over	Common to all models≤0.5 %
Instrument CV	Common to all modelsFSC and all FL channel CV less than 2 %
FSC and SSC CV	Common to all modelsCan separate red blood cells and platelet, can separate white blood cells into 3 groups
Test Speed	Common to all models≥46000 cells/s
Minimum Sample Vol	Common to all models90 µL
Measure Range	Common to all modelsMaximum Support 10⁷
Threshold	Common to all modelsDouble threshold, minimum cells fraction
Fluorescence Compensation	Common to all modelsSupport auto online compensation, offline compensation and visualized compensation
Item Template	Common to all modelsSupport Item template, acquisition conditions/fluorescence compensation one-click use
Intake Method	Common to all modelsManual intake Rotary wheel auto-sampling with auto-mixing function:32tests/wheel
Liquid Storage Station	Common to all modelsSheath bottle, waste bottle, shutdown liquid bottle 2 L, cleaning liquid bottle 0.5 L
Software	Common to all modelsEnglish/Chinese
PC	Common to all modelsDell（CPU i5/8G DDR4/1T hard disk）+Dell 27 inches monitor
Power Supply	Common to all modelsAC220/110 V±10 %, 50/60 Hz
Auto-sampler	/	32-postions autosampler(Stanndard)
External Size(WDH)	430 × 500 × 330 mm	650 × 500 × 330 mm
Net Weight	30 kg	35 kg
Packing Size(WDH)	Common to all modelsMain Instrument: 860 × 635 × 648 mm Accessories: 860 × 680 × 810 mm Reagent: 405 × 270 × 400 mm
Gross Weight	Common to all modelsMain Instrument: 56 kg Accessories: 54 kg Reagent: 16 kg
