Laboratory analysis

Fat Extractor

BKXET02C / BKXET04C / BKXET06C

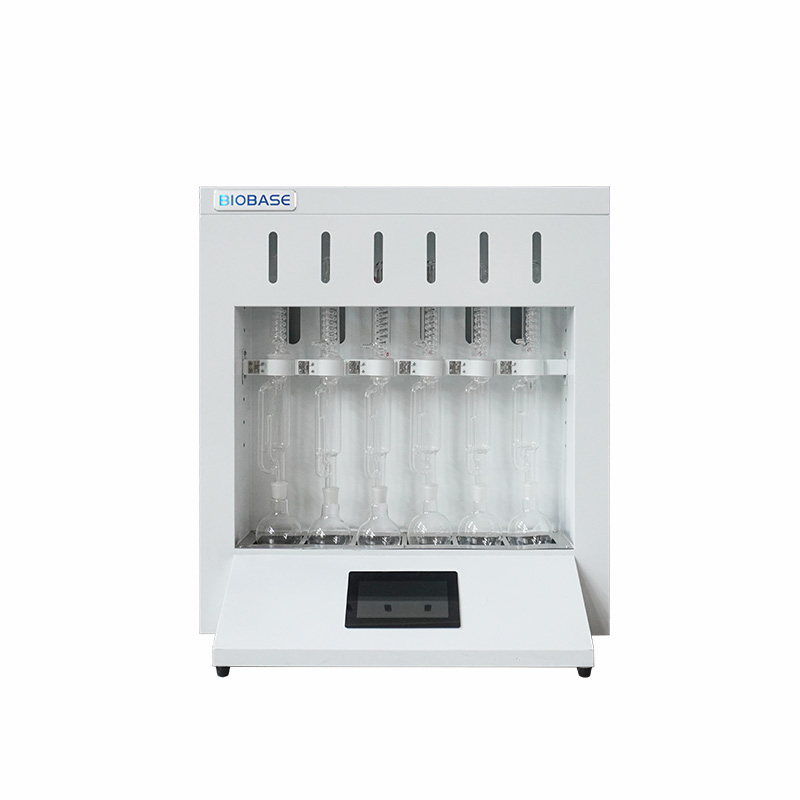

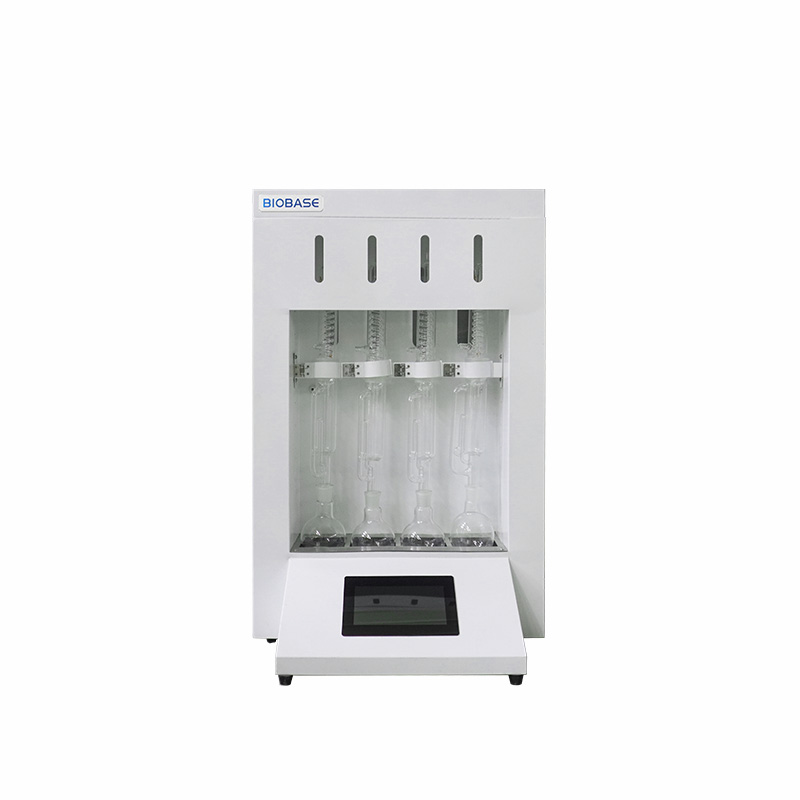

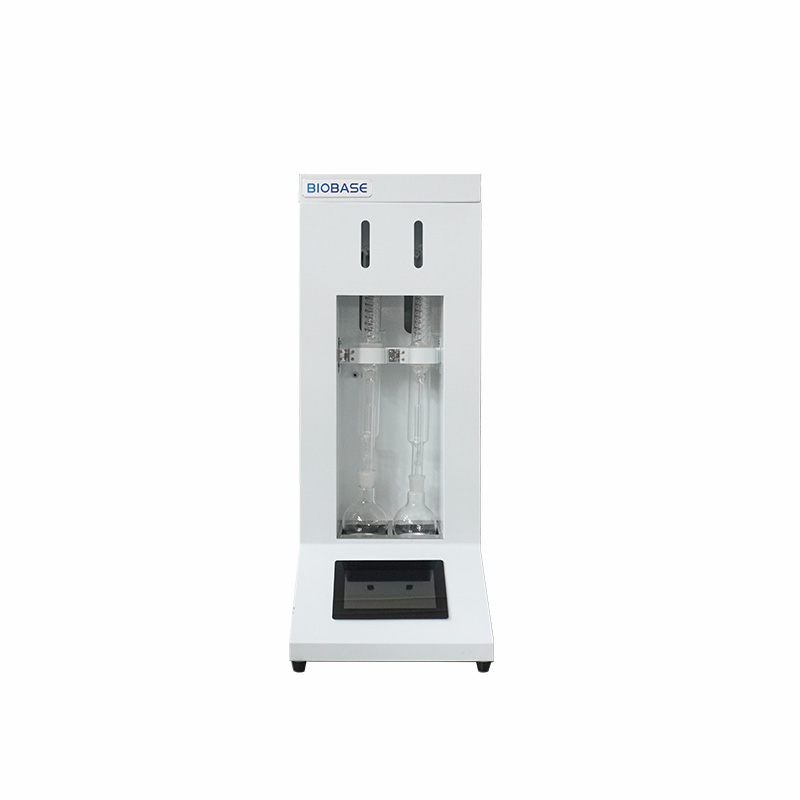

Fat Extractor(also known as automatic Soxhlet extractor, crude fat analyzer), mainly by heating extraction, solvent recovery, cooling three parts. Each heating tank can adjust the heating temperature and time independently according to the different boiling point of the reagent, and the sample is repeatedly soaked and extracted by the reagent to achieve the purpose of rapid extraction.

Key features

  • Digital measurement
  • Method matched to the parameter
  • Repeatable results and data capture
Made to orderPrice on request
Manufacturer
BIOBASE
Request a quote
Reply within 24 hoursValidated selection and configurationDelivery across mainland Portugal, Madeira, the Azores, and all European countries.

01 / LaboratoriX technical datasheet

LaboratoriX technical datasheet

Technical parameters consolidated from the manufacturer documentation. Each column corresponds to one model; shared values are clearly identified. Final configuration, accessories, power supply and applicable documentation are confirmed with the quotation.

ParameterBKXET02CBKXET04CBKXET06C
Capacity2pcs4pcs6pcs
Sample Weight
Common to all models0–100 g
Temp. Range
Common to all modelsRT.~250 °C
Solvent Cup Volume
Common to all models250 mL
Power Supply
Common to all modelsAC220V, 50/60 Hz(Standard); 110 V, 50/60 Hz(Optional)
Heating Way
Common to all modelsDry independent heating
Device
Common to all modelsCondensing recovery device, overheating protection device
External Size(W*D*H)330 × 410 × 850 mm532 × 410 × 850 mm750 × 410 × 850 mm
Package Size(W*D*H)435 × 515 × 995 mm640 × 515 × 995 mm855 × 515 × 995 mm
Net Weight18 kg23 kg31 kg
Gross Weight23 kg28 kg37.5 kg

Technical data supplied by BIOBASE.
