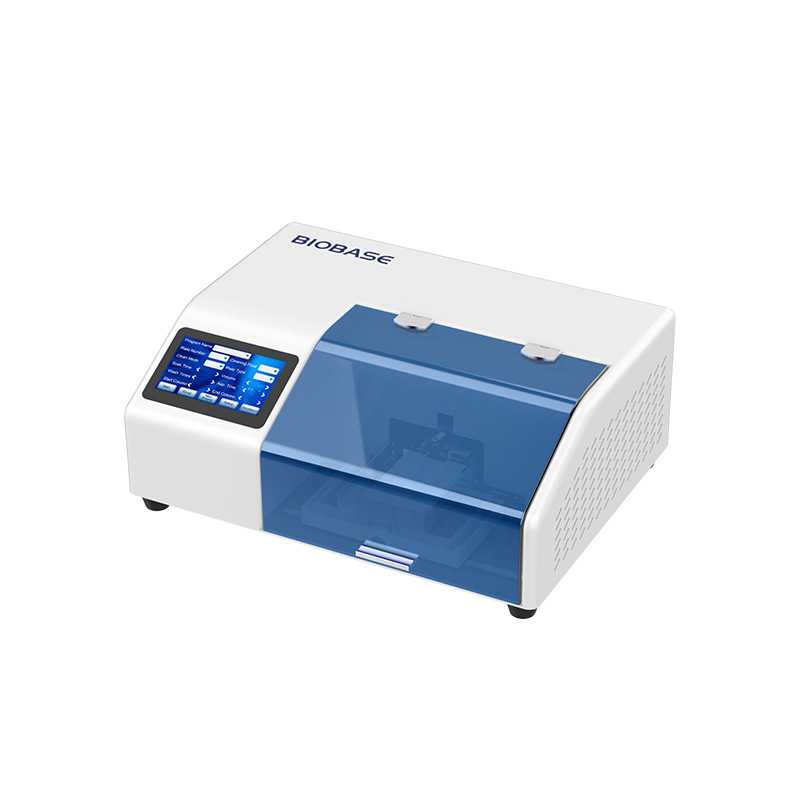

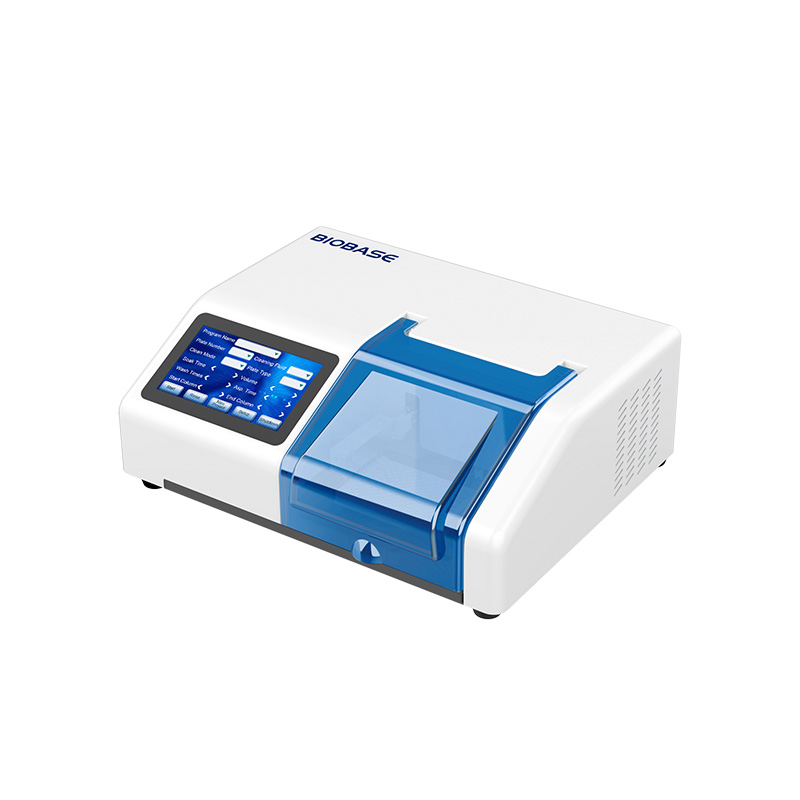

Elisa Microplate Washer

BK-9622 / BK-9613

The microplate washer is a medical device specially used for cleaning the microplate, and it is generally used in conjunction with the microplate reader. It is mainly used to clean some residues after the detection of the ELISA plate, thereby reducing the error caused by residues in the subsequent detection process.

Key features

Automated microplate processing
Assay-matched reading and washing
Configurations for different workloads

Made to orderPrice on request

Manufacturer: BIOBASE

Request a quote

Reply within 24 hoursValidated selection and configurationDelivery to the UK, all European countries, USA, Canada, Mexico and South America.

01 / LaboratoriX technical datasheet

LaboratoriX technical datasheet

Technical parameters consolidated from the manufacturer documentation. Each column corresponds to one model; shared values are clearly identified. Final configuration, accessories, power supply and applicable documentation are confirmed with the quotation.

Parameter	BK-9622	BK-9613
Cleaning Head	8 channels and 12 channels	96 pins, single row controllable
Microplate Types	Common to all modelsFour kinds, flat bottom, U bottom, V bottom, round bottom
Average Residue	<1µl(per hole)	<0.7µl(per hole)
Liquid Suction Time	Common to all models0.1–999.9 seconds adjustable, with an interval of 0.1 seconds
Line Flush Time	Common to all models1–999 seconds, adjustable
Washing Programs	Common to all modelsUp to 200 programs
Display	Common to all models7-inch touch display
Standard Bottles	Common to all models5pcs: 1.5 L, 1pc; 4 L, 4pcs
Liquid Injection Channels	Common to all models3 (2 types of lotion and 1 type of distilled water)
Cleaning Needle Position	Common to all models6 types (horizontal, left, middle, right, bottom, hole spacing)
Consumption	80 W	350 W
Power Supply	Common to all modelsAC220V±10 %, 50/60 Hz; AC110V±10 %, 60 Hz
Packing Size(WDH)	720 × 480 × 400 mm	740 × 675 × 562 mm
Gross Weight	20 kg	42 kg

MADE-TO-ORDER SUPPLY

Do you need this equipment?

Share the application, configuration, quantity and delivery location. We prepare a tailored proposal with the required documentation.
