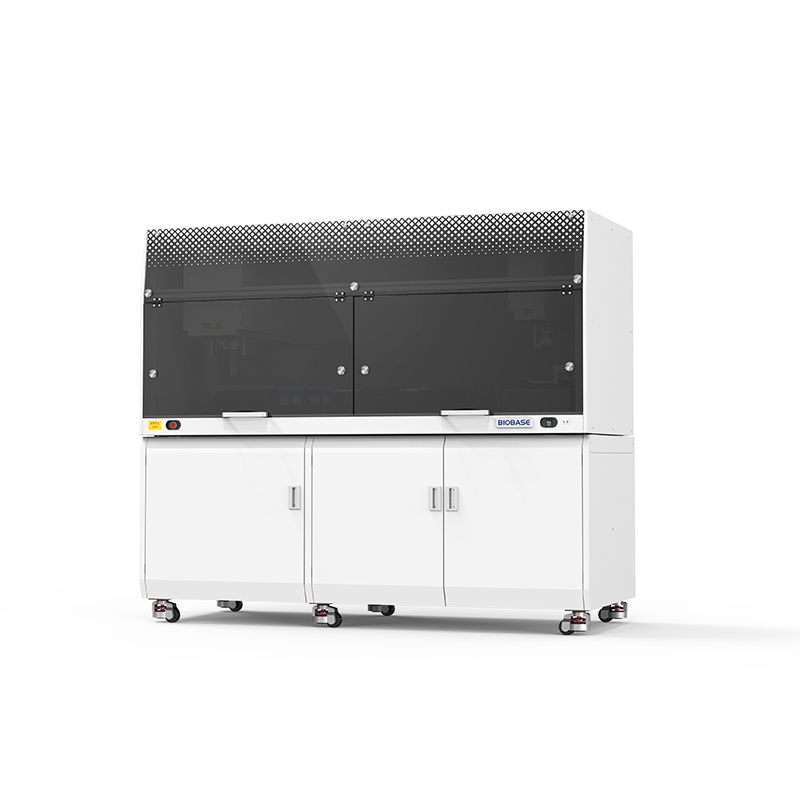

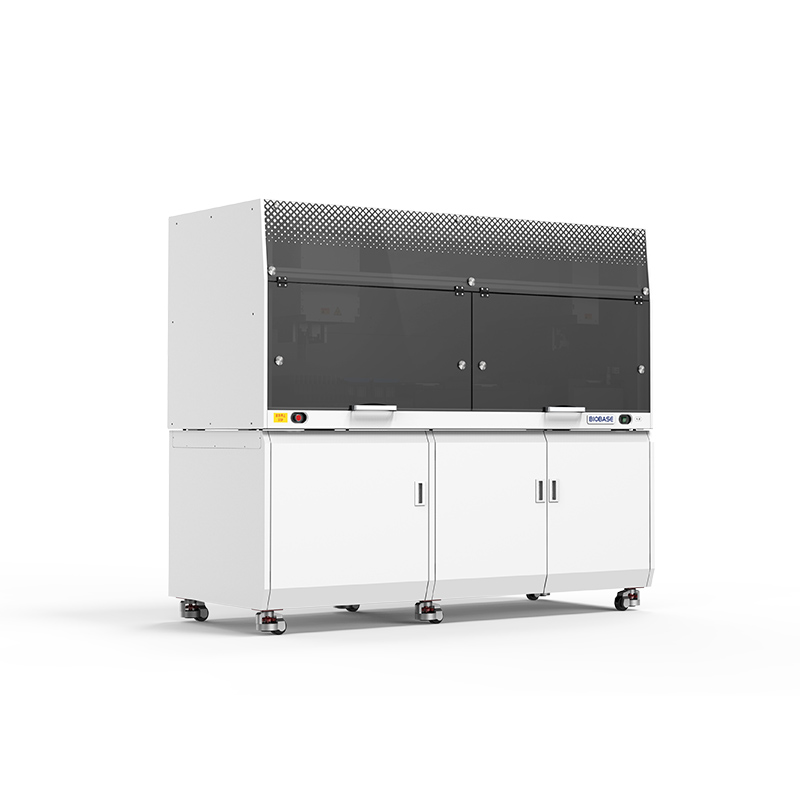

Auto ELISA Processor

BIOBASE8001

Auto ELISA Processor BIOBASE8001 is a fully automatic detection equipment that integrates sample addition, incubation, shaking, washing, and reading. It is widely used in hospital laboratories, disease prevention and control centers, blood centers, and blood banks, animal and plant inspection and quarantine institutions, scientific research institutions, university laboratories and other places.

Key features

Automated microplate processing
Assay-matched reading and washing
Configurations for different workloads

Made to orderPrice on request

Manufacturer: BIOBASE

Request a quote

Reply within 24 hoursValidated selection and configurationDelivery to the UK, all European countries, USA, Canada, Mexico and South America.

01 / LaboratoriX technical datasheet

LaboratoriX technical datasheet

Technical parameters consolidated from the manufacturer documentation. Each column corresponds to one model; shared values are clearly identified. Final configuration, accessories, power supply and applicable documentation are confirmed with the quotation.

Parameter	BIOBASE8001
Sample&Reagent Unit — Sample Racks	12 × 20 push-pull sample rack with detection
Sample&Reagent Unit — Sampling Channel	8 channels
Sample&Reagent Unit — Liquid Level Detection	Air pressure level detection, needle blocking intelligent detection
Sample&Reagent Unit — TIP	5 TIP racks
Sample&Reagent Unit — Pipetting	5–1000µl, capable of parallel sampling
Sample&Reagent Unit — Pipetting Precision	100µl: CV≤1.0 %, accuracy≤2.5 % 1000µl: CV≤0.5 %, accuracy≤1.0 %
Sample&Reagent Unit — Reagent Position	6 reagent positions, 40 quality control positions +12 reagent bottles +25 reagent tanks(reagent tank with code identification)
Washing Unit — Washer	3 units with on plate detection function
Washing Unit — Washing Head	16-channel(32-pin), double row cleaning, hanging installation, with leakage recovery
Washing Unit — Injection Uniformity	CV<1.5 %
Washing Unit — Washing Residual	<1µl(residual volume per well)
Reading Unit — Reading Channel	8 independent photometric channels
Reading Unit — Linear Range	0.000–3.000Abs
Reading Unit — Repeatability	CV≤1.0 %
Reading Unit — Stability	≤±0.003Abs
Reading Unit — Optical Filters	4 standard filters(405, 450, 492, 630 nm) Total 10 filters positions
Reading Unit — Reading Accuracy	≤±0.02Abs from 0.0 to 1.0 OD, ≤±0.03Abs from 1.0 to 2.0 OD
Reading Unit — Sensitivity	≥0.01 mg/L
Reading Unit — Channel Difference	≤0.02Abs
Incubation Unit — Incubators	16 shaking incubators
Incubation Unit — Cover Positions	4(16 covers)
Incubation Unit — Heating Method	Dry heating with cover
Incubation Unit — Shaking Function	Horizontal circular oscillation, 1–3 levels adjustable, amplitude 2.5 mm
Incubation Unit — Temperature Range	RT~60 °C
Incubation Unit — Temperature Uniformity	±0.5 °C
Incubation Unit — Temperature Fluctuation	±0.5 °C
Data Management — Software	Above Windows 7 system
Data Management — LIS System	Bi-direction, support HL7 protocol
Data Management — Results	Absorbance and results reviewable by software
Data Management — Printer	External optional
Data Management — Built-in Scanner	Optional
Other Function — Biosafety Protection	Optional(Negative pressure working zone, HEPA filter)
Other Function — Disinfection	UV lamp
Other Function — Lighting	LED
Other Function — IAP Function	Firmware can be upgraded online at any time
Working Condition — Power Supply	AC100–240 V, 50/60 Hz
Working Condition — Temperature	10–30 °C
Working Condition — Humidity	30–80 %
Size&Weight — External Size(WDH)	Machine: 1925 × 824 × 1652 mm (With base stand); Base Stand: 1925 × 792 × 777 mm
Size&Weight — Package Size(WDH)	Machine: 2095 × 950 × 1160 mm Base stand: 2095 × 950 × 1005 mm Accessories: 1560 × 930 × 530 mm
Size&Weight — Net Weight	Machine: 320 kg Base stand: 153 kg Accessories: 68 kg
Size&Weight — Gross Weight	Machine: 420 kg Base stand: 245 kg Accessories: 122 kg
