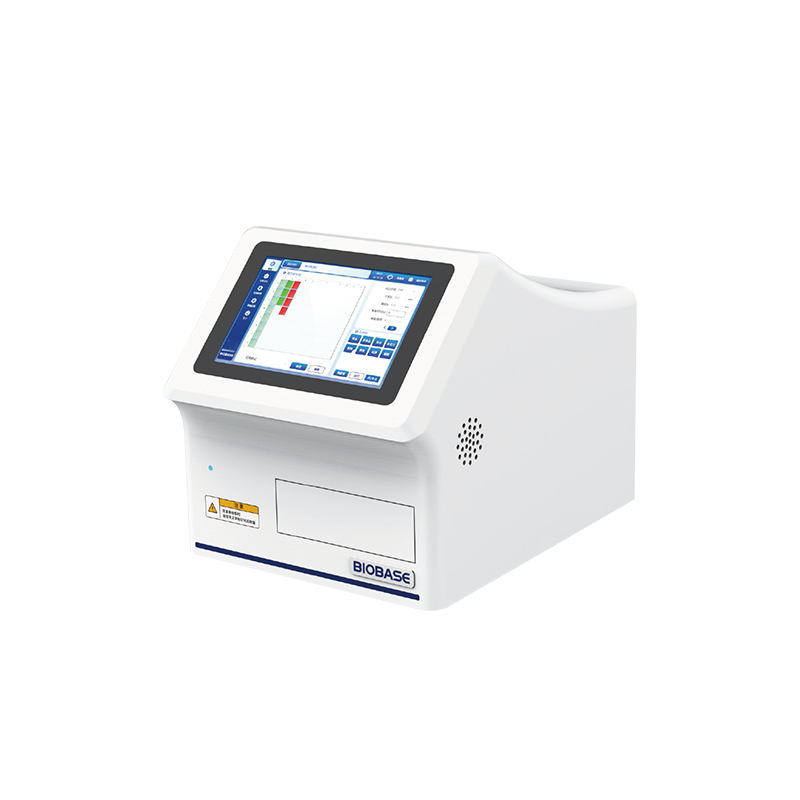

ELISA Microplate Reader BK-EL10E

Name: ELISA Microplate Reader BK-EL10E
Brand: BIOBASE
SKU: BK-EL10E

BK-EL10E

Microplate automation, reading and washing for ELISA assays in research and laboratory diagnostics.

Made to orderPrice on request

Manufacturer: BIOBASE

Request a quote

Reply within 24 hoursValidated selection and configurationDelivery across mainland Portugal, Madeira, the Azores, and all European countries.

01 / Key features

Key features

Automated microplate processing
Assay-matched reading and washing
Configurations for different workloads

02 / LaboratoriX technical datasheet

LaboratoriX technical datasheet

Technical parameters consolidated from the manufacturer documentation. Each column corresponds to one model; shared values are clearly identified. Final configuration, accessories, power supply and applicable documentation are confirmed with the quotation.

Parameter	BK-EL10E
Detection Method	96-well full wavelength scanning
Detection Speed	Complete 96-well plate detection within 20 seconds
Plate Layout Method	Visual free layout
Wavelength Range	190nm~1000nm(1nm step)
Light Source	Flashing xenon lamp
Spectral Bandwidth	2.5nm
Accuracy	1.0%±0.005Abs(0~2.0Abs)
Precision	OD accuracy 1.0%+0.003OD(0~2.0 OD); 2.0%(2.0~2.5 OD)@450nm
Incubation Temperature	RT+2~65℃
Shaking Function	Shaking mode, shaking speed and shaking time are adjustable
Microplate Type	96-well microplate
Display	10.1-inch color touch screen
Storage Capacity	>20,000 samples
Power	120VA
Power Supply	AC100~240V, 50/60Hz
Instrument Size(WDH)	*340430400mm*
Package Size(WDH)	*440610475mm*
Net/Gross Weight	12/21kg
