Microscopy

Biological Microscope

BBM-17 / BBM-17 A / BBM-17AP / BBM-17AD

The Biological Microscope is a powerful scientific instrument for studying the microscopic world of biology. It offers high-resolution imaging, versatile observation modes, and precision controls, making it an indispensable tool for researchers, educators, and enthusiasts.

Key features

  • Application-specific optical system
  • Configurable objectives and illumination
  • Digital capture options
Made to orderPrice on request
Manufacturer
BIOBASE
Request a quote
Reply within 24 hoursValidated selection and configurationDelivery to the UK, all European countries, USA, Canada, Mexico and South America.

01 / LaboratoriX technical datasheet

LaboratoriX technical datasheet

Technical parameters consolidated from the manufacturer documentation. Each column corresponds to one model; shared values are clearly identified. Final configuration, accessories, power supply and applicable documentation are confirmed with the quotation.

ParameterBBM-17BBM-17 ABBM-17APBBM-17AD
Optical System
Common to all modelsInfinite optical system

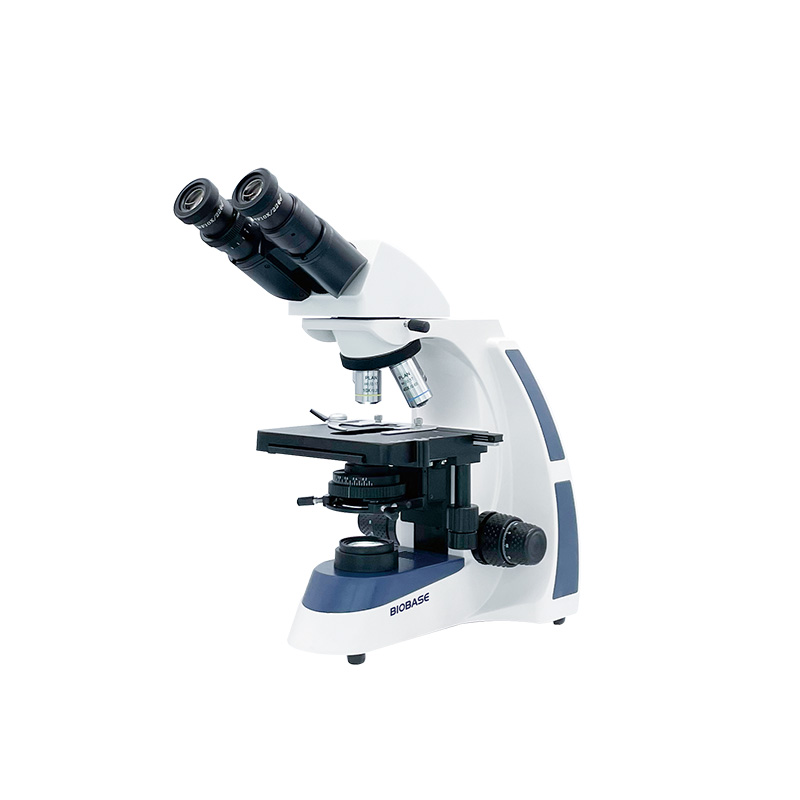

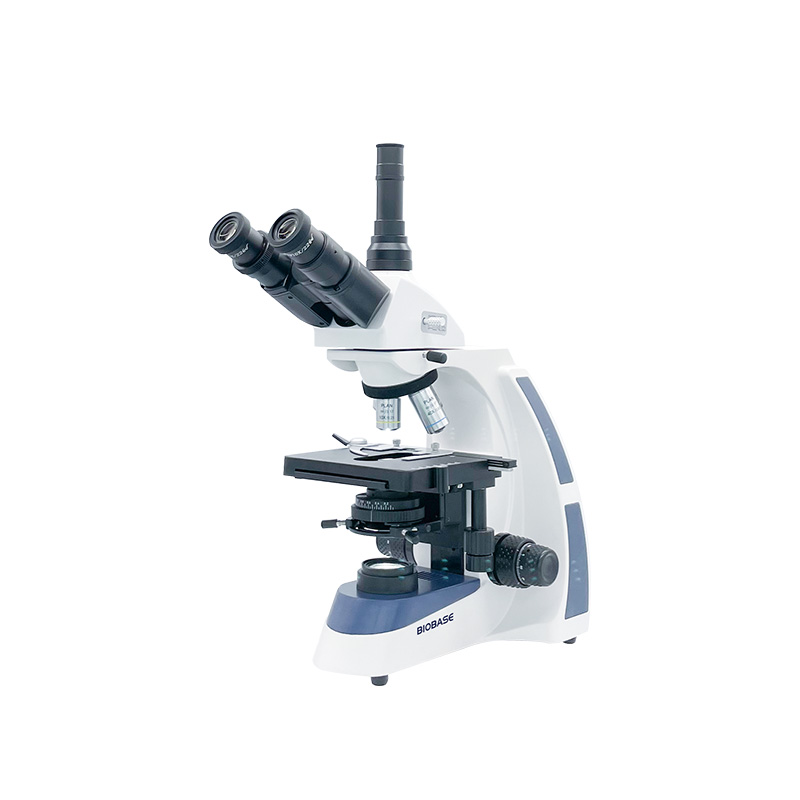

View HeadCompensation free binocular head, Inclined at 30°, 360° rotatable, Interpupillary 48–75 mmCompensation free trinocular head, Inclined at 30°, 360° rotatable, Interpupillary 48–75 mmCompensation free trinocular head, Inclined at 30°, 360° rotatable, Interpupillary 48–75 mmCompensation free trinocular head, Inclined at 30°, 360° rotatable, Interpupillary 48–75 mm
Eyepiece
Common to all modelsWF10X/22 mm, WF16X/15 mm(Optional)
Infinite Achromatic Objective
Common to all models4X N.A=0.10 WD=20.00 mm
Infinite Achromatic Objective (2)
Common to all models10X N.A=0.25 WD=13.50 mm
Infinite Achromatic Objective (3)
Common to all models40X N.A=0.65 WD=0.68 mm
Infinite Achromatic Objective (4)
Common to all models100X(Oil) N.A=1.25 WD=0.20 mm
Focusing
Common to all modelsCoaxial Coarse＆Fine Adjustable System, Range 30 mm, Fine Division 0.002 mm
Stage
Common to all modelsMechanical Stage 140 × 160 mm, Moving Range 76 × 40 mm
Condenser
Common to all modelsAbbe NA1.25 centerable condenser with Iris Diaphragm＆Filter
Illumination
Common to all modelsLED lamp, brightness adjustable
Filter
Common to all modelsYellow, green, blue

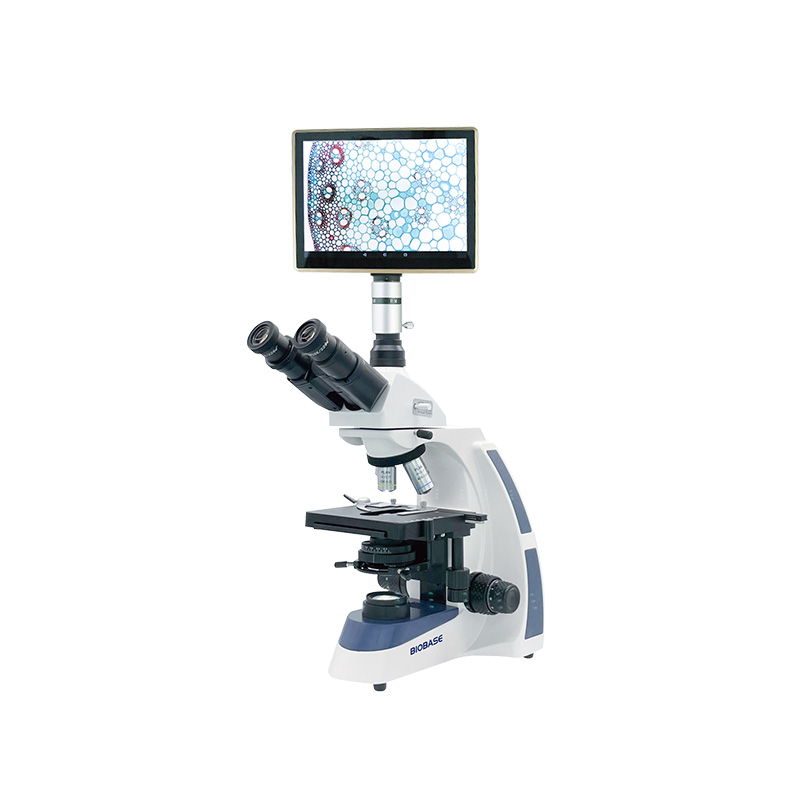

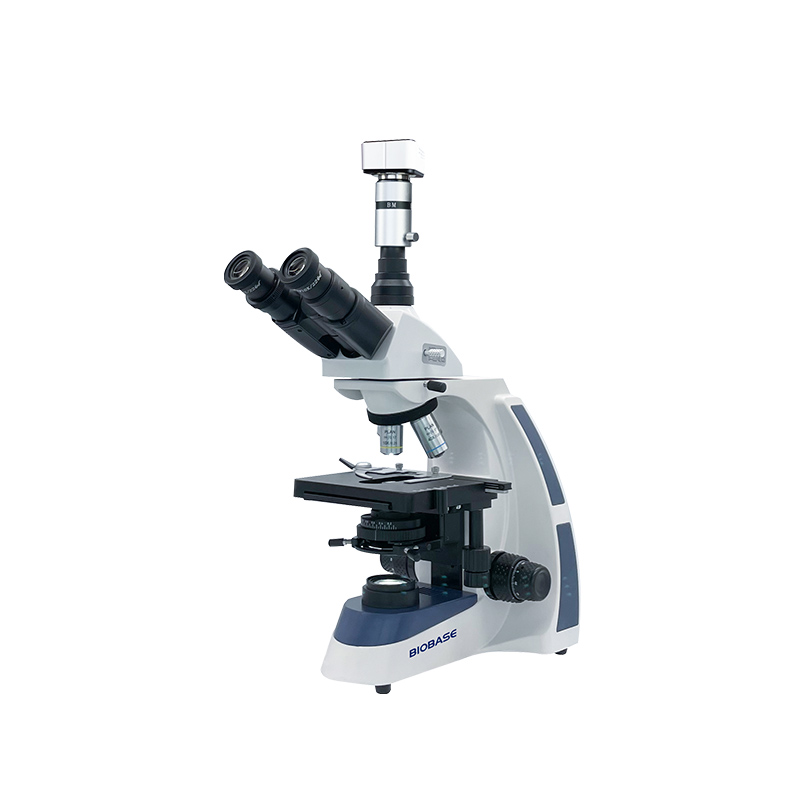

Imaging System//10.5-inch Android system PAD, MCL-Z adapter500 W CMOS Camera, MCL-Z adapter
Power Supply
Common to all modelsAC85–240 V, 50/60 Hz
Package Size(W*D*H)410 × 260 × 525 mm410 × 260 × 525 mm410 × 260 × 610 mm410 × 260 × 610 mm
Net Weight9 kg9 kg10 kg10 kg
Gross Weight11 kg11 kg12 kg12 kg

Technical data supplied by BIOBASE.
