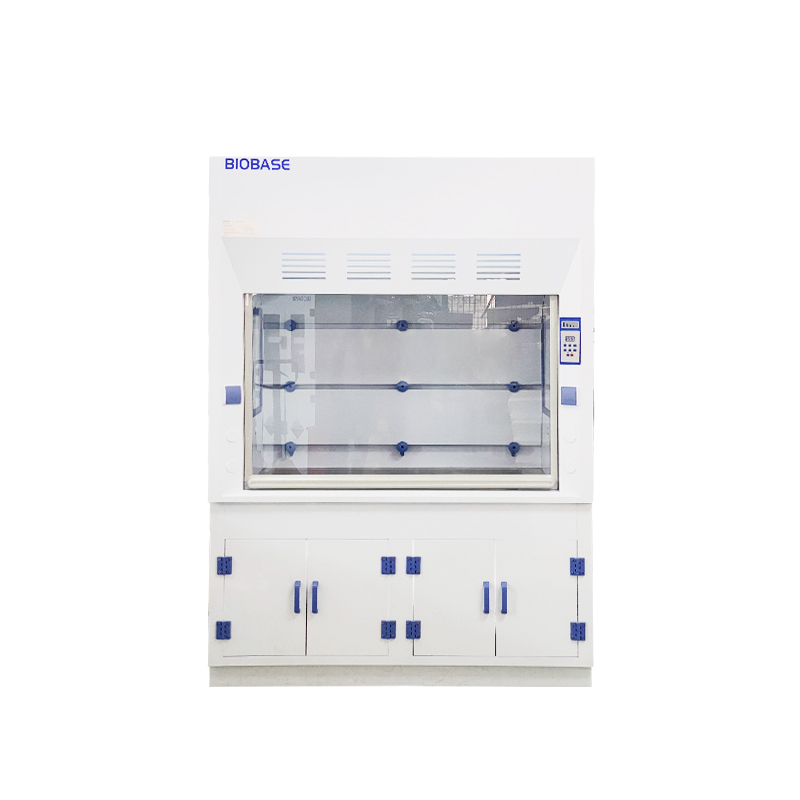

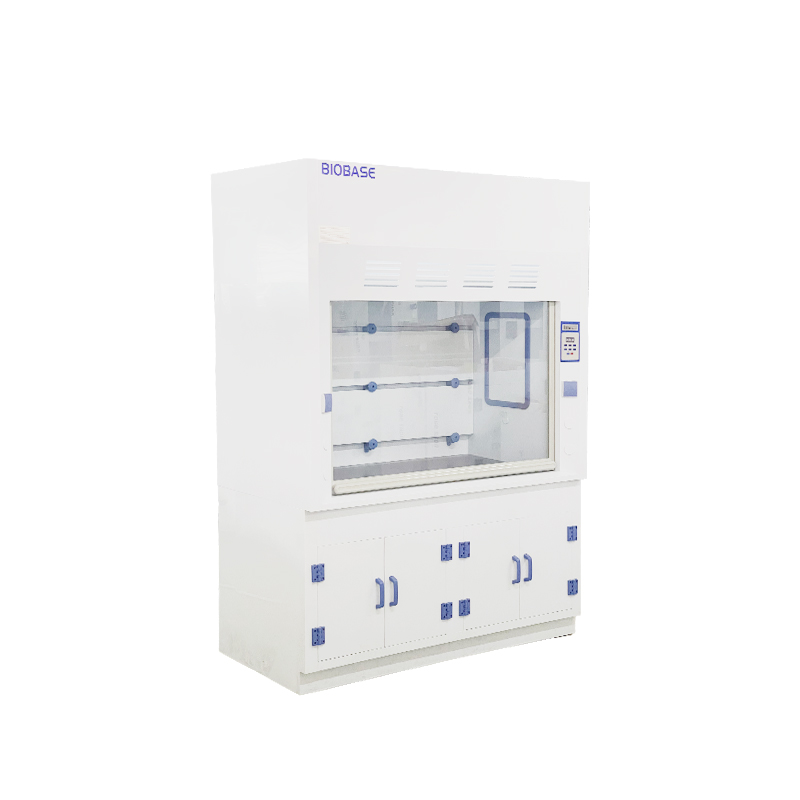

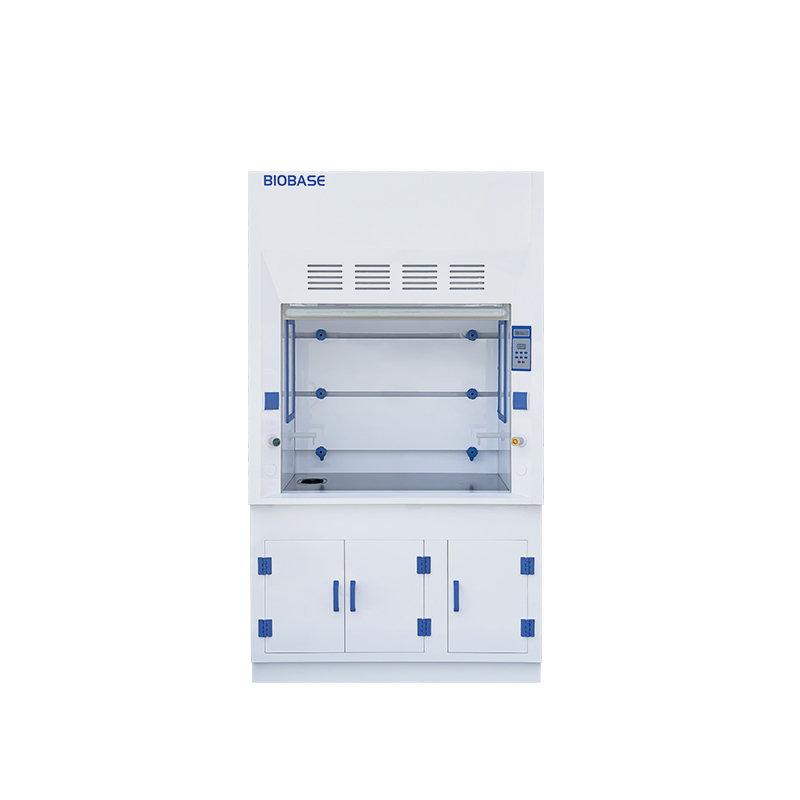

Ducted PP Fume Hood FH (P)

FH1000(P) / FH1200(P) / FH1500(P) / FH1800(P)

It is a new type of technical equipment for air-conditioned workshop and clean workshop. Widely used in electronics, chemical, machinery, universities, laboratories and other fields.

Key features

Ducted or filtered vapour extraction
Operator protection
Materials suited to chemical agents

Made to orderPrice on request

Manufacturer: BIOBASE

Request a quote

Reply within 24 hoursValidated selection and configurationDelivery to the UK, all European countries, USA, Canada, Mexico and South America.

01 / Accessories

Available accessories

Included accessories

LED light Work table: chemical resistant phenolic resin 5 meters PVC duct(2pcs of 4.3 meters PVC dust for FH1800(P) only)
Diameter: 250 mm Pipe strap*2(4pcs for FH1800(P) only) RVV power cord(3 × 1.0 mm²*3000 mm) Base cabinet Waterproof socket*2 Tail insert Water tap(PP) Gas tap(PP) Water sink PP centrifugal blower*1(2 for FH1800(P) only)

Optional accessories

PP work table
Epoxy resin board or ceramic board Active carbon filter Outer PP centrifugal blower *1 (2 for FH1800(P) only)
Splicable base cabinet(only not for FH1800(P))

Final contents, accessory compatibility and availability are confirmed in the quotation for the selected model.

02 / LaboratoriX technical datasheet

LaboratoriX technical datasheet

Technical parameters consolidated from the manufacturer documentation. Each column corresponds to one model; shared values are clearly identified. Final configuration, accessories, power supply and applicable documentation are confirmed with the quotation.

Parameter	FH1000(P)	FH1200(P)	FH1500(P)	FH1800(P)
External Size(WDH)	1047 × 800 × 2450 mm	1247 × 800 × 2450 mm	1547 × 800 × 2450 mm	1847 × 800 × 2450 mm
Internal Size(WDH)	787 × 560 × 700 mm	987 × 560 × 700 mm	1287 × 560 × 700 mm	1587 × 560 × 700 mm
Work Surface Height	Common to all models820 mm
Max Opening	Common to all models740 mm
Air Velocity	Common to all models0.3–0.8m/s
Noise	Common to all models≤68dB
Exhaust Duct	Common to all models5 meters, Φ250 mm
LED Lamp	*9 W2**	*12 W2**	*15 W2**	*20 W2**
Blower	Common to all modelsBuilt-in PP centrifugal blower(2 blowers for FH1800(P) only), Speed adjustable
Front Window	Common to all modelsResistant to acid and alkali, manual, 5 mm toughened glass, height adjustable
Power Supply	Common to all modelsAC220V±10 %, 50/60 Hz; 110 V±10 %, 60 Hz
Consumption	400 W	400 W	500 W	700 W
Material — Main Body	Common to all modelsMade of porcelain white PP, thickness 8 mm, resistant to strong acid, alkali and anti-corrosion.
Material — Work Table	Common to all modelsChemical resistant phenolic resin
Standard Accessory	Common to all modelsLED light Work table: chemical resistant phenolic resin 5 meters PVC duct(2pcs of 4.3 meters PVC dust for FH1800(P) only), Diameter: 250 mm Pipe strap2(4pcs for FH1800(P) only) RVV power cord(3 × 1.0 mm²3000 mm) Base cabinet Waterproof socket2 Tail insert Water tap(PP) Gas tap(PP) Water sink PP centrifugal blower1(2 for FH1800(P) only)
Optional Accessory	Common to all modelsPP work table, epoxy resin board or ceramic board Active carbon filter Outer PP centrifugal blower *1 (2 for FH1800(P) only); Splicable base cabinet(only not for FH1800(P))
Gross Weight — Main Body	137 kg	155 kg	180 kg	206 kg
Gross Weight — Base Cabinet	89 kg or 80 kg(Splicable)	99 kg or 90 kg(Splicable)	114 kg or 102 kg(Splicable)	140 kg
Package Size(WDH) — Main Body	1188 × 938 × 1612 mm	1388 × 938 × 1612 mm	1688 × 938 × 1612 mm	1988 × 938 × 1612 mm
Package Size(WDH) — Base Cabinet	1188 × 888 × 1000 mm or 1200 × 1000 × 450 mm(Splicable)	1388 × 888 × 1000 mm or 1400 × 1000 × 450 mm(Splicable)	1688 × 888 × 1000 mm or 1700 × 1000 × 450 mm(Splicable)	1988 × 888 × 1000 mm
