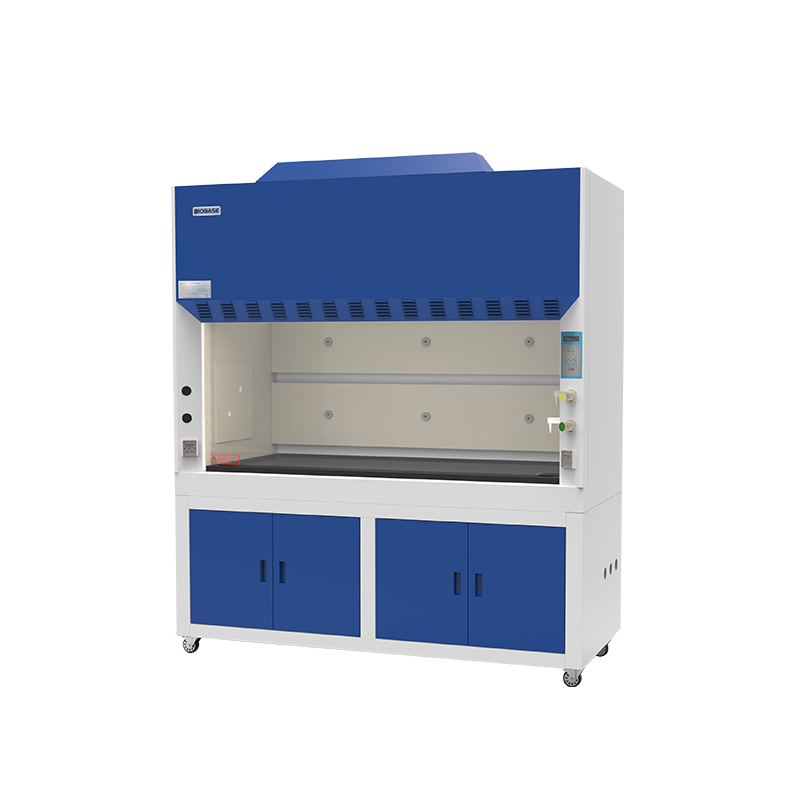

Ducted Fume Hood

FH1000(A) / FH1200(A) / FH1500(A) / FH1800(A)

Fume Hood is a kind of negative pressure ventilation system for protecting operator and laboratory environment. Room air flows inward from the front opening of the Fume Hood and is consistently ventilated by the extract blower.

Key features

Ducted or filtered vapour extraction
Operator protection
Materials suited to chemical agents

Made to orderPrice on request

Manufacturer: BIOBASE

Request a quote

Reply within 24 hoursValidated selection and configurationDelivery to the UK, all European countries, USA, Canada, Mexico and South America.

01 / Accessories

Available accessories

Included accessories

UV lamp*2
LED lamp
Water tap
Gas tap
Water sink
Base cabinet
Total load of 2 waterproof sockets: 500 W
5 meters PVC exhaust duct
Pipe strap*2

Optional accessories

Activated carbon filter
HEPA filter

Final contents, accessory compatibility and availability are confirmed in the quotation for the selected model.

02 / LaboratoriX technical datasheet

LaboratoriX technical datasheet

Technical parameters consolidated from the manufacturer documentation. Each column corresponds to one model; shared values are clearly identified. Final configuration, accessories, power supply and applicable documentation are confirmed with the quotation.

Parameter	FH1000(A)	FH1200(A)	FH1500(A)	FH1800(A)
External Size(WDH)	1040 × 800 × 2200 mm	1240 × 800 × 2200 mm	1540 × 800 × 2200 mm	1840 × 800 × 2200 mm
Internal Size(WDH)	820 × 670 × 730 mm	1020 × 670 × 730 mm	1320 × 670 × 730 mm	1620 × 670 × 730 mm
Work Surface Height	Common to all models850 mm
Max Opening	Common to all models520 mm
Air Velocity	Common to all models0.3–0.8m/s
Exhaust Air Volume	590m³/h	730m³/h	950m³/h	1170m³/h
Noise	Common to all models≤68dB
Exhaust Duct	Common to all modelsPVC, Standard length: 5 meters
Exhaust Duct (2)	Common to all modelsΦ300 mm
LED Lamp	*8 W1**	*12 W1**	*16 W1**	*16 W1**
UV Lamp	Common to all modelsEmission of 253.7 nanometers for most efficient decontamination
Blower	Common to all modelsBuilt-in centrifugal blower, Speed adjustable
Front Window	Common to all models5 mm toughened glass, Motorized, Height adjustable
Power Supply	Common to all modelsAC220±10 %, 50/60 Hz; 110 V±10 %, 60 Hz
Consumption	400 W	400 W	500 W	500 W
Material — Exterior	Common to all modelsCold-rolled steel with anti-bacteria powder coating
Material — Interior	Common to all modelsCompact laminate board with good acid and alkali resistance function
Material — Work Table	Common to all modelsChemical resistant phenolic resin
Standard Accessory	Common to all modelsUV lamp*2, LED lamp, Water tap, Gas tap, Water sink, Base cabinet
Standard Accessory (2)	Common to all modelsTotal load of 2 waterproof sockets: 500 W
Standard Accessory (3)	Common to all models5 meters PVC exhaust duct, pipe strap*2
Optional Accessory	Common to all modelsActive carbon filter, HEPA filter
Gross Weight	191 kg; 79 kg	207 kg; 84 kg	243 kg; 100 kg	285 kg;113 kg
Package	Common to all modelsMain Body · 1190 × 995 × 1660 mm · 1390 × 995 × 1680 mm · 1690 × 995 × 1660 mm · 1990 × 995 × 1660 mm
Package (2)	Common to all modelsBase Cabinet · 1190 × 995 × 930 mm · 1390 × 995 × 945 mm · 1690 × 995 × 930 mm · 1990 × 995 × 930 mm

MADE-TO-ORDER SUPPLY

Do you need this equipment?

Share the application, configuration, quantity and delivery location. We prepare a tailored proposal with the required documentation.
