Temperature control

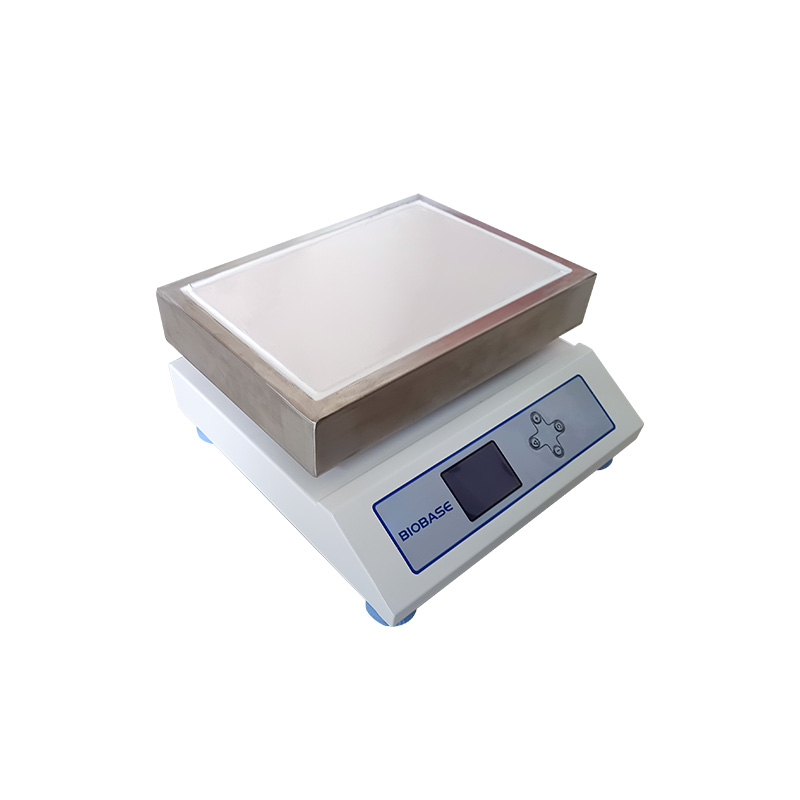

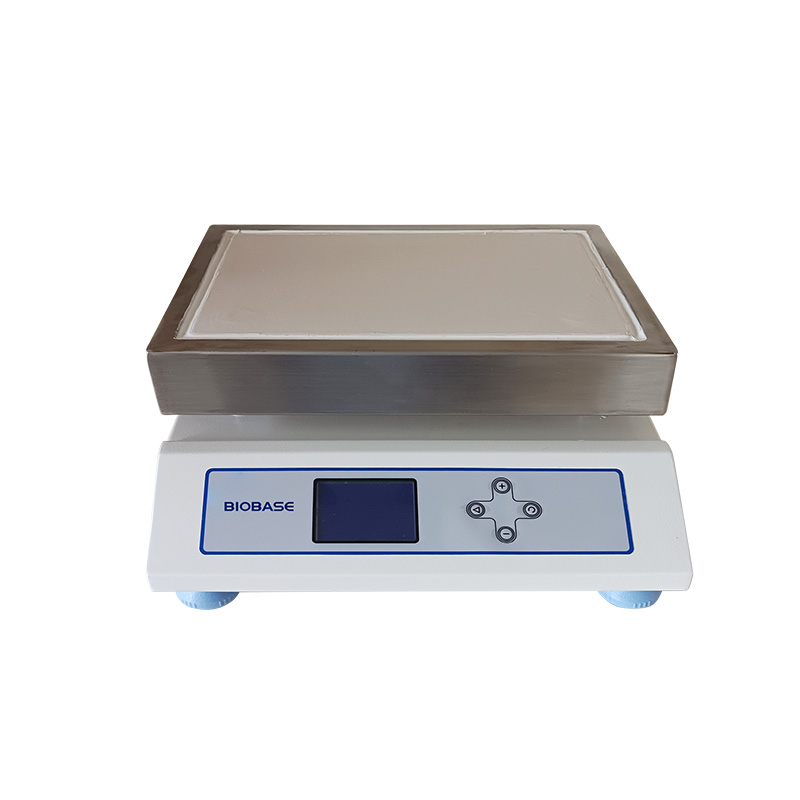

Laboratory Electric Ceramic Hot Plate
CH-300 / CH-400
An electric hot plate is a versatile heating device for industrial and laboratory applications, engineered based on the resistance heating principle. It converts electrical energy into thermal energy, delivering a stable heat source for sample heating, temperature maintenance, drying, and reactive processes.
Key features
- Programmable temperature
- Uniform heating or cooling
- Selectable capacities and accessories
- Manufacturer
- BIOBASE
01 / LaboratoriX technical datasheet
LaboratoriX technical datasheet
Technical parameters consolidated from the manufacturer documentation. Each column corresponds to one model; shared values are clearly identified. Final configuration, accessories, power supply and applicable documentation are confirmed with the quotation.
| Parameter | CH-300 | CH-400 |
|---|---|---|
| Plate Size(mm) | 300 × 200 | 400 × 280 |
| Max. Temperature | ||
| Material(Main body) | ||
| Work Plate Material | ||
| Power Supply | ||
| Consumption(W) | 1800 | 2200 |
| External Size(W*D*H) | 350 × 340 × 188 mm | 450 × 420 × 188 mm |
| Package Size(W*D*H) | 460 × 430 × 290 mm | 570 × 500 × 290 mm |
| Gross Weight | 9 kg | 13.6 kg |
