Included accessories
- Basket
Photography and technical data supplied by: BIOBASE · 1 image.
Sterilisation

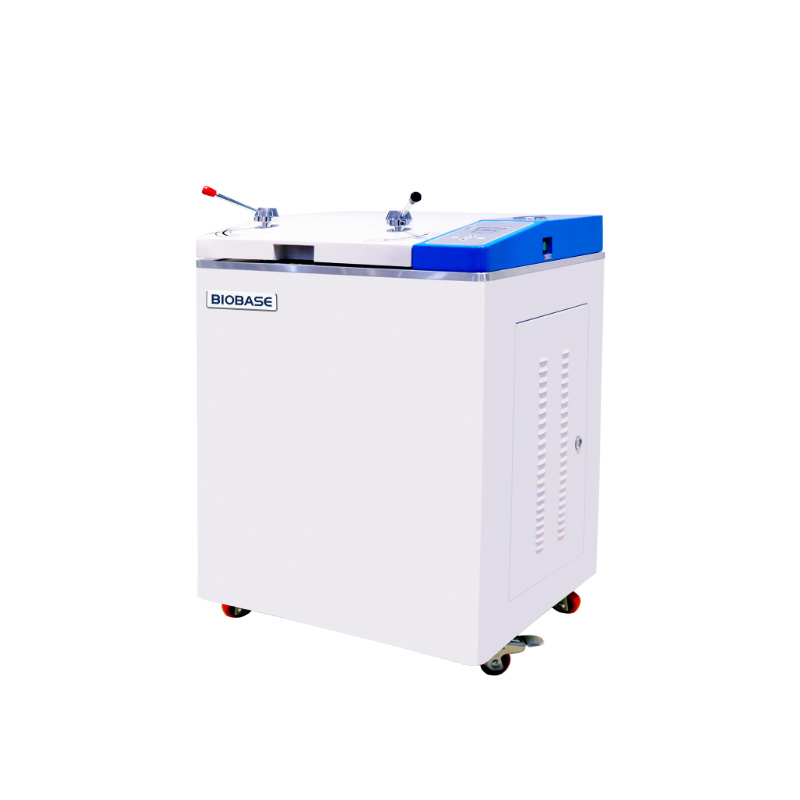

Vertical Sterilization Autoclave
BKQ-Z30I / BKQ-Z50I / BKQ-Z75I / BKQ-Z100I
Application Range: It is widely used in laboratories, inspection departments, food processing enterprises, etc. for sterilization of equipment and medical waste.
Key features
- Thermal, UV, plasma or chemical processes
- Capacities and formats for different loads
- Integrated safety systems
Made to orderPrice on request
- Manufacturer
- BIOBASE
Reply within 24 hoursValidated selection and configurationDelivery to the UK, all European countries, USA, Canada, Mexico and South America.
01 / Accessories
Available accessories
Optional accessories
- Printer
- Mesh-bottom basket
- Bucket
Final contents, accessory compatibility and availability are confirmed in the quotation for the selected model.
02 / LaboratoriX technical datasheet
LaboratoriX technical datasheet
Technical parameters consolidated from the manufacturer documentation. Each column corresponds to one model; shared values are clearly identified. Final configuration, accessories, power supply and applicable documentation are confirmed with the quotation.
| Parameter | BKQ-Z30I | BKQ-Z50I | BKQ-Z75I | BKQ-Z100I |
|---|---|---|---|---|
| Capacity | 30 L | 50 L | 75 L | 100 L |
| Designed Pressure | ||||
| Working Pressure | ||||
| Designed Temp. | ||||
| Working Temp. | ||||
| Temp. Precision | ||||
| Chamber Material | ||||
| Chamber Size | φ385 × 412 mm | φ385 × 515 mm | φ385 × 715 mm | φ385 × 875 mm |
| Basket/ Mesh Bottom Basket/ Bucket | φ365 × 265 mm, 1pc | φ365 × 360 mm, 1pc | φ365 × 265 mm, 2pcs | φ365 × 360 mm, 2pcs |
| Noise | ||||
| Altitude | ||||
| Standard Accessory | ||||
| Consumption | ||||
| Power Supply | ||||
| External Size(W*D*H) | 645 × 610 × 710 mm | 645 × 610 × 810 mm | 645 × 610 × 945 mm | 645 × 610 × 1150 mm |
| Net Weight | 86 kg | 91 kg | 98 kg | 112 kg |
| Packing Size(W*D*H) | 750 × 745 × 950 mm | 750 × 745 × 1100 mm | 750 × 745 × 1240 mm | 750 × 745 × 1450 mm |
| Gross Weight | 102 kg | 105 kg | 116 kg | 124 kg |
