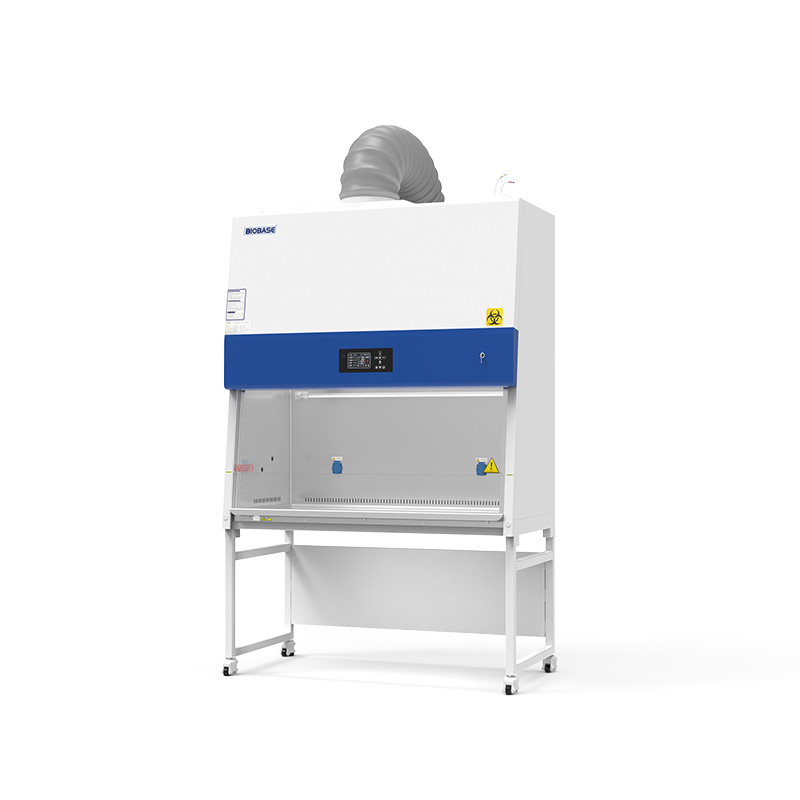

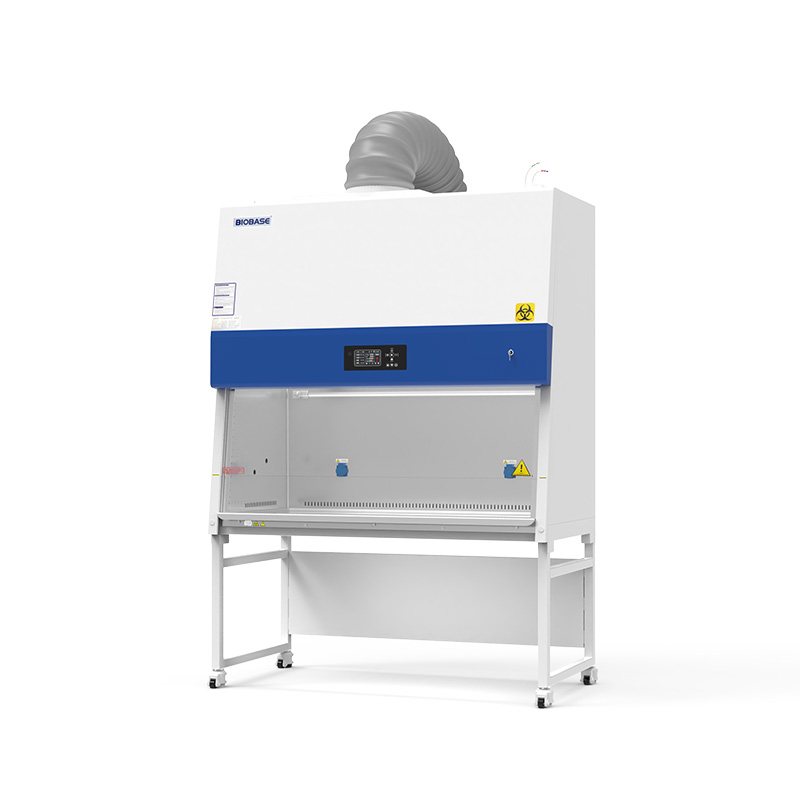

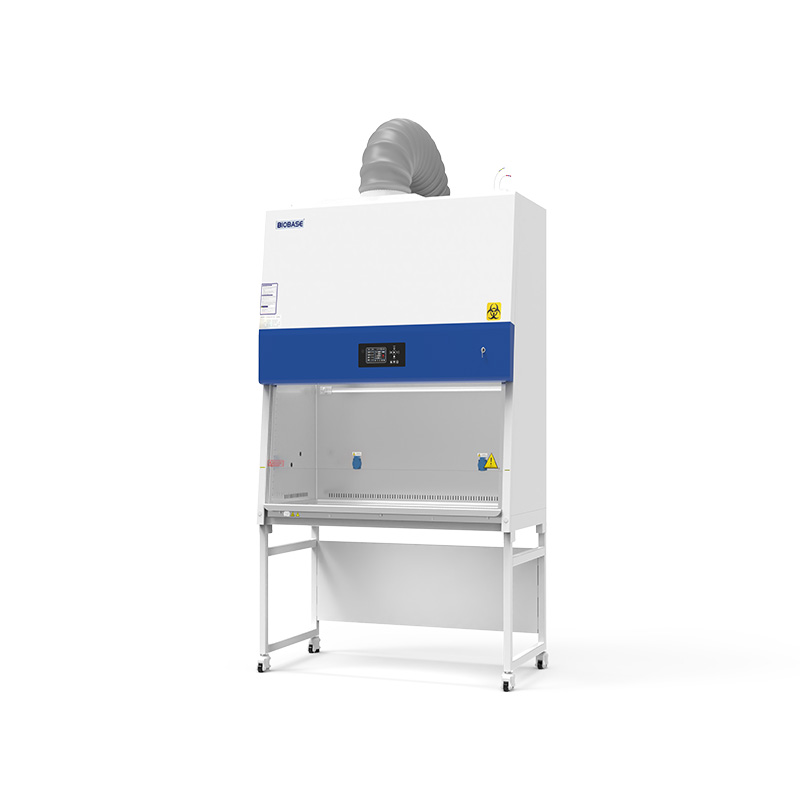

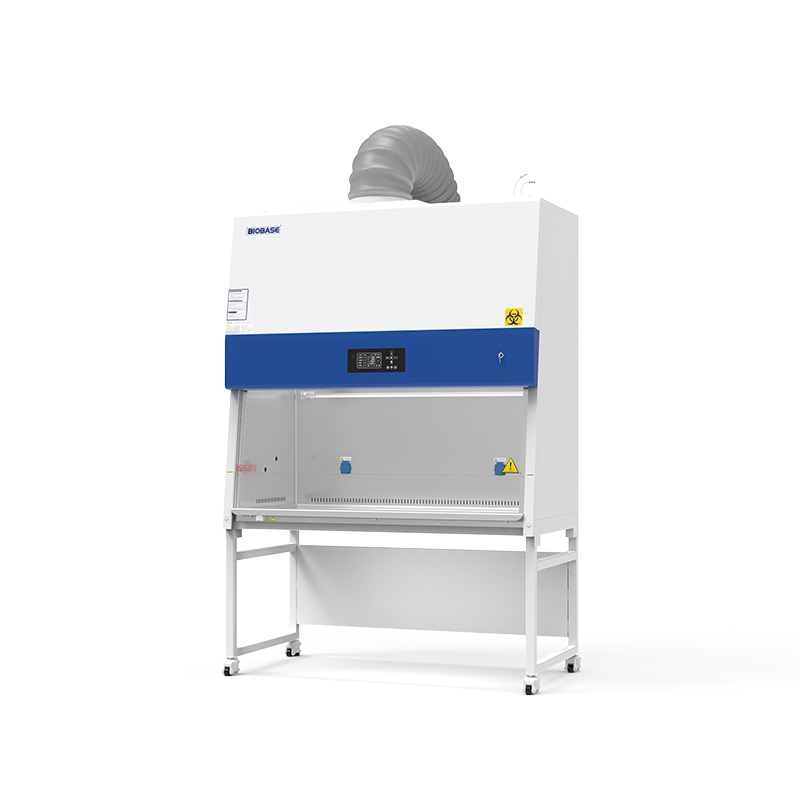

AC Series Class II B2 Biological Safety Cabinet

BSC-1100IIB2-X / BSC-1300IIB2-X / BSC-1500IIB2-X / BSC-1800IIB2-X

The AC Series Class II B2 Biological Safety Cabinet is a high-performance containment unit designed for laboratories handling hazardous biological materials and chemical compounds. Unlike traditional Class II cabinets, the B2 Model provides 100 % total exhaust, ensuring that all potentially harmful air is completely expelled from the laboratory, making it ideal for applications requiring both biological and chemical safety.

Key features

Containment and HEPA filtration
Protection matched to the risk class
Configuration validated for the space

Made to orderPrice on request

Manufacturer: BIOBASE

Request a quote

Reply within 24 hoursValidated selection and configurationDelivery to the UK, all European countries, USA, Canada, Mexico and South America.

01 / Accessories

Available accessories

Included accessories

LED lamp 2pcs
UV lamp 2pcs
Base stand
Remote control
Foot switch
Drain valve
Waterproof socket 2pcs
Exhaust blower
Exhaust duct

Optional accessories

Water and gas tap
Electric height adjustable base stand
Armrest

Final contents, accessory compatibility and availability are confirmed in the quotation for the selected model.

02 / LaboratoriX technical datasheet

LaboratoriX technical datasheet

Technical parameters consolidated from the manufacturer documentation. Each column corresponds to one model; shared values are clearly identified. Final configuration, accessories, power supply and applicable documentation are confirmed with the quotation.

Parameter	BSC-1100IIB2-X	BSC-1300IIB2-X	BSC-1500IIB2-X	BSC-1800IIB2-X
External Size(WDH)	1100 × 775 × 2250 mm	1300 × 775 × 2250 mm	1500 × 775 × 2250 mm	1800 × 775 × 2250 mm
Internal Size(WDH)	940 × 600 × 660 mm	1150 × 600 × 660 mm	1350 × 600 × 660 mm	1625 × 600 × 660 mm
Tested Opening	Common to all modelsSafety height 200 mm(8")
Max Opening	Common to all models480 mm
Inflow Velocity	Common to all models0.53±0.025m/s
Downflow Velocity	Common to all models0.33±0.025m/s
ULPA Filter	Common to all modelsTwo, 99.9995 % efficiency at 0.12 µm, filter life indicator
Front Window	Common to all modelsMotorized. Two-layer laminated toughened glass≥6 mm. Anti UV
Noise	Common to all models≤65dB
UV Lamp	*30 W1**	*30 W1**	*40 W1**	*40 W1**
UV Lamp (2)	Common to all modelsUV timer, UV life indicator, emission of 235.7 nanometers for most efficient decontamination
LED Lamp	*12 W2**	*14 W2**	*16 W2**	*16 W2**
Illumination	Common to all models≥1000Lux
Consumption	Common to all models1300 W
Waterproof Socket	Common to all modelsTwo, total load of two sockets: 500 W
Display	Common to all modelsLCD display: exhaust filter and downflow filter pressure, filter and UV lamp working time, inflow and downflow velocity, filter life, humidity and temperature, system working time etc.
Control System	Common to all modelsMicroprocessor
Airflow System	Common to all models0 % air recirculation, 100 % air exhaust
Visual and Audio Alarm	Common to all modelsAbnormal airflow velocity, Filter replacement, Front window at unsafe height, High filter pressure alarm, abnormal power failure
Material	Common to all modelsWork Zone: 304 stainless steel
Material (2)	Common to all modelsMain Body: Cold-rolled steel with anti-bacteria powder coating
Work Surface Height	770 mm(can be customized)	770 mm(can be customized)	770 mm(can be customized)	800 mm(Can be customized)
Caster	Common to all modelsFootmaster caster
Power Supply	Common to all modelsAC220V, 50/60 Hz; 110 V, 60 Hz
Standard Accessory	Common to all modelsLED lamp 2pcs, UV lamp 2pcs, Base stand, Remote control, Foot switch, Drain valve, Waterproof socket 2pcs, Exhaust blower, Exhaust duct
Optional Accessory	Common to all modelsWater and gas tap, Electric height adjustable base stand, Armrest
Gross Weight	275 kg; 58 kg	320 kg; 63 kg	340 kg; 63 kg	390 kg; 72 kg
Package	Common to all modelsMain Body Exhaust Blower(WDH) · 1230 × 990 × 1840 mm · 1430 × 990 × 1840 mm · 1630 × 990 × 1840 mm · 1930 × 990 × 1840 mm
Package (2)	Common to all modelsMain Body Exhaust Blower(WDH) · 930 × 800 × 700 mm · 930 × 860 × 740 mm · 930 × 860 × 740 mm · 930 × 860 × 740 mm
