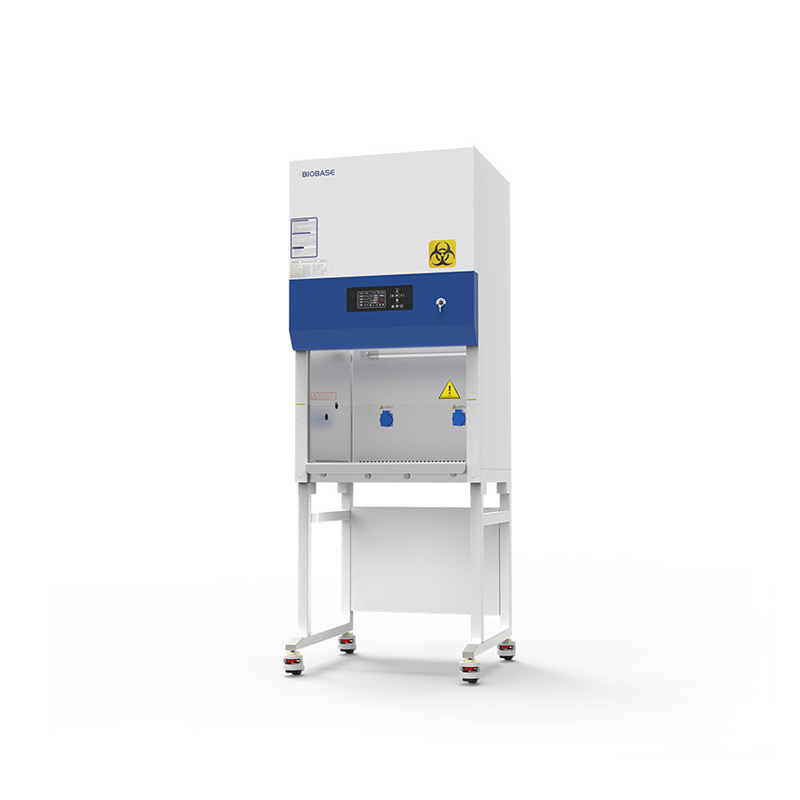

AC Series Class II A2 Biological Safety Cabinet

BSC-700IIA2-Z

Biological safety cabinet is a box-type air purification negative pressure safety device that can prevent the aerosol escape of some dangerous or unknown biological particles in the process of experimental operation. It is widely used in scientific research, teaching, clinical testing and production in the fields of microbiology, genetic engineering and biological products, and is the most basic safety protection equipment in the first-level protective barrier of laboratory biosafety.

Key features

Containment and HEPA filtration
Protection matched to the risk class
Configuration validated for the space

Made to orderPrice on request

Manufacturer: BIOBASE

Request a quote

Reply within 24 hoursValidated selection and configurationDelivery to the UK, all European countries, USA, Canada, Mexico and South America.

01 / Accessories

Available accessories

Included accessories

Cabinet*1
LED lamp*2
UV lamp*2
Remote control
Drain valve*1
Waterproof socket*2
Foot swith

Optional accessories

Water and gas tap
Electric height adjustable base stand
Armrest
Base stand*1

Final contents, accessory compatibility and availability are confirmed in the quotation for the selected model.

02 / LaboratoriX technical datasheet

LaboratoriX technical datasheet

Technical parameters consolidated from the manufacturer documentation. Each column corresponds to one model; shared values are clearly identified. Final configuration, accessories, power supply and applicable documentation are confirmed with the quotation.

Parameter	BSC-700IIA2-Z
External Size(WDH)	700 × 650 × 1920 mm(700 × 650 × 1280 mm without base stand)
Internal Size(WDH)	600 × 500 × 540 mm
Tested Opening	Safety height 200 mm
Max Opening	380 mm
Inflow Velocity	0.53±0.025m/s
Down Flow Velocity	0.33±0.025m/s
ULPA Filter	Two, 99.9995 % efficiency at 0.12 µm, filter life indicator
Front Window	Motorized
Noise	≤65dB
UV Lamp	*15 W1 UV timer, UV life indicator, emission of 253.7 nanometers for most efficient decontamination**
LED Lamp	*8 W2**
Illumination	≥1000Lux
Consumption	≤500 W
Socket	Two, total load of two sockets: 500 W
Display	LCD display: exhaust filter and downflow filter pressure, filter and UV lamp working time, inflow and downflow velocity, filter life, humidity and temperature, system working time, etc
Control System	70 % air recirculation, 30 % air exhaust
Visual and Audio Alarm	Filter replacement, window over height, abnormal air flow velocity, high filter pressure alarm, abnormal power failure
Material	Work Zone: 304 stainless steel Main Body: Cold-rolled steel with anti-bacteria power coating
Work Surface Height	750 mm with base stand
Power Supply	AC220V, 50/60 Hz; 110 V, 60 Hz
Standard Accessory	*Cabinet1, LED lamp2, UV lamp2, Remote control, Drain valve1, Waterproof socket2, Foot swith**
Optional Accessory	*Water and gas tap, Electric height adjustable base stand, Armrest, Base stand1**
Package Size(WDH) — Without Base Stand	800 × 760 × 1470 mm
Package Size(WDH) — With Base stand	800 × 900 × 1470 mm
Gross Weight — Without Base Stand	130 kg
Gross Weight — With Base stand	154 kg
