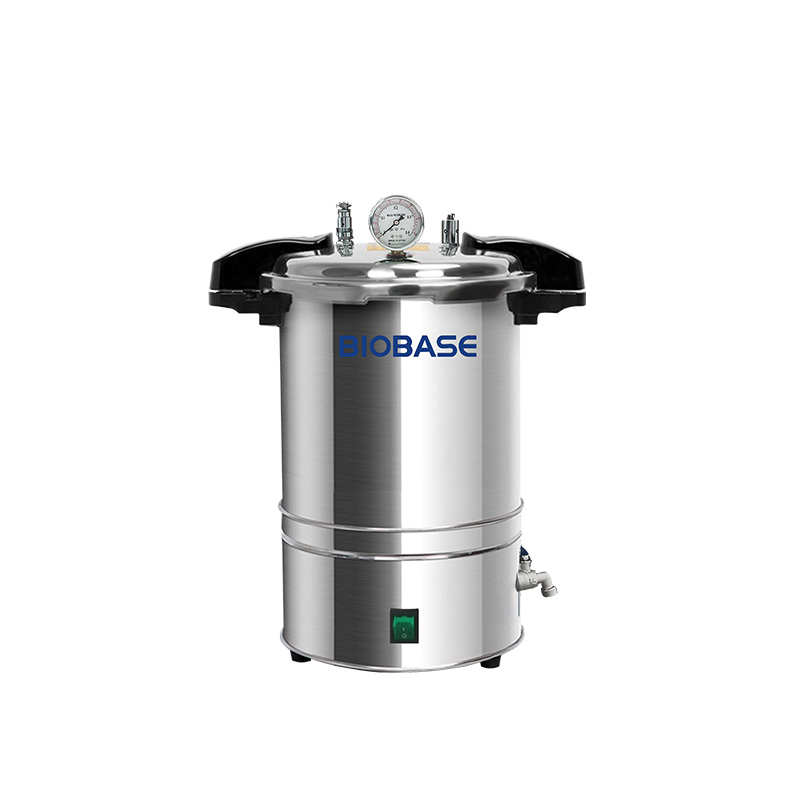

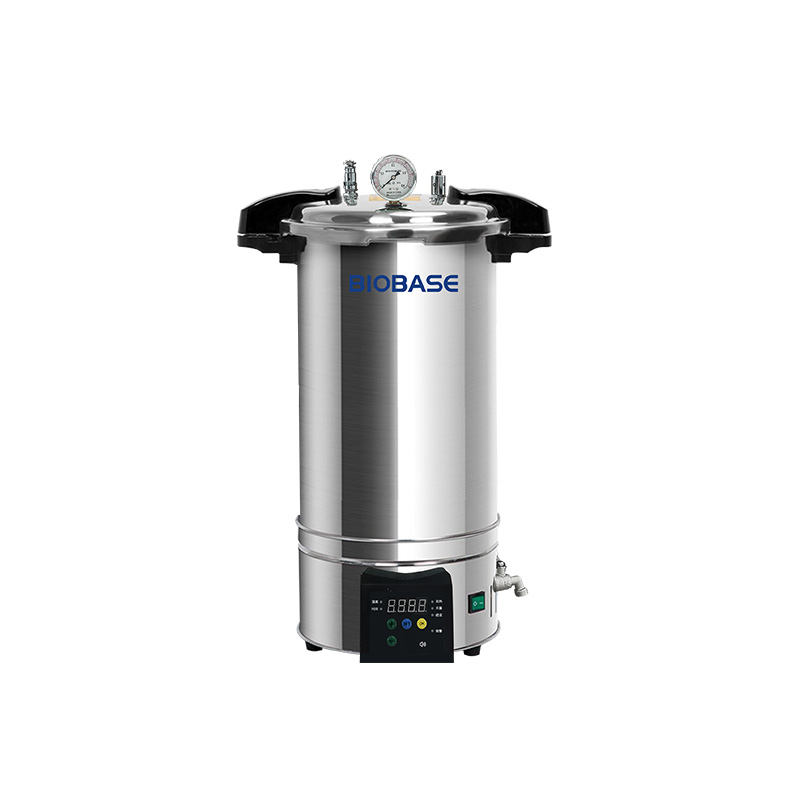

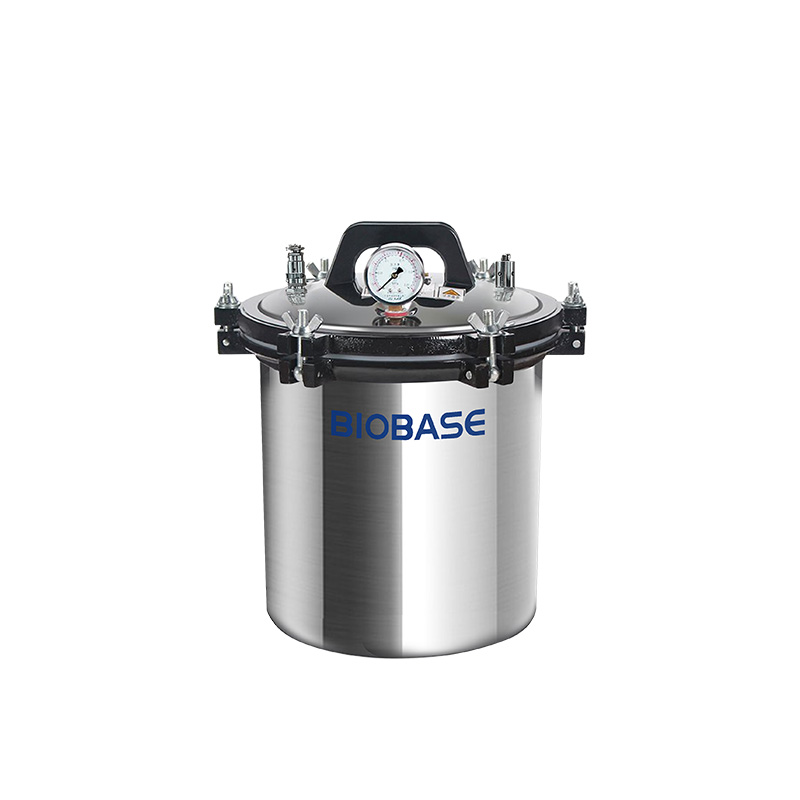

Portable Autoclave

BKM-P18I / BKM-P18II / BKM-P18III / BKM-24I / BKM-P24II / BKM-P24III

Applications: It\'s mostly suitable for steriling of surgical, dental instruments, glassware, culture medium and biological dressing, food and goods, etc.

Key features

Thermal, UV, plasma or chemical processes
Capacities and formats for different loads
Integrated safety systems

Made to orderPrice on request

Manufacturer: BIOBASE

Request a quote

Reply within 24 hoursValidated selection and configurationDelivery to the UK, all European countries, USA, Canada, Mexico and South America.

01 / LaboratoriX technical datasheet

LaboratoriX technical datasheet

Technical parameters consolidated from the manufacturer documentation. Each column corresponds to one model; shared values are clearly identified. Final configuration, accessories, power supply and applicable documentation are confirmed with the quotation.

Parameter	BKM-P18I	BKM-P18II	BKM-P18III	BKM-24I	BKM-P24II	BKM-P24III
Type Capacity	Common to all modelsDual-use Type: 18 L · Anti-dry Type: 18 L · Timing Control Type: 18 L · Dual-use Type: 24 L · Anti-dry Type: 24 L · Timing Control Type: 24 L
Type Max Working Pressure	Common to all modelsDual-use Type: 0.165 MPa · Anti-dry Type: 0.165 MPa · Timing Control Type: 0.165 MPa · Dual-use Type: 0.165 MPa · Anti-dry Type: 0.165 MPa · Timing Control Type: 0.165 MPa
Type Max Working Temp.	Common to all modelsDual-use Type: 129 °C · Anti-dry Type: 129 °C · Timing Control Type: 129 °C · Dual-use Type: 129 °C · Anti-dry Type: 129 °C · Timing Control Type: 129 °C
Type Rated Working Pressure	Common to all modelsDual-use Type: 0.14 MPa · Anti-dry Type: 0.14 MPa · Timing Control Type: 0.14 MPa · Dual-use Type: 0.14 MPa · Anti-dry Type: 0.14 MPa · Timing Control Type: 0.14 MPa
Type Rated Working Temp.	Common to all modelsDual-use Type: 126 °C · Anti-dry Type: 126 °C · Timing Control Type: 126 °C · Dual-use Type: 126 °C · Anti-dry Type: 126 °C · Timing Control Type: 126 °C
Type Temp. Setting	Common to all modelsDual-use Type: Fixed 126 °C · Anti-dry Type: Fixed 126 °C · Timing Control Type: 105–127 °C · Dual-use Type: Fixed 126 °C · Anti-dry Type: Fixed 126 °C · Timing Control Type: 105–127 °C
Type Heating Method	Common to all modelsDual-use Type: Coal or electricity · Anti-dry Type: Electricity · Timing Control Type: Electricity · Dual-use Type: Coal or electricity · Anti-dry Type: Electricity · Timing Control Type: Electricity
Type Sterilizing Time	Common to all modelsDual-use Type: Manual timing · Anti-dry Type: Manual timing · Timing Control Type: 0–99 min · Dual-use Type: Manual timing · Anti-dry Type: Manual timing · Timing Control Type: 0–99 min
Type Chamber Size	Common to all modelsDual-use Type: Ф300 × 320 mm · Anti-dry Type: Ф280 × 350 mm · Timing Control Type: Ф280 × 350 mm · Dual-use Type: Ф300 × 450 mm · Anti-dry Type: Ф280 × 460 mm · Timing Control Type: Ф280 × 460 mm
Type Altitude	Common to all modelsDual-use Type: ＜2600m · Anti-dry Type: ＜2600m · Timing Control Type: ＜2600m · Dual-use Type: ＜2600m · Anti-dry Type: ＜2600m · Timing Control Type: ＜2600m
Type Disinfection Tank	Common to all modelsDual-use Type: Φ280 × 240 mm · Anti-dry Type: Φ265 × 265 mm · Timing Control Type: Φ265 × 265 mm · Dual-use Type: Φ280 × 350 mm · Anti-dry Type: Φ265 × 345 mm · Timing Control Type: Φ265 × 345 mm
Type Automatic Control	Common to all modelsDual-use Type: No · Anti-dry Type: No · Timing Control Type: Yes · Dual-use Type: No · Anti-dry Type: No · Timing Control Type: Yes
Type Low Water Level Power Off Mode	Common to all modelsDual-use Type: Anti-dry burning heating pipe · Anti-dry Type: Water level switch · Timing Control Type: Water level switch · Dual-use Type: Anti-dry burning heating pipe · Anti-dry Type: Water level switch · Timing Control Type: Water level switch
Type Consumption	Common to all modelsDual-use Type: 2KW, 1.5KW can be customized · Anti-dry Type: 2KW, 1.5KW can be customized · Timing Control Type: 2KW, 1.5KW can be customized · Dual-use Type: 2KW, 1.5KW can be customized · Anti-dry Type: 2KW, 1.5KW can be customized · Timing Control Type: 2KW, 1.5KW can be customized
Type Power Supply	Common to all modelsDual-use Type: AC220V, 50/60 Hz(Standard); AC110V, 50/60 Hz(Optional) · Anti-dry Type: AC220V, 50/60 Hz(Standard); AC110V, 50/60 Hz(Optional) · Timing Control Type: AC220V, 50/60 Hz(Standard); AC110V, 50/60 Hz(Optional) · Dual-use Type: AC220V, 50/60 Hz(Standard); AC110V, 50/60 Hz(Optional) · Anti-dry Type: AC220V, 50/60 Hz(Standard); AC110V, 50/60 Hz(Optional) · Timing Control Type: AC220V, 50/60 Hz(Standard); AC110V, 50/60 Hz(Optional)
Type External Size(WDH)	Common to all modelsDual-use Type: 385 × 385 × 450 mm · Anti-dry Type: 450 × 340 × 600 mm · Timing Control Type: 450 × 340 × 600 mm · Dual-use Type: 385 × 385 × 560 mm · Anti-dry Type: 448 × 340 × 680 mm · Timing Control Type: 448 × 340 × 680 mm
Type Net Weight	Common to all modelsDual-use Type: 15.5 kg · Anti-dry Type: 13.5 kg · Timing Control Type: 13.5 kg · Dual-use Type: 16.5 kg · Anti-dry Type: 14.5 kg · Timing Control Type: 14.5 kg
Type Package Size(WDH)	Common to all modelsDual-use Type: 400 × 400 × 430 mm · Anti-dry Type: 400 × 400 × 670 mm · Timing Control Type: 400 × 400 × 670 mm · Dual-use Type: 400 × 400 × 530 mm · Anti-dry Type: 400 × 400 × 770 mm · Timing Control Type: 400 × 400 × 770 mm
Type Gross Weight	Common to all modelsDual-use Type: 16.5 kg · Anti-dry Type: 14.5 kg · Timing Control Type: 14.5 kg · Dual-use Type: 17.5 kg · Anti-dry Type: 15.5 kg · Timing Control Type: 15.5 kg
