Photography and technical data supplied by: BIOBASE · 2 images.

Sterilisation

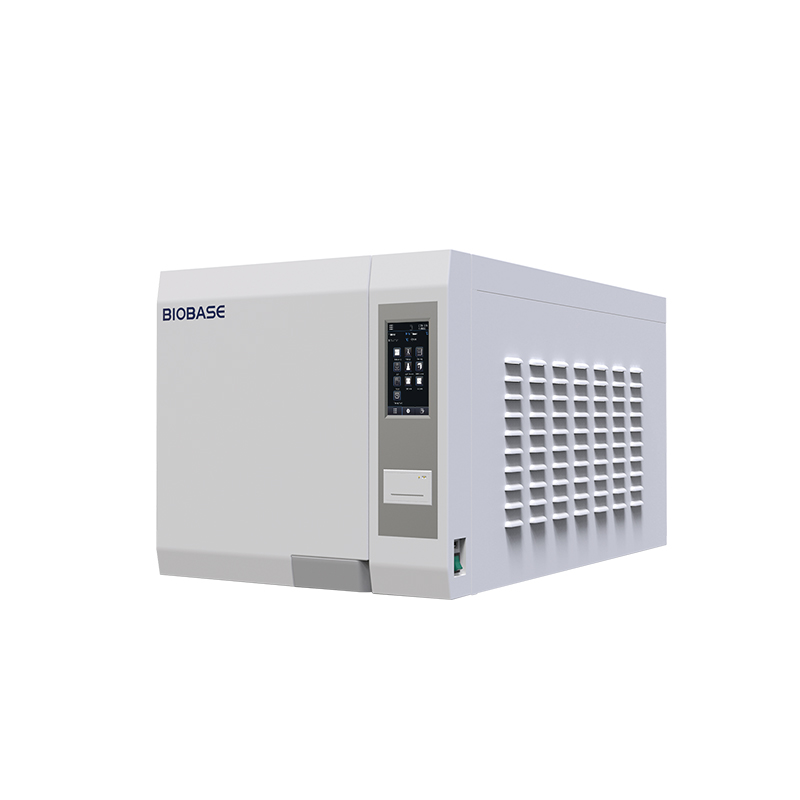

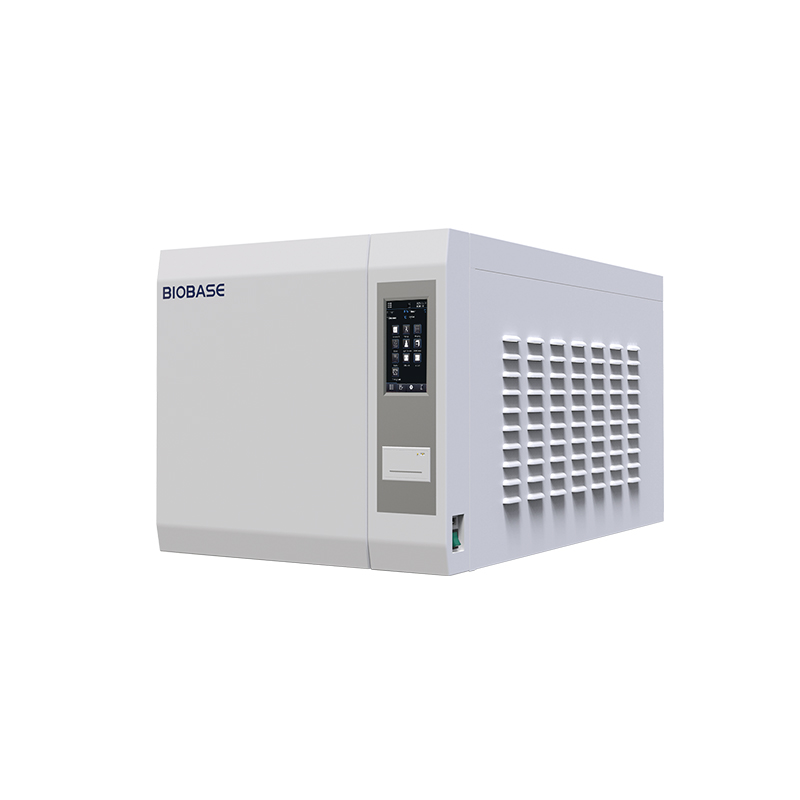

Table Top Class B Autoclave

BKM-K18B / BKM-Z18B / BKM-K23B / BKM-Z23B

The pulse vacuum autoclave extracts vacuum and fills steam into the sterilization room for many times to make the sterilization chamber reach a certain vacuum degree, and then fills saturated steam to reach the set pressure and temperature, so as to achieve the purpose of sterilization of the sterilized substance.

Key features

  • Thermal, UV, plasma or chemical processes
  • Capacities and formats for different loads
  • Integrated safety systems
Made to orderPrice on request
Manufacturer
BIOBASE
Request a quote
Reply within 24 hoursValidated selection and configurationDelivery across mainland Portugal, Madeira, the Azores, and all European countries.

01 / Accessories

Available accessories

Included accessories

  • Aluminum tray
  • USB
  • Printer

Optional accessories

  • Stainless steel tray

Final contents, accessory compatibility and availability are confirmed in the quotation for the selected model.

02 / LaboratoriX technical datasheet

LaboratoriX technical datasheet

Technical parameters consolidated from the manufacturer documentation. Each column corresponds to one model; shared values are clearly identified. Final configuration, accessories, power supply and applicable documentation are confirmed with the quotation.

ParameterBKM-K18BBKM-Z18BBKM-K23BBKM-Z23B
Capacity18 L18 L23 L23 L
DoorManualAutomaticManualAutomatic
Display
Common to all models5-inch LCD touch screen
Designed Pressure
Common to all models-0.1/0.3 MPa
Working Pressure
Common to all models0.23Mpa
Max Designed Temp.
Common to all models150 °C
Working Temp.
Common to all models105–134 °C
Temp. Precision
Common to all models0.1 °C
Sterilization Time
Common to all models0–99 min
Drying Time
Common to all models0–99 min
Water Tank Capacity
Common to all models3.5 L
Vacuum System
Common to all modelsHigh efficiency vacuum pump
Chamber Material
Common to all modelsS30408
Chamber Sizeφ250 × 350 mmφ250 × 350 mmφ250 × 450 mmφ250 × 450 mm
Altitude
Common to all models≤2500m
Rack
Common to all models1 rack with 3 trays
Consumption
Common to all models3KW
Power Supply
Common to all modelsAC220V, 50/60 Hz(Standard); AC110V, 50/60 Hz(Optional, air switch)
External Size(W*D*H)630 × 485 × 450 mm630 × 485 × 450 mm680 × 485 × 450 mm680 × 485 × 450 mm
Net Weight48 kg48 kg53 kg53 kg
Package Size(W*D*H)
Common to all models810 × 610 × 590 mm
Gross Weight64 kg64 kg65 kg65 kg

Technical data supplied by BIOBASE.
