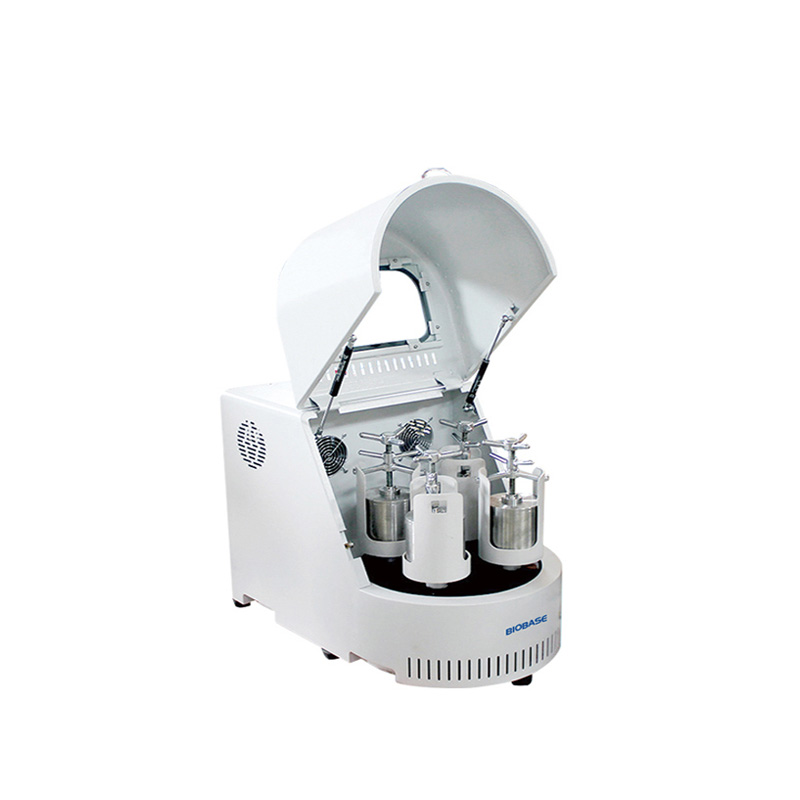

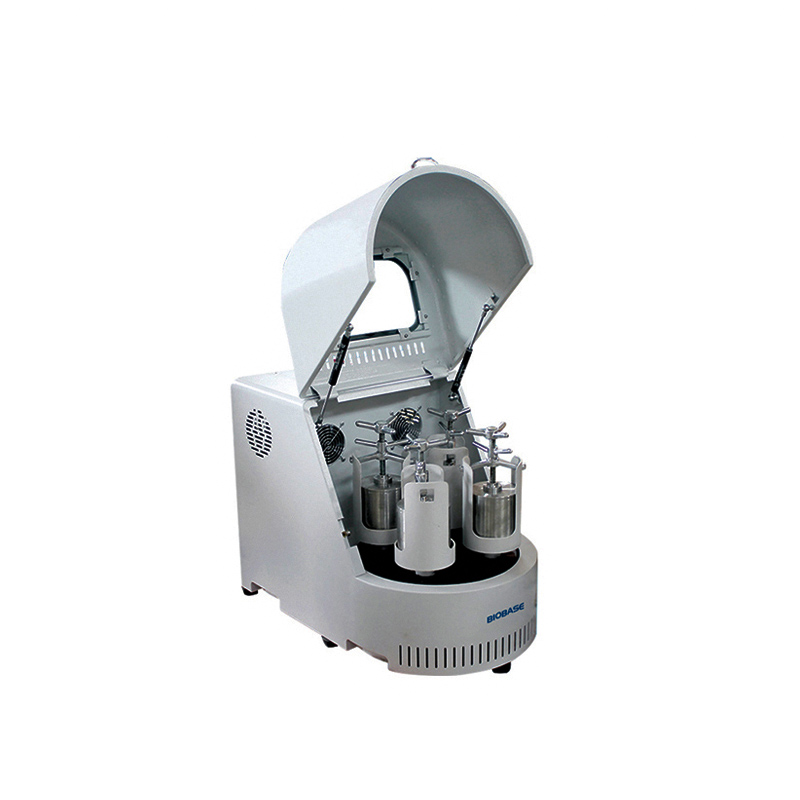

Vertical Planetary Ball Mill (Semi-circle Type)

BKBM-V0.4 / BKBM-V2

Planetary Ball Mill has four ball grinding tanks installed on one turntable. When the turntable rotates, the tank axis makes planetary movements, the balls and samples inside the tanks are impacted strongly in high speed movement, and samples are eventually ground into powder.

Key features

Uniform solid processing
Controlled time, speed or temperature
Preparation for subsequent analysis

Made to orderPrice on request

Manufacturer: BIOBASE

Request a quote

Reply within 24 hoursValidated selection and configurationDelivery to the UK, all European countries, USA, Canada, Mexico and South America.

01 / LaboratoriX technical datasheet

LaboratoriX technical datasheet

Technical parameters consolidated from the manufacturer documentation. Each column corresponds to one model; shared values are clearly identified. Final configuration, accessories, power supply and applicable documentation are confirmed with the quotation.

Parameter	BKBM-V0.4	BKBM-V2
Capacity	0.4 L	2 L
Volume of Each Capacity	50–100 mL	50–500 mL
Pot Quantity	Common to all models4pcs
Running Time Range	Common to all models1–9999 min
Reciprocal Running Time	Common to all models1–999 min
Adjustable, Revolution	45–435 rpm	35–335 rpm
Speed Rotation	90–870 rpm	70–670 rpm
Noise	58±5dB	60±5dB
Speed Control Mode	Common to all modelsFrequency control
Transmission Mode	Common to all modelsGear drive
Working Mode	Common to all models2 or 4 pots can be used each time
Maximum Sample Volume(Material+Grinding Ball)	Common to all models2/3 of the volume of the ball mill tank
Feed Size	Common to all modelsSoft and Crispy material<10 mm, Other materials<3 mm
Out-put Granularity	Common to all modelsMinimum granularity can be reached to 0.1 µm
Adjusting Mode of Rotate Speed	Common to all modelsFrequency converter with stepless speed regulation
Consumption	0.25KW	0.75KW
Power Supply	Common to all modelsAC110/220 V±10 %, 50/60 Hz
External Size(WDH)mm	530 × 300 × 340	750 × 470 × 565
Package Size(WDH)mm	595 × 360 × 485	820 × 530 × 720
Net Weight(kg)	29	80
Gross Weight(kg)	50	100
