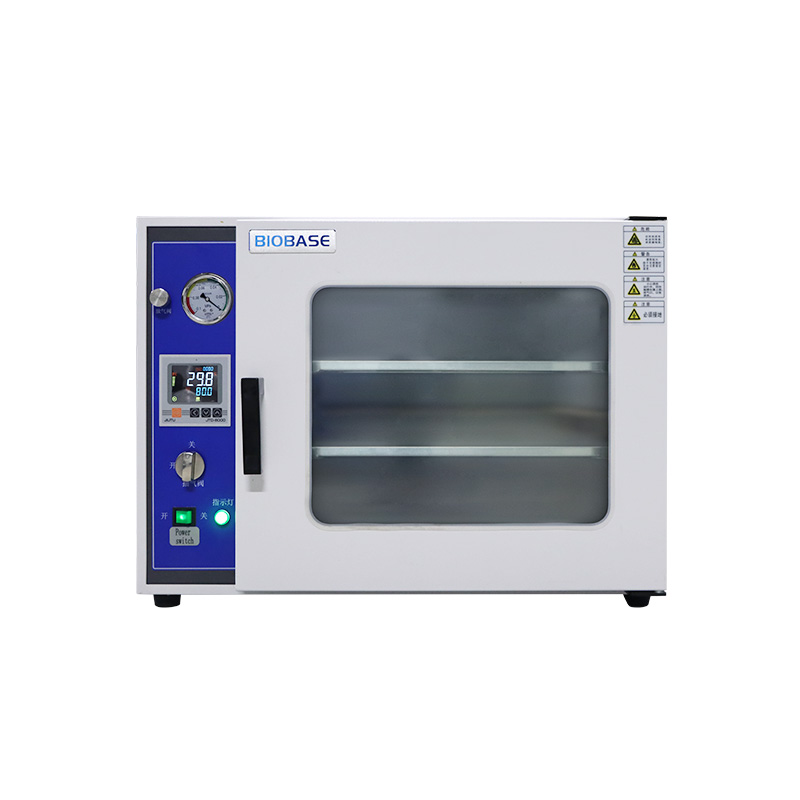

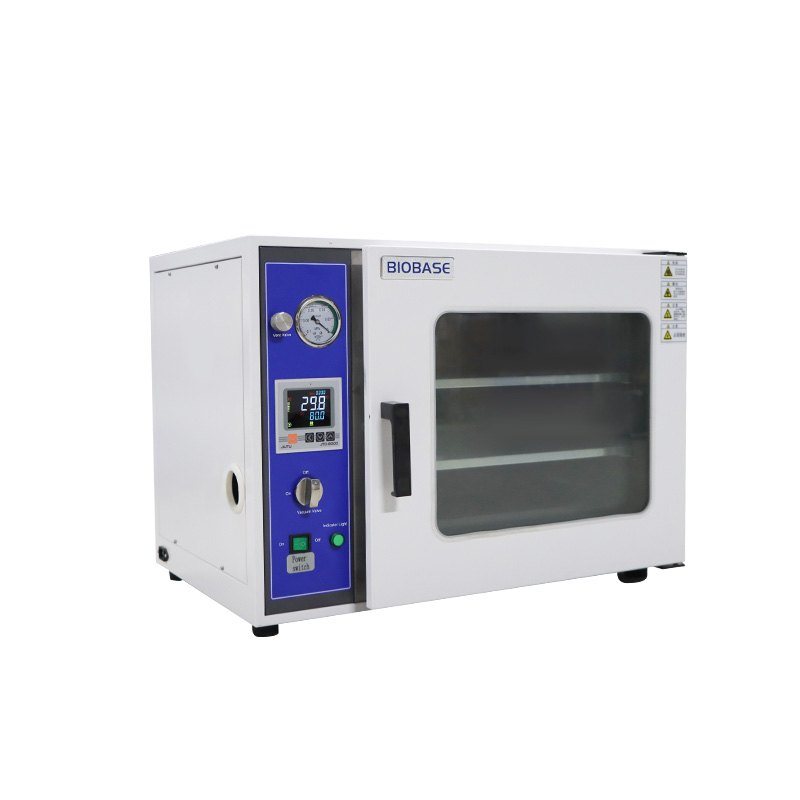

BIOBASE BJPX-ZK25A / BJPX-ZK50A / BJPX-ZK25B / BJPX-ZK50B Vacuum Drying Oven 25L 50L 25L 50L
BIOBASE BJPX-ZK25A / BJPX-ZK50A / BJPX-ZK25B / BJPX-ZK50B Vacuum Drying Oven 25L 50L 25L 50L — 2

Photography and technical data supplied by: BIOBASE · 2 images.

Ovens & incubation

Vacuum Drying Oven 25L 50L 25L 50L

BJPX-ZK25A / BJPX-ZK50A / BJPX-ZK25B / BJPX-ZK50B

Temperature and environmental control for culture, drying and sample preparation.

Made to orderPrice on request
Manufacturer
BIOBASE
Request a quote
Reply within 24 hoursValidated selection and configurationDelivery across mainland Portugal, Madeira, the Azores, and all European countries.

01 / Key features

Key features

  • Programmable temperature
  • Uniform controlled environment
  • Selectable capacities and accessories

02 / LaboratoriX technical datasheet

LaboratoriX technical datasheet

Technical parameters consolidated from the manufacturer documentation. Each column corresponds to one model; shared values are clearly identified. Final configuration, accessories, power supply and applicable documentation are confirmed with the quotation.

ParameterBJPX-ZK25ABJPX-ZK50ABJPX-ZK25BBJPX-ZK50B
Capacity25L50L25L50L
Temp. Range
Common to all modelsRT+10~250℃
Temp. Resolution
Common to all models0.1℃
Vacuum Degree
Common to all models＜133Pa
Working Chamber Material201 stainless steel201 stainless steel304 stainless steel304 stainless steel
Standard Accessory
Common to all modelsShelf*2, vacuum tube
Optional Accessory
Common to all modelsVacuum pump: 2XZ-2(AC220V, 50Hz; 220V, 60Hz; 110V, 60Hz), printer, RS485 interface, remote control function, USB interface, programmable temperature controller
Consumption600W1400W600W1400W
Power Supply
Common to all modelsAC220V, 50/60Hz(Standard); 110V, 50/60Hz(Optional)
Internal Size(W*D*H)300*300*275mm415*370*345mm300*300*275mm415*370*345mm
External Size(W*D*H)595*455*455mm720*555*535mm595*455*455mm720*555*535mm
Package Size(W*D*H)670*530*550mm770*630*620mm670*530*550mm770*630*620mm
Net Weight40kg59kg40kg59kg
Gross Weight45kg65kg45kg65kg

Photography and technical data supplied by BIOBASE.
