Photography and technical data supplied by: BIOBASE · 4 images.
Pharmaceutical testing

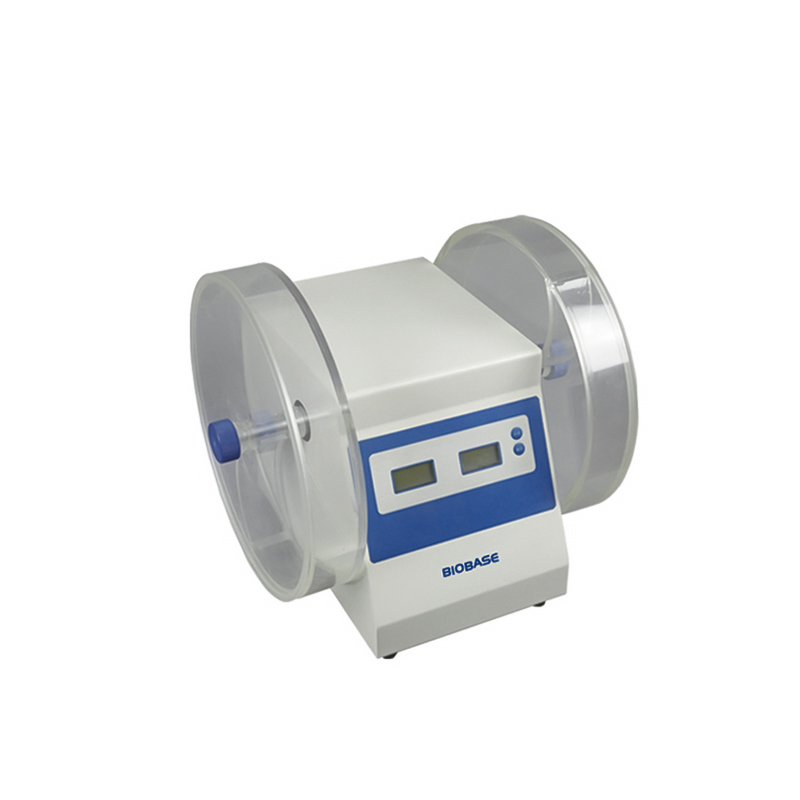

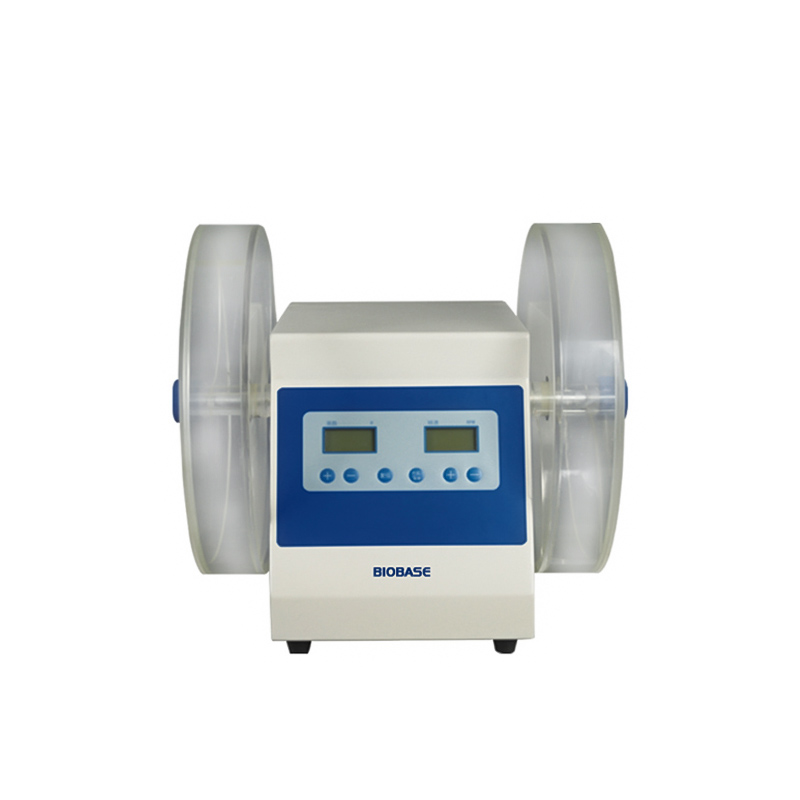

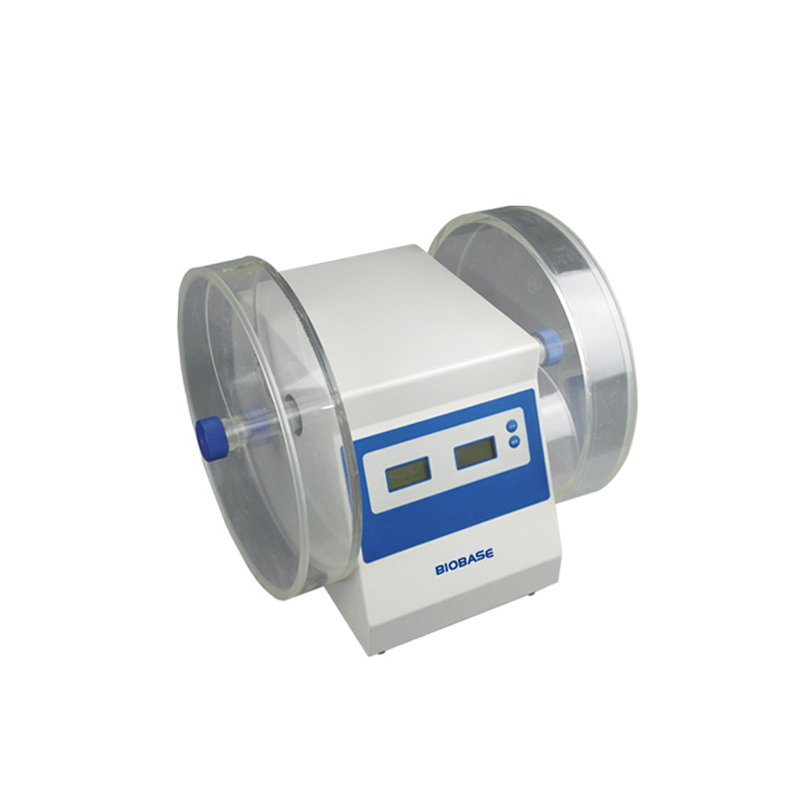

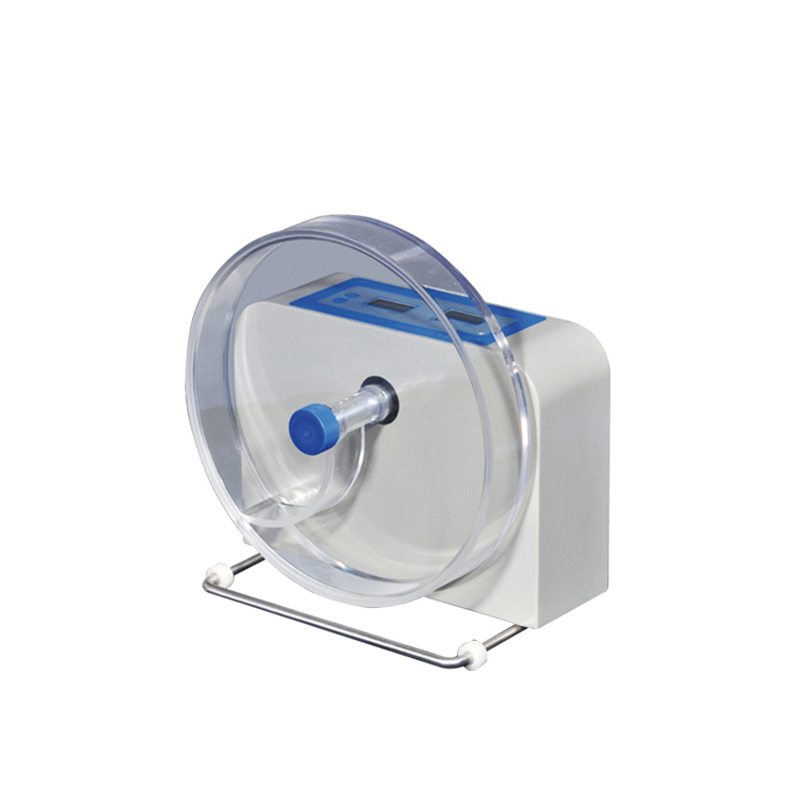

Tablet Friability Tester
TFT-1 / TFT-2 / TFT-3 / TFT-4
The Tablet Friability Tester is an essential quality control instrument used in the pharmaceutical industry to assess the durability of tablets by measuring their tendency to chip, crumble, or break under mechanical stress.
Key features
- Application-specific testing
- Controlled conditions and timing
- Repeatable results for quality control
- Manufacturer
- BIOBASE
01 / LaboratoriX technical datasheet
LaboratoriX technical datasheet
Technical parameters consolidated from the manufacturer documentation. Each column corresponds to one model; shared values are clearly identified. Final configuration, accessories, power supply and applicable documentation are confirmed with the quotation.
| Parameter | TFT-1 | TFT-2 | TFT-3 | TFT-4 |
|---|---|---|---|---|
| Cylinder Number | 2 | 2 | 2 | 1 |
| Cylinder Radius | ||||
| Cylinder Depth | ||||
| Tablet Fall Height | ||||
| Rotating Speed | 20–100 rpm | 25 rpm | 25 rpm | 25 rpm |
| Rotation Count | 5–900 turns | 100 turns | 5–900 turns | 10–900 turns |
| Consumption | 40 W | 20 W | 20 W | 50 W |
| Power Supply | ||||
| External Size(W*D*H) mm | 370 × 300 × 340 | 370 × 300 × 340 | 370 × 300 × 340 | 300 × 200 × 340 |
| Package Size(W*D*H) mm | 450 × 410 × 535 | 450 × 410 × 535 | 450 × 410 × 535 | 420 × 315 × 435 |
| Gross Weight (kg) | 13 | 12 | 12 | 8 |
MADE-TO-ORDER SUPPLY
Do you need this equipment?
Share the application, configuration, quantity and delivery location. We prepare a tailored proposal with the required documentation.
