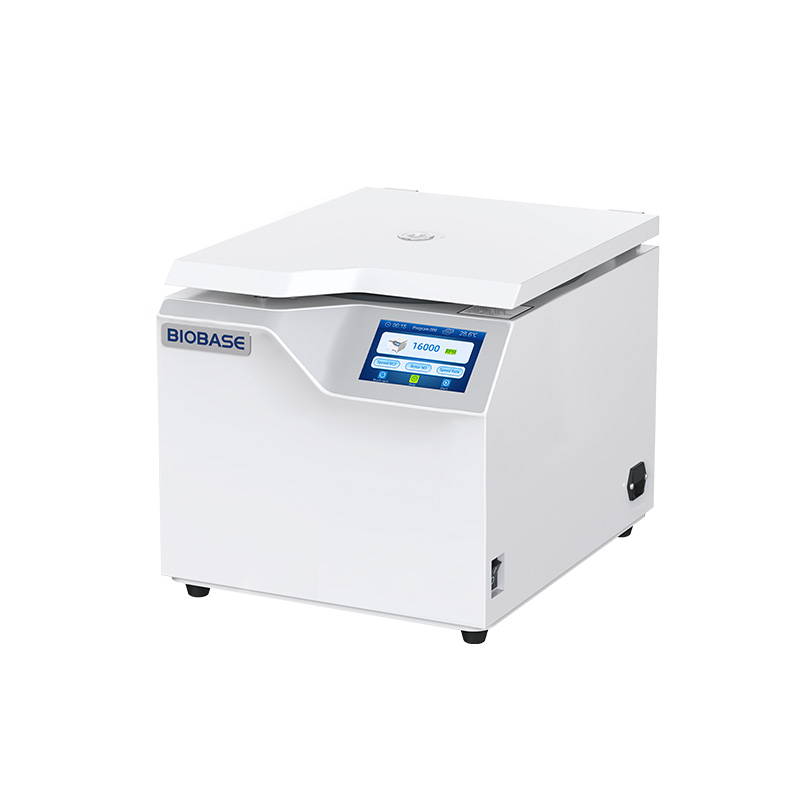

Table Top High Speed Centrifuge

BKC-TH16C

Centrifuge is a special equipment for rapid separation, concentration and purification of mixed substances with different sedimentation coefficients through centrifugal force generated by high-speed rotation. It is widely used in medical and health care, blood stations, biomedical engineering, animal and plant research and other fields.

Key features

Controlled speed and centrifugal force
Rotors matched to the vessel
Benchtop and refrigerated formats

Made to orderPrice on request

Manufacturer: BIOBASE

Request a quote

Reply within 24 hoursValidated selection and configurationDelivery across mainland Portugal, Madeira, the Azores, and all European countries.

01 / LaboratoriX technical datasheet

LaboratoriX technical datasheet

Technical parameters consolidated from the manufacturer documentation. Each column corresponds to one model; shared values are clearly identified. Final configuration, accessories, power supply and applicable documentation are confirmed with the quotation.

Parameter	BKC-TH16C
Max. Speed	16000r/min
Speed Accuracy	±20 rpm
Max. RCF	21695×g
Max. Volume	4 × 100 mL
Power Supply	Standard: AC220V, 50/60 Hz Optional: AC110V, 50/60 Hz
Timing Range	1 s~99h59min, Continuous/Short-span
Noise	≤65dB
External Size(LWH)	340 × 500 × 340 mm
Package Size(LWH)	566 × 576 × 432 mm
Net Weight	29 kg
Gross Weight	37 kg(220 V), 42 kg(110 V)

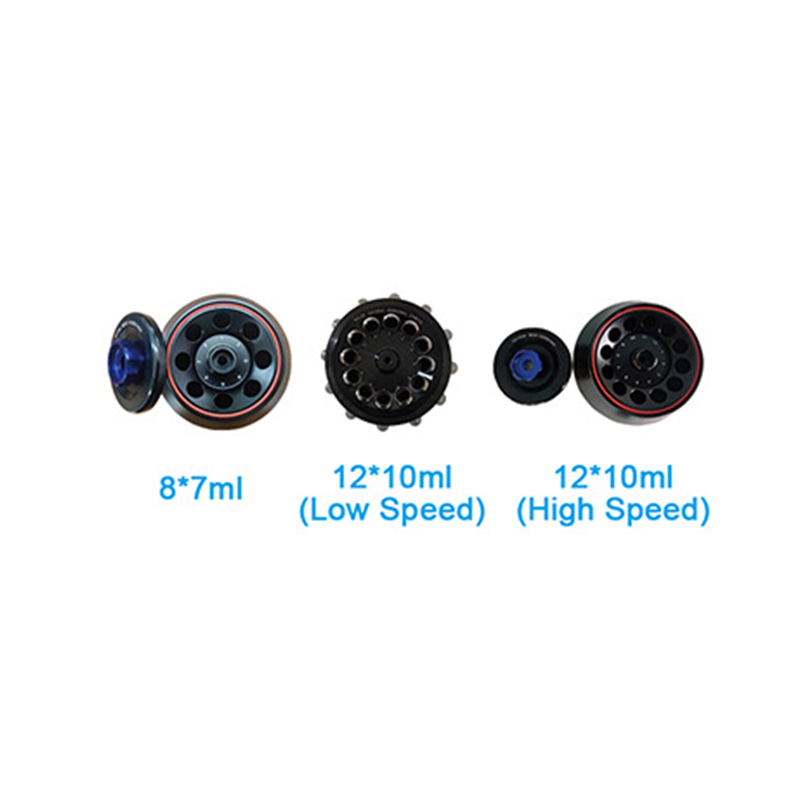

NO. 16M0003	Rotor Type: Angle Rotor · Volume: 8 × 7 mL · Max. Speed(r/min): 14000 · Max. RCF(×g): 16435 · Adapters: /
NO. 16M0004	Rotor Type: Angle Rotor · Volume: 12 × 10/15 mL(low speed) · Max. Speed(r/min): 6000 · Max. RCF(×g): 3743 · Adapters: 2/3/4/5/7 mL blood collection tube, 5 mL/7 mL blood collection tube, 15 mL(▲)
NO. 16M0005	Rotor Type: Angle Rotor · Volume: 12 × 10 mL(high speed) · Max. Speed(r/min): 12000 · Max. RCF(×g): 14328 · Adapters: 1.5/2 mL, 5 mL
NO. 16M0006	Rotor Type: Angle Rotor · Volume: 12 × 1.5/2 mL · Max. Speed(r/min): 16000 · Max. RCF(×g): 18031 · Adapters: 0.2 mL, 0.5 mL

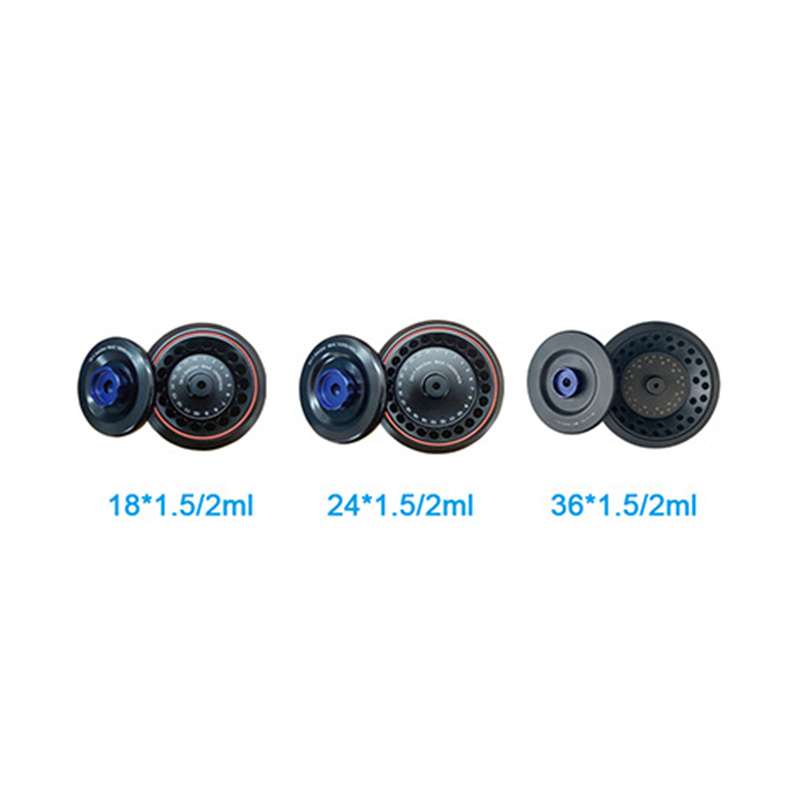

NO. 16M0007	Rotor Type: Angle Rotor · Volume: 18 × 1.5/2 mL · Max. Speed(r/min): 15000 · Max. RCF(×g): 18866 · Adapters: 0.2 mL, 0.5 mL
NO. 16M0008	Rotor Type: Angle Rotor · Volume: 24 × 1.5/2 mL · Max. Speed(r/min): 14000 · Max. RCF(×g): 19722 · Adapters: 0.2 mL, 0.5 mL
NO. 16M0090	Rotor Type: Angle Rotor · Volume: 36 × 1.5/2 mL · Max. Speed(r/min): 13000 · Max. RCF(×g): 19159 · Adapters: 0.2 mL, 0.5 mL

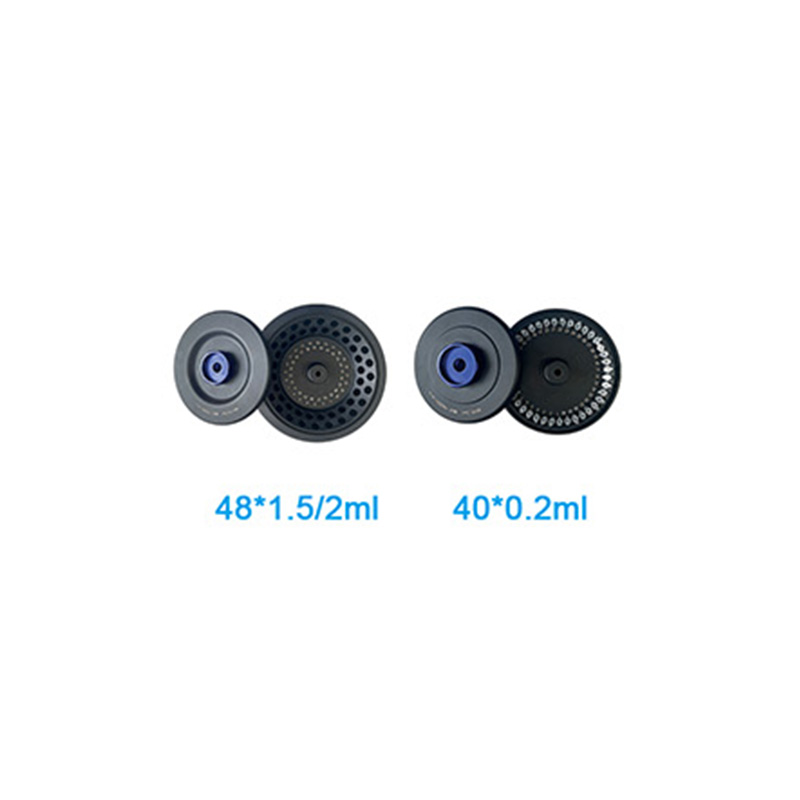

NO. 16M0091	Rotor Type: Angle Rotor · Volume: 48 × 1.5/2 mL · Max. Speed(r/min): 13000 · Max. RCF(×g): 19159 · Adapters: 0.2 mL, 0.5 mL
NO. 16M0085	Rotor Type: Angle Rotor · Volume: 40 × 0.2 mL · Max. Speed(r/min): 16000 · Max. RCF(×g): 21695 · Adapters: /

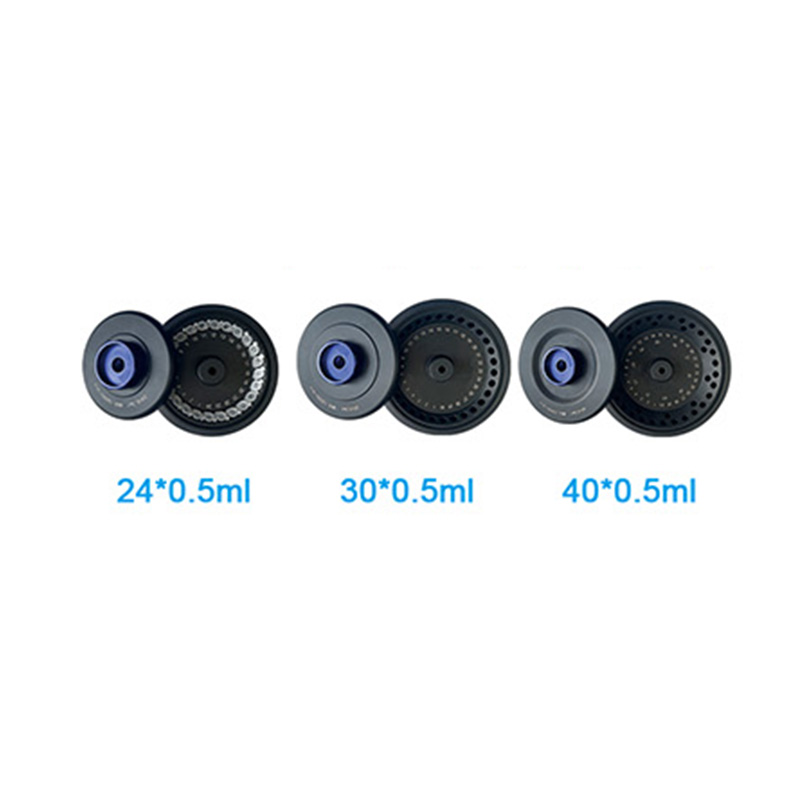

NO. 16M0086	Rotor Type: Angle Rotor · Volume: 24 × 0.5 mL · Max. Speed(r/min): 16000 · Max. RCF(×g): 20035 · Adapters: /
NO. 16M0087	Rotor Type: Angle Rotor · Volume: 30 × 0.5 mL · Max. Speed(r/min): 13000 · Max. RCF(×g): 15210 · Adapters: /
NO. 16M0088	Rotor Type: Angle Rotor · Volume: 40 × 0.5 mL · Max. Speed(r/min): 13000 · Max. RCF(×g): 15267 · Adapters: /

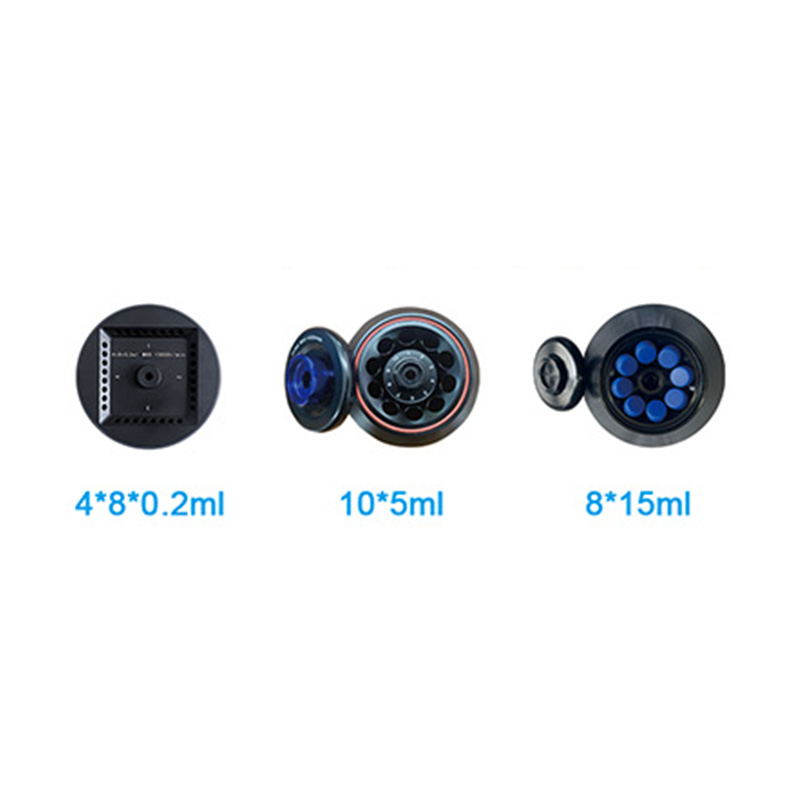

NO. 16M0089	Rotor Type: Angle Rotor · Volume: 4 × 8 × 0.2 mL pcr · Max. Speed(r/min): 13000 · Max. RCF(×g): 11941 · Adapters: /
NO. 16M0009	Rotor Type: Angle Rotor · Volume: 10 × 5 mL · Max. Speed(r/min): 14000 · Max. RCF(×g): 15339 · Adapters: 1.5/2 mL
NO. 16M00010	Rotor Type: Angle Rotor · Volume: 8 × 15 mL(▲) · Max. Speed(r/min): 12000 · Max. RCF(×g): 15294 · Adapters: 5 mL(▲)
NO. 16M00011	Rotor Type: Angle Rotor · Volume: 8 × 15 mL(●) · Max. Speed(r/min): 12000 · Max. RCF(×g): 15294 · Adapters: /
NO. 16M0017	Rotor Type: Angle Rotor · Volume: 10 × 15 mL · Max. Speed(r/min): 11000 · Max. RCF(×g): 13798 · Adapters: /

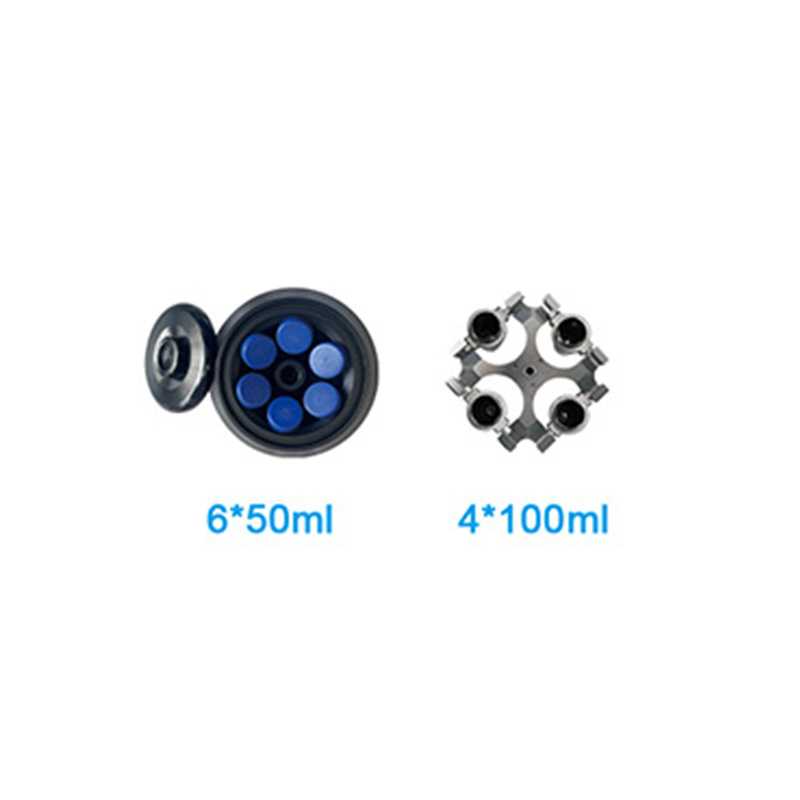

NO. 16M00012	Rotor Type: Angle Rotor · Volume: 6 × 50 mL(▲) · Max. Speed(r/min): 11000 · Max. RCF(×g): 13798 · Adapters: 15 mL(▲), 50 mL(●)
NO. 16M00013	Rotor Type: Angle Rotor · Volume: 6 × 50 mL(round/flat) · Max. Speed(r/min): 11000 · Max. RCF(×g): · · Adapters: /
NO. 16M0062–1	Rotor Type: Swing Rotor · Volume: 8 × 10 mL · Max. Speed(r/min): 4000 · Max. RCF(×g): 2522 · Adapters: 2/3/4 mL blood collection tube, 5/7 mL blood collection tube, 10 mL(▲)
NO. 16M0020	Rotor Type: Swing Rotor · Volume: 24 Capillaries · Max. Speed(r/min): 12000 · Max. RCF(×g): 14170 · Adapters: /
NO. 16M0066	Rotor Type: Swing Rotor · Volume: 4 × 100 mL · Max. Speed(r/min): 4000 · Max. RCF(×g): 2379 · Adapters: 2/3/4 mL blood collection tube, 5/7 mL blood collection tube
