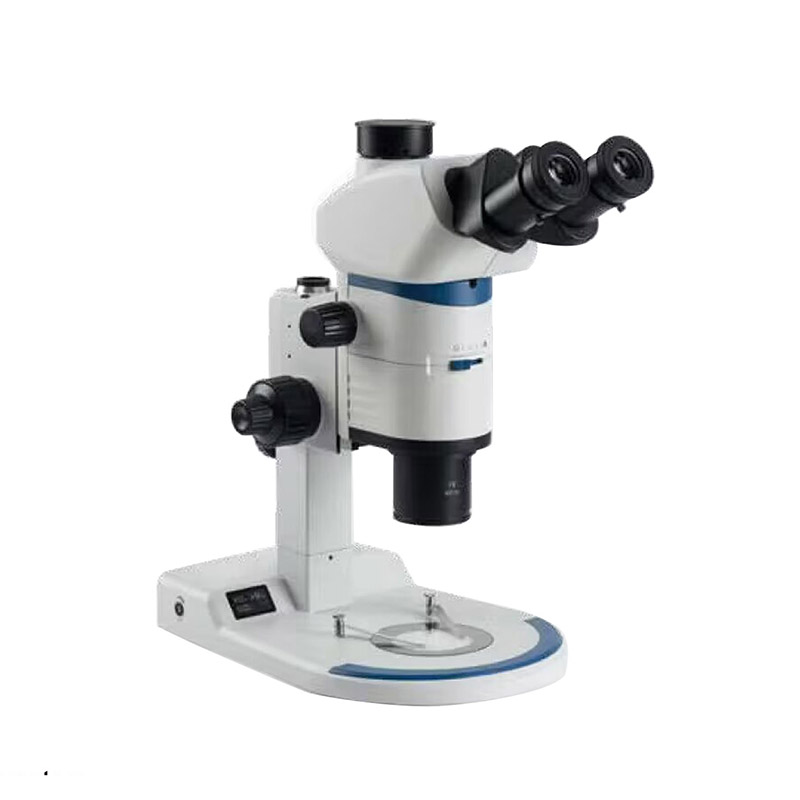

Stereo Microscope

BM-12TC

Stereo Microscope: sample observation and documentation for biological and materials research. Available capacity, functions and configuration depend on the selected model.

Key features

Application-specific optical system
Configurable objectives and illumination
Digital capture options

Made to orderPrice on request

Manufacturer: BIOBASE

Request a quote

Reply within 24 hoursValidated selection and configurationDelivery across mainland Portugal, Madeira, the Azores, and all European countries.

01 / LaboratoriX technical datasheet

LaboratoriX technical datasheet

Technical parameters consolidated from the manufacturer documentation. Each column corresponds to one model; shared values are clearly identified. Final configuration, accessories, power supply and applicable documentation are confirmed with the quotation.

Parameter	BM-12TC
Eyepiece	Working distance 80 mm
High eye point, large field of view, flat field eyepiece	Magnification
High eye point, large field of view, flat field eyepiece (2)	6.3x
High eye point, large field of view, flat field eyepiece (3)	80x
Zoom ratio	12.5:1
Total magnification	6.3x-80x
Interpupillary distance	50–76 mm
Nosepiece	2-port objective nosepiece for simultaneous mounting of 2 primary objectives
Body	Vertical arm type coarse and fine adjustment coaxial focusing mechanism, bracket lens body integrated, focusing stroke 50 mm, fine adjustment accuracy 0.002 mm
Light source	Intermediate magnification 1.5X; · with 1/4 λ waveplates, 360-degree rotation; · 20 W LED cold light source generator with brightness adjustment knob; · with flexible dual optical fibers, length 1m
Base	Ultra-thin base, multiple LEDs (total power 5 W), base with color temperature display and brightness display (color temperature range: 3000–5600K)
Base (2)	Optional 1: Flat base, without light source, with φ100 black and white worktable
Base (3)	Optional 2: Base with transmissive oblique Illumination (for use with external 5 W LED (white light) fiber optic Illumination), reflector can be switched 360° rotation (reflective and diffuse surface)Adjustable front and rear position

MADE-TO-ORDER SUPPLY

Do you need this equipment?

Share the application, configuration, quantity and delivery location. We prepare a tailored proposal with the required documentation.
