Photography and technical data supplied by: BIOBASE · 1 image.

Laboratory analysis

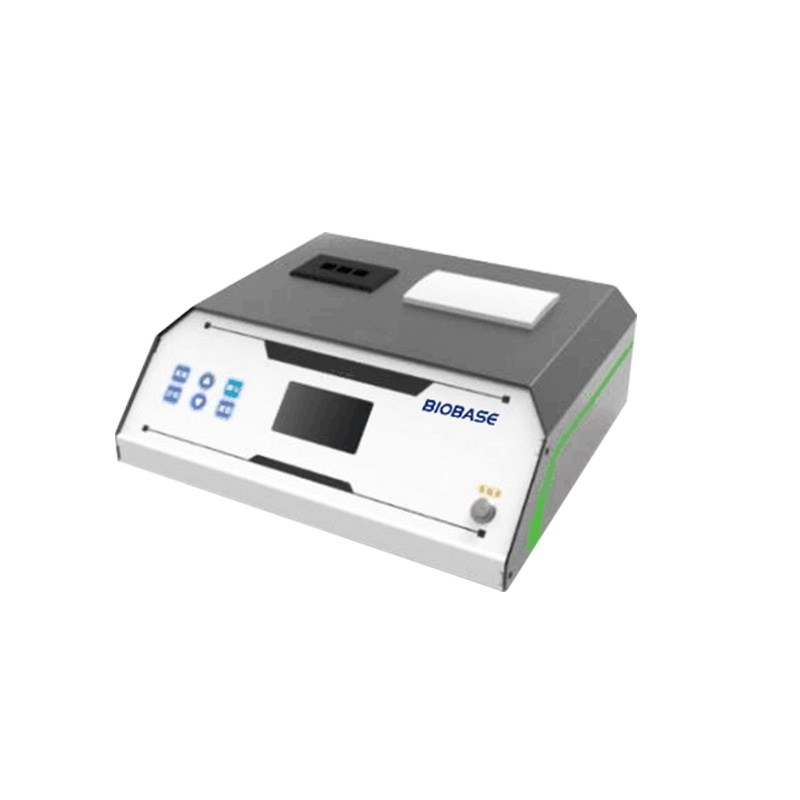

Soil Nutrient Tester

BK-Y6AG

Microcomputer control, digital circuit, programming design, LCD, AC and DC dual-purpose

Key features

  • Digital measurement
  • Method matched to the parameter
  • Repeatable results and data capture
Made to orderPrice on request
Manufacturer
BIOBASE
Request a quote
Reply within 24 hoursValidated selection and configurationDelivery across mainland Portugal, Madeira, the Azores, and all European countries.

01 / LaboratoriX technical datasheet

LaboratoriX technical datasheet

Technical parameters consolidated from the manufacturer documentation. Each column corresponds to one model; shared values are clearly identified. Final configuration, accessories, power supply and applicable documentation are confirmed with the quotation.

ParameterBK-Y6AG
Fu nction
Simultaneous extraction and determination of three nutrients of quick effect n, P and K in soil at one time, and scientific recommendation of fertilization amount
Range and Resolution
0.001–9999
Repeatability Error
≤ 0.05 % (0.001, potassium dichromate solution)
Stability
Drift less than 0.1 % (0.001, transmittance measurement) within 30 minutes.
Linear Error
≤ 0.2 % (0.002, copper sulfate detection)
Sensitivity
Red light ≥ 4.5 × 10–5, Blue light ≥ 3.17 × 10–3, Green light ≥2.35 × 10–3, Orange light ≥ 2.13 × 10–3
Wavelength Range
Red: 680 ± 2 nm; blue: 420 ± 2 nm; green: 510 ± 2 nm; Orange: 590 ± 4 nm
PH Value (PH)
Test range: 1–14; Accuracy: 0.01 (3) error: ± 0.1 (Extended)
Salt Content (conductivity)
Test range: 0.01 % ~ 1.00 %; Relative error: ±5 % (Extended)
Soil Moisture
Moisture unit: % (g/100 g); Moisture content test range: 0–100 %; Error less than 0.5 %
Test Speed
Test one soil sample (n, P, K) ≤ 30 minutes (including pretreatment time); Simultaneously measure 8 soil samples ≤ 1 hour (including pretreatment time)
Data Printing
Built in high-grade one button thermal printer
Power Supply
AC 220 ± 22 V, 50/60H z (Built-in lithium battery of the instrument can be used)
Package Size(L*W*H) mm
550 × 250 × 370+550 × 410 × 290
Gross Weight (kg)
13.6

Technical data supplied by BIOBASE.
