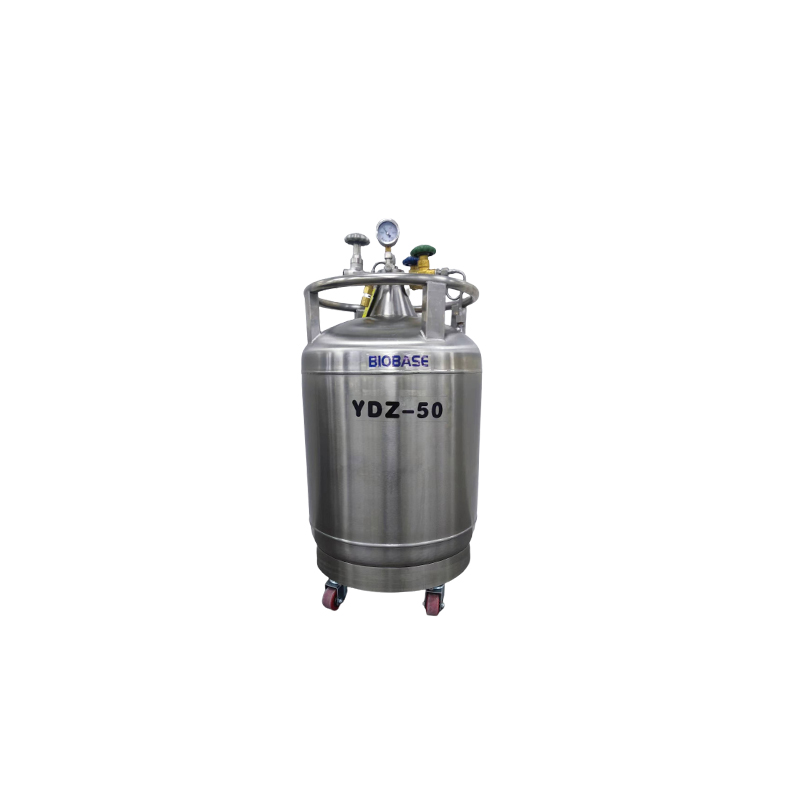

Self-pressurized Liquid Nitrogen Container YDZ Series

YDZ-30 / YDZ-50 / YDZ-100 / YDZ-200

The Self-Pressurized Liquid Nitrogen Container is a high-performance storage and transportation solution designed to safely contain and dispense liquid nitrogen. It utilizes a built-in pressure system to automatically dispense nitrogen without the need for an external pressurization source.

Key features

Monitored temperature
Alarms and sample protection
Capacity matched to inventory

Made to orderPrice on request

Manufacturer: BIOBASE

Request a quote

Reply within 24 hoursValidated selection and configurationDelivery across mainland Portugal, Madeira, the Azores, and all European countries.

01 / Accessories

Available accessories

Included accessories

Pc
1pc of 1.5m liquid nitrogen output hose

Final contents, accessory compatibility and availability are confirmed in the quotation for the selected model.

02 / LaboratoriX technical datasheet

LaboratoriX technical datasheet

Technical parameters consolidated from the manufacturer documentation. Each column corresponds to one model; shared values are clearly identified. Final configuration, accessories, power supply and applicable documentation are confirmed with the quotation.

Parameter	YDZ-30	YDZ-50	YDZ-100	YDZ-200
Capacity	Common to all modelsL · 30 · 50 · 100 · 200
Caliber	Common to all modelsmm · 50 · 50 · 50 · 50
Empty Weight	Common to all modelskg · 56 · 62.5 · 85 · 136.8
Outer Diameter	Common to all modelsmm · 404 · 454 · 556 · 656
Height	Common to all modelsmm · 885 · 998 · 1120 · 1330
Static Evaporation Rate	Common to all models% · 2.5 · 2 · 1.3 · 1.2
Standard Working Pressure	Common to all modelsMPa · 0.05 · 0.05 · 0.05 · 0.05
Maximum Working Pressure	Common to all modelsMPa · 0.09 · 0.09 · 0.09 · 0.09
Primary Safety Valve Opening Pressure	Common to all modelsMPa · 0.099 · 0.099 · 0.099 · 0.099
Second Safety Valve Opening Pressure	Common to all modelsMPa · 0.15 · 0.15 · 0.15 · 0.15
Pressure Gauge Range	Common to all modelsMPa · 0–0.25 · 0–0.25 · 0–0.25 · 0–0.25
Standard Accessory	Common to all modelspc · 1pc of 1.5m liquid nitrogen output hose · 1pc of 1.5m liquid nitrogen output hose · 1pc of 1.5m liquid nitrogen output hose · 1pc of 1.5m liquid nitrogen output hose
Package Size — mm	465 × 465 × 1035	505 × 505 × 1135	615 × 615 × 1290	700 × 700 × 1450
Gross Weight — kg	68	78.5	85	154.8

MADE-TO-ORDER SUPPLY

Do you need this equipment?

Share the application, configuration, quantity and delivery location. We prepare a tailored proposal with the required documentation.
