Laboratory analysis

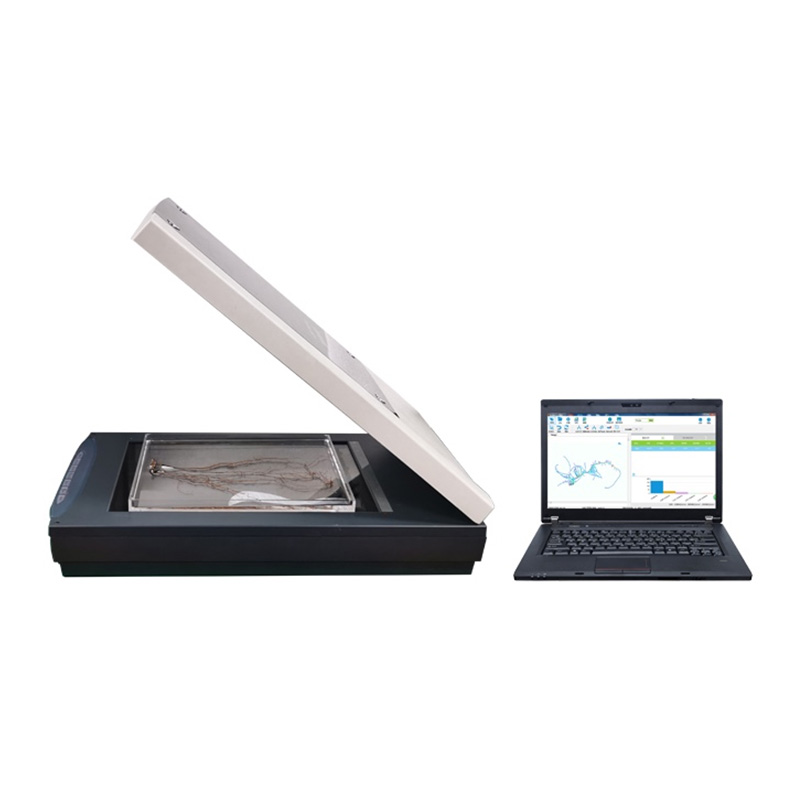

Root Scanner

RS-A

Root analysis system is based on image recognition technology, it is professionally used for root analysis of plants after washing the roots in vitro. It has the characteristics of convenience, efficiency and high accuracy, which can improve the work efficiency of practitioners, reduce labor costs.

Key features

  • Digital measurement
  • Method matched to the parameter
  • Repeatable results and data capture
Made to orderPrice on request
Manufacturer
BIOBASE
Request a quote
Reply within 24 hoursValidated selection and configurationDelivery across mainland Portugal, Madeira, the Azores, and all European countries.

01 / Accessories

Available accessories

Optional accessories

  • Computer

Final contents, accessory compatibility and availability are confirmed in the quotation for the selected model.

02 / LaboratoriX technical datasheet

LaboratoriX technical datasheet

Technical parameters consolidated from the manufacturer documentation. Each column corresponds to one model; shared values are clearly identified. Final configuration, accessories, power supply and applicable documentation are confirmed with the quotation.

ParameterRS-A
Power Supply
100–240 V, 50/60 Hz
Optional Accessory
computer
Package Size
805 × 235 × 395 mm
Net Weight
8 kg
Gross Weight
9.7 kg
Root Tip
Number: The total number of root tips, equal to the number of termination points
Root Tip (2)
Range · 0–1000
Root Tip (3)
Accuracy · Error <5 %
Root System
Length: Total root system length, including main root and secondary roots
Root System (2)
Range · 0–10000 mm
Root System (3)
Accuracy · Error <3.65 %
Root System (4)
Average Diameter: The average diameter of the root system
Root System (5)
Range · 0–20 mm
Root System (6)
Accuracy · Error<0.04 %
Root System (7)
Projected Area: The projected area of the root system as a whole
Root System (8)
Range · 0–200000 mm 2
Root System (9)
Accuracy · Error<4.02 %
Root System (10)
Surface Area: The overall surface area
Root System (11)
Range · 0–1000000 mm 2
Root System (12)
Accuracy · Error <3.75 %
Root System (13)
Volume: Overall volume
Root System (14)
Range · 0–2000000000 mm 3
Root System (15)
Accuracy · Error <3.82 %

Technical data supplied by BIOBASE.
