Laboratory analysis

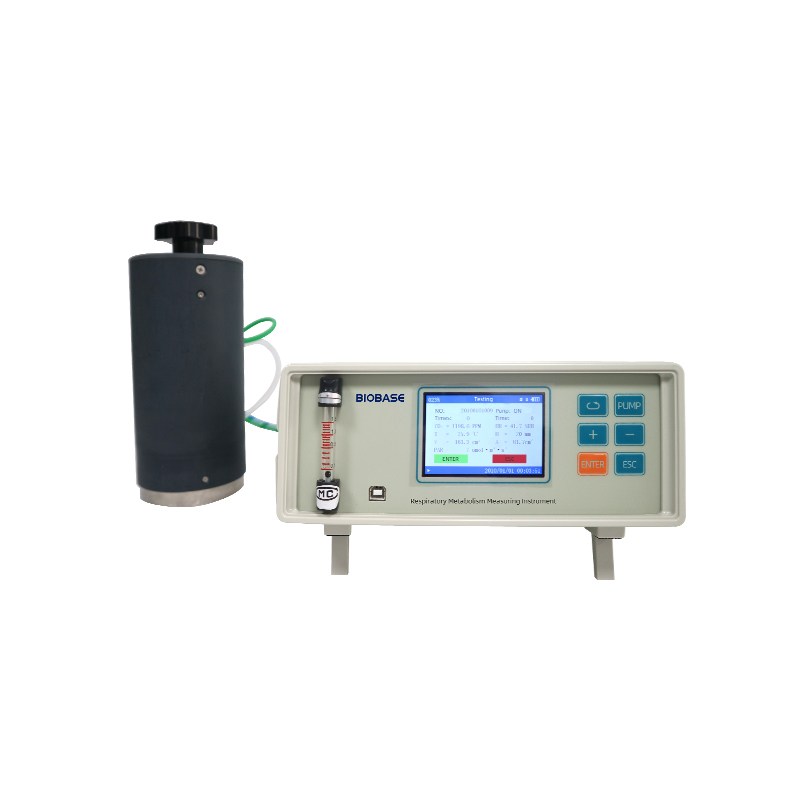

Respiratory Metabolism Measuring Instrument

RMM-3080E

BIOBASE\'s Respiratory Metabolism Measuring Instrument is a cutting-edge device designed to accurately measure and analyze respiratory parameters, offering vital insights into metabolic processes.

Key features

  • Digital measurement
  • Method matched to the parameter
  • Repeatable results and data capture
Made to orderPrice on request
Manufacturer
BIOBASE
Request a quote
Reply within 24 hoursValidated selection and configurationDelivery across mainland Portugal, Madeira, the Azores, and all European countries.

01 / Accessories

Available accessories

Optional accessories

  • Soil moisture temperature sensor

Final contents, accessory compatibility and availability are confirmed in the quotation for the selected model.

02 / LaboratoriX technical datasheet

LaboratoriX technical datasheet

Technical parameters consolidated from the manufacturer documentation. Each column corresponds to one model; shared values are clearly identified. Final configuration, accessories, power supply and applicable documentation are confirmed with the quotation.

ParameterRMM-3080E
CO2 Analysis
Measuring Range: 0–5000ppm, Resolution: 0.1ppm; Accuracy: 3ppm; CO2 difference acquisition can be completed within 1 second
Temperature
Measuring Range: -20–80 °C; Resolution: 0.1 °C; Error: ±0.2 °C
Humidity
Measurement Range: 0–85 %; Resolution: 0.1 %; Error: ±1 %
Photosynthetically Active Radiation
Measurement Range: 0–3000µmol/(m²·s); Precision: ±5µmol/(m²·s); Response Wavelength Range: 400–700 nm
Flow Measurement
Flow measurement: Glass rotor flow meter, flow rate settable within the range of 0.2–1.5 L; Error: 1 %; Accuracy <±0.2 % within the range of 0.2–1 L/min; A miniature electronic flow meter is optional, with flow rate settable within the range of 0.2–1.5 L. Resolution: 0.0001 L.
Breathing Chamber Size
Diameter: 100 mm, height: 180 mm
Operating Environment
Temperature: -20 °C~60 °C, relative humidity: 0–85 %(no water vapor condensation)
Data Storage
Memory 2G, can be expanded to 16G
Data Transmission
USB connection to computer can directly export data
Display
LCD
Optional Accessory
Soil moisture temperature sensor
Power Supply
DC8.4 V lithium battery, can work continuously for 12 hours; AC220V 50/60 Hz(Standard); AC110V 50/60 Hz(Optional)
Product Size(W*D*H)
260 × 260 × 130 mm
Net Weight
3.25 kg
Packing Size(W*D*H)
550 × 400 × 250 mm
Gross Weight
9 kg

Technical data supplied by BIOBASE.
