Photography and technical data supplied by: BIOBASE · 1 image.

Balances

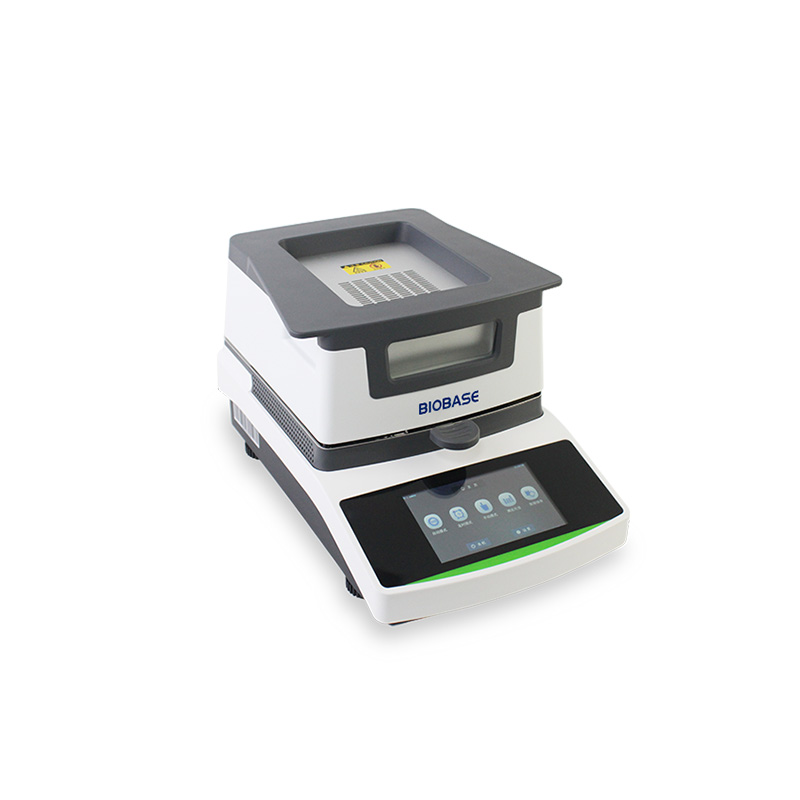

Rapid Moisture Meter

BM-E50 / BM-E10 / BM-E01

The heat dissipation unit adopts the aluminum alloy integrated heat dissipation panel to absorb the extra heat for effective heat dissipation;

Key features

  • High weighing resolution
  • Model-specific calibration
  • Data-recording interface
Made to orderPrice on request
Manufacturer
BIOBASE
Request a quote
Reply within 24 hoursValidated selection and configurationDelivery to the UK, all European countries, USA, Canada, Mexico and South America.

01 / LaboratoriX technical datasheet

LaboratoriX technical datasheet

Technical parameters consolidated from the manufacturer documentation. Each column corresponds to one model; shared values are clearly identified. Final configuration, accessories, power supply and applicable documentation are confirmed with the quotation.

ParameterBM-E50BM-E10BM-E01
Weighing Accuracy(d)0.005 g0.001 g0.0001 g
Moisture Readability0.01 %0.01 %0.001 %
Moisture Range MC%0.00 % ~100.00 %0.00 % ~100.00 %0.000 % ~100.000 %
Solid Content Range DC%100.00 %~0.00 %100.00 %~0.00 %100.000 %~0.000 %
Weight SensorHBM strain gauge forceElectromagnetic forceElectromagnetic force
Weighing Range
Common to all models124 g (optional 220 g/300 g)
Calibration Method
Common to all modelsExternal weight calibration (Single-Point & Multi-Points)
Repeatability
Common to all models≤3d
Heating Source
Common to all modelsHalogen lamp
Temperature Sensor
Common to all modelsPT-1000 High-precision platinum-rhodium temperature sensor
Heating Program
Common to all modelsStandard heating, step heating, rapid heating, soft heating
Heating Temperature Rang
Common to all models40–200 °C
Temperature Accuracy
Common to all models0.1 °C, PID control
Heating Time Setting
Common to all models1–99 minutes(1 s interval)
Stop Mode
Common to all modelsTiming, manual, automatic
Data Storage
Common to all models2004 sets
Display Data
Common to all modelsMC%(Moisture), DC%(Solid content), ATRO dry, ATRO wet, sample weight, moisture weight, dryer sample weight, temperature, time, analysis curve
Function
Common to all modelsCustom Measurement Method, U Disk System Upgrade
Display& Operating
Common to all models5-inch LCD touch screen
Sample Tray(去掉）
Common to all models50 aluminum sample trays with 90 mm diameter, optional stainless steel sample tray(去掉）
Sample Height
Common to all models24.5 mm
Sample Pan（Standard）
Common to all modelsAluminum Sample Pan(50pcs), Stainless Steel Sample Pan(4pcs)
Thermal Protection
Common to all modelsAluminum High Temperature Radiator
Baud rate
Common to all models2400,4800,9600,19200
Data Communication
Common to all modelsRS232/RS485(can be connected to a computer, printer, PLC, etc.)
Print Function
Common to all modelsOptional Printer (thermal, needle, adhesive, etc.)
Use Environment
Common to all models1–38 °C (18–25 °C ideal temperature)
Consumption
Common to all models500 W
Power Supply
Common to all modelsAC220/110 V;50/60 Hz
External Size (W*D*H)
Common to all models350 × 220 × 205 mm
Net Weight5.8 kg8.8 kg8.8 kg
Packing Size(W*D*H)
Common to all models520 × 380 × 410 mm
Gross Weight7.5 kg10 kg10 kg

Technical data supplied by BIOBASE.
