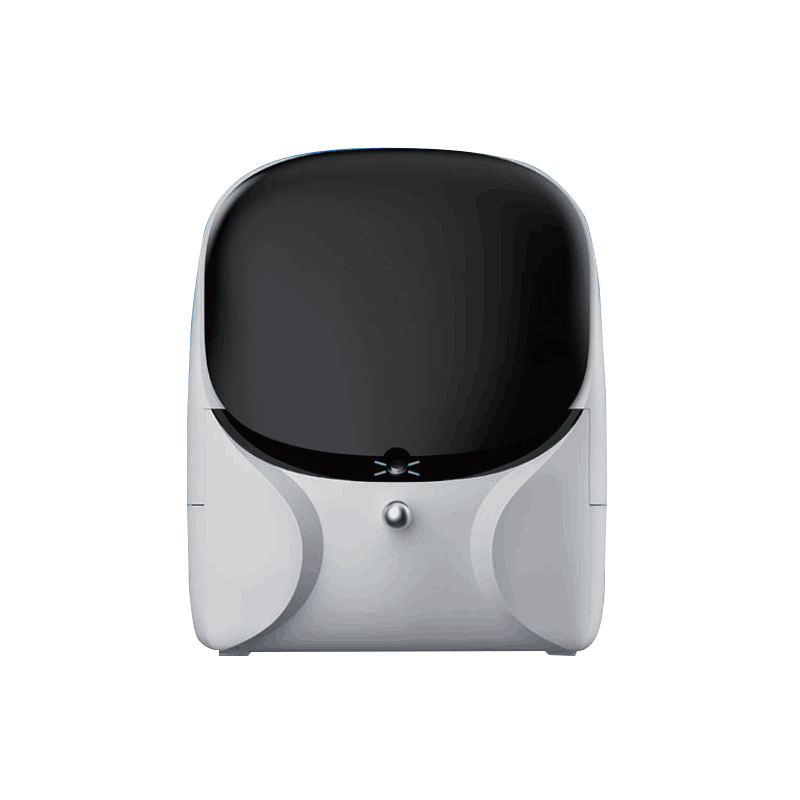

Nucleic Acid Fragment Analyzer

Nucleic-acid preparation, extraction and amplification for molecular-biology workflows.

Made to orderPrice on request

Manufacturer: BIOBASE

Reply within 24 hoursValidated selection and configurationDelivery across mainland Portugal, Madeira, the Azores, and all European countries.

01 / Key features

Key features

Molecular-biology workflow
Thermal control or automated extraction
Configuration matched to required throughput

02 / LaboratoriX technical datasheet

LaboratoriX technical datasheet

Technical parameters consolidated from the manufacturer documentation. Each column corresponds to one model; shared values are clearly identified. Final configuration, accessories, power supply and applicable documentation are confirmed with the quotation.

Parameter	Nucleic Acid Fragment Analyzer
Reagent Type	Adaptable Sizing Range · Sensitivity · Quanitification Range · Sample Loading · Integrity · Sample Scalability · Chips
DNA 1K	35-1,000 bp dsDNA fragment · 0.1 ng/μL · 0.1 -50 ng/μL · 1μL · - · 1-16 · 6
High Sensitivity DNA 1K	35-1,000 bp dsDNA fragment · 5 pg/μL · 10-1,000 pg/μL · 2μL · - · 1-16 · 6
DNA 5K	100-5,000 bp dsDNA fragment · 0.1 ng/μL · 0.1-50 ng/μL · 1μL · - · 1-16 · 6
High Sensitivity DNA 5K	100-5,000 bp dsDNA fragment · 5 pg/μL · 10-1,000 pg/μL · 2μL · - · 1-16 · 6
Genomic DNA	200-60,000+ bp dsDNA fragment · 0.5 ng/μL · 10-100 ng/μL · 1μL · √ · 1-16 · 6
High Sensitivity Genomic DNA	200-60,000+ bp dsDNA fragment · 20 pg/μL · 0.5-10 ng/μL · 2μL · √ · 1-16 · 6
cfDNA	50-800 bp ds DNA fragment · 20 pg/μL · 100-4,000 pg/μL · 2μL · - · 1-16 · 6
RNA	Eukaryotic/ProkaryoticTotal RNA · 5 ng/μL · 25-500 ng/μL · 1μL · √ · 1-16 · 6
High Sensitivity RNA	Eukaryotic/ProkaryoticTotal RNA · 100 pg/μL · 500-10,000 pg/μL · 2μL · √ · 1-16 · 6
PN	Product
M000047	Fragment Analyzer-BK-NAF96
M000058	DNA 1K Fragment Analysis Reagent Kit
M000059	DNA 5K Fragment Analysis Reagent Kit
M000060	High Sensitivity DNA 1K Fragment Analysis Reagent Kit
M000061	High Sensitivity DNA 5K Fragment Analysis Reagent Kit
M000062	Genomic DNA Fragment Analysis Reagent Kit
M000063	High Sensitivity Genomic DNA Fragment Analysis Reagent Kit
M000064	cfDNA Fragment Analysis Reagent Kit
M000065	RNA Fragment Analysis Reagent Kit
M000066	High Sensitivity RNA Fragment Analysis Reagent Kit
Dimensions (W XD X H)	590 mmx420 mmx500 mm
Net Weight	25 kg
Power	500 VA
Power Requirements	AC 100~240 V,50/60 Hz
Operating Environment	Temperature:-10°C~50°C Relative humidity: 15%-85%(non-condensing) Altitude: below 3000 meter
Computer Configuration	CPU: 15-13500H 2.6GHz Memory:16 GB Hard disk: 500 GB Operating system: Microsoft Windows 11
