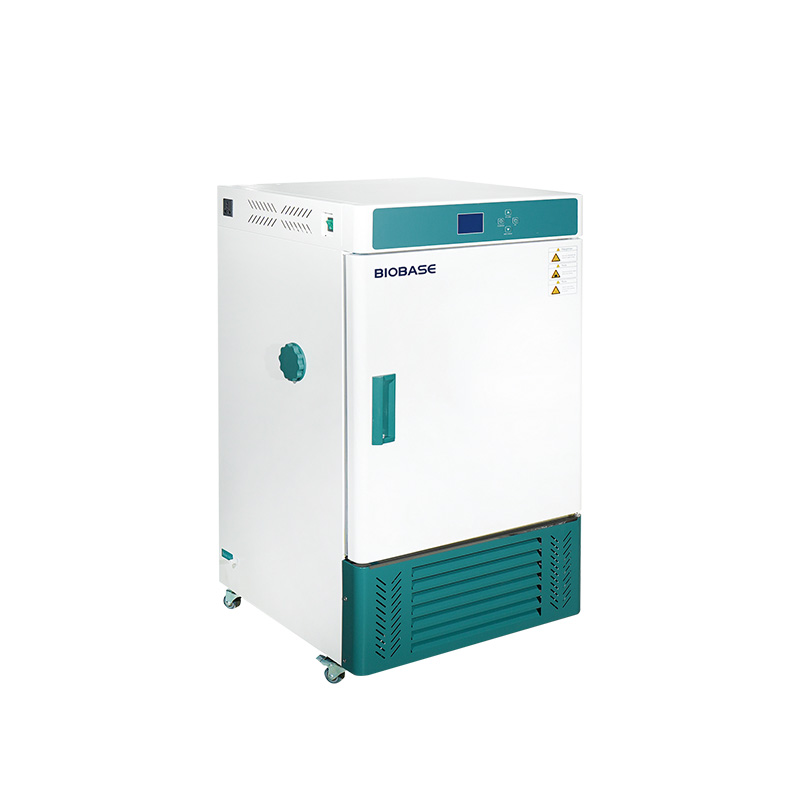

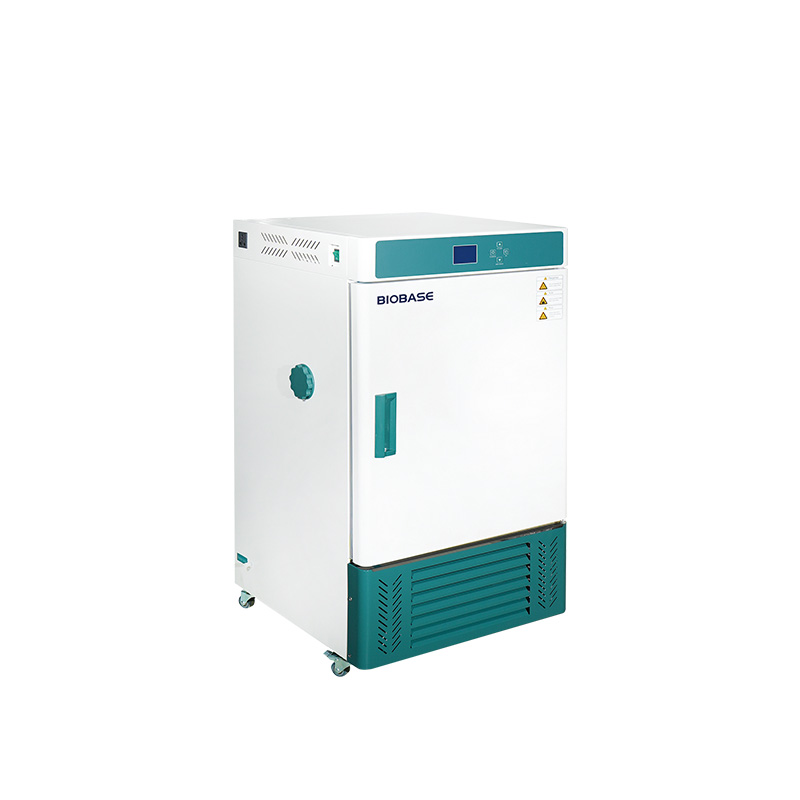

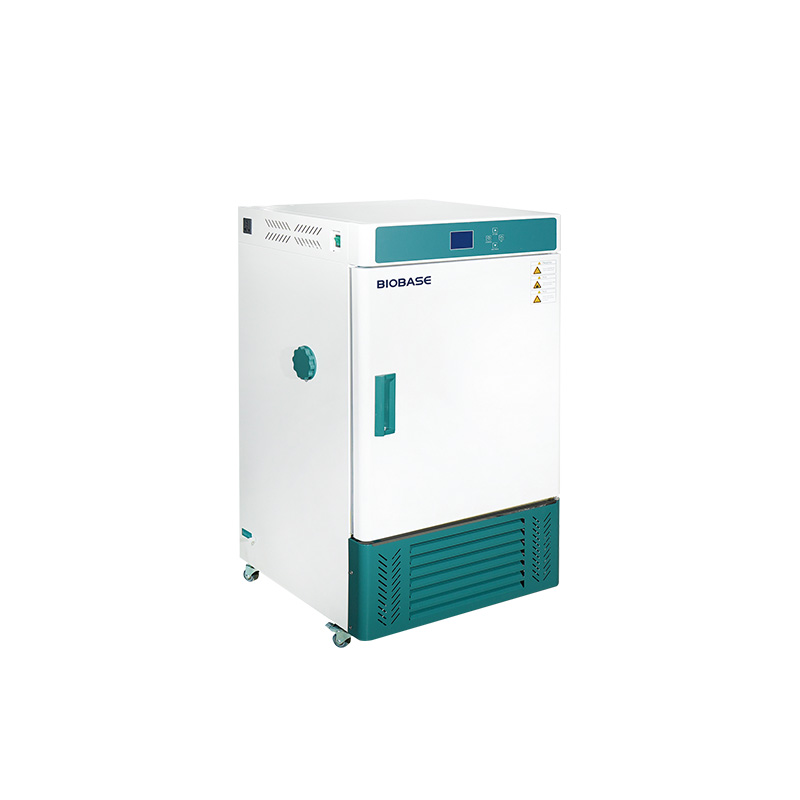

Multi-program BOD Incubator

BJPX-B70P / BJPX-B150P / BJPX-B250P

Suitable for various constant temperature experiments and environmental tests at 0–65C, water analysis, microbe culture of BOD/bacteria, plant breeding, and sample preservation.

Key features

Programmable temperature
Uniform controlled environment
Selectable capacities and accessories

Made to orderPrice on request

Manufacturer: BIOBASE

Request a quote

Reply within 24 hoursValidated selection and configurationDelivery across mainland Portugal, Madeira, the Azores, and all European countries.

01 / Accessories

Available accessories

Optional accessories

Shelf，RS485 port， printer， recorder， Remote Control， wireless messaging alarm. U-Disk data storage

Final contents, accessory compatibility and availability are confirmed in the quotation for the selected model.

02 / LaboratoriX technical datasheet

LaboratoriX technical datasheet

Technical parameters consolidated from the manufacturer documentation. Each column corresponds to one model; shared values are clearly identified. Final configuration, accessories, power supply and applicable documentation are confirmed with the quotation.

Parameter	BJPX-B70P	BJPX-B150P	BJPX-B250P
Function	Common to all modelsTemp. Range · 0–65 °C · 0–65 °C · 0–65 °C
Function (2)	Common to all modelsTemp. Resolution Ratio · 0.1 °C · 0.1 °C · 0.1 °C
Function (3)	Common to all modelsTemp. Motion · High Temp:±0.5 °C Low Temp:±1 °C · High Temp:±0.5 °C Low Temp:±1 °C · High Temp:±0.5 °C Low Temp:±1 °C
Function (4)	Common to all modelsTemp. Uniformity · ±1.5 °C · ±1.5 °C · ±1.5 °C
Structure	Common to all modelsnner Chamber · Mirror Stainless Steel · Mirror Stainless Steel · Mirror Stainless Steel
Structure (2)	Common to all modelsOuter Shell · Cold rolling steel electrostatic spraying exterior · Cold rolling steel electrostatic spraying exterior · Cold rolling steel electrostatic spraying exterior
Structure (3)	Common to all modelsInsulation Layer · Polyurethane · Polyurethane · Polyurethane
Structure (4)	Common to all modelsHeater · Stainless steel heater · Stainless steel heater · Stainless steel heater
Structure (5)	Common to all modelsPower Rating · 0.8 kW · 1.0 kW · 1.2 kW
Structure (6)	Common to all modelsCompressor · Air cooled hermetic compressor · Air cooled hermetic compressor · Air cooled hermetic compressor
Structure (7)	Common to all modelsCryogen · R134a · R134a · R134a
Structure (8)	Common to all modelsDefrost Structure · Automatic control intelligent defrosting · Automatic control intelligent defrosting · Automatic control intelligent defrosting
Structure (9)	Common to all modelsTest Hole · Inner diameter 43 mm(one) · Inner diameter 43 mm(one) · Inner diameter 43 mm(one)
Structure (10)	Common to all modelsControlled External Power Supply · Outer universal socket(one), inner waterproof socket(one) · Outer universal socket(one), inner waterproof socket(one) · Outer universal socket(one), inner waterproof socket(one)
Control	Common to all modelsTemp. Control Mode · 30-stage LCD program · 30-stage LCD program · 30-stage LCD program
Control (2)	Common to all modelsTemp. Setting Mode · Touch button setting · Touch button setting · Touch button setting
Control (3)	Common to all modelsTemp. Display Mode · Measuring temperature:LCD upper row;Setting temperature:LCD lower row · Measuring temperature:LCD upper row;Setting temperature:LCD lower row · Measuring temperature:LCD upper row;Setting temperature:LCD lower row
Control (4)	Common to all modelsTimer · 0–99.9 h30 segment(with timing wait function) · 0–99.9 h30 segment(with timing wait function) · 0–99.9 h*30 segment(with timing wait function)
Control (5)	Common to all modelsOperation Function · Program operation · Program operation · Program operation
Control (6)	Common to all modelsSensor · PT100 · PT100 · PT100
Control (7)	Common to all modelsAdditional Function · Loop self diagnosis, sensor fault alarm · Loop self diagnosis, sensor fault alarm · Loop self diagnosis, sensor fault alarm
Control (8)	Common to all modelsSafety Device · Over temperature alarm · Over temperature alarm · Over temperature alarm
Specification	Common to all modelsInner Chamber Size(WLH)(mm) · 415 × 350 × 500 · 490 × 400 × 750 · 500 × 515 × 950
Specification (2)	Common to all modelsExterior Size(WLH)(mm) · 571 × 591 × 1051 · 646 × 641 × 1301 · 656 × 741 × 1501
Specification (3)	Common to all modelsPacking Size(WLH) (mm) · 680 × 676 × 1235 · 751 × 730 × 1490 · 761 × 830 × 1690
Specification (4)	Common to all modelsVolume · 70 L · 150 L · 250 L
Specification (5)	Common to all modelsLoad Per Rack · 15 kg · 15 kg · 15 kg
Specification (6)	Common to all modelsShelf Number · 5 · 9 · 12
Specification (7)	Common to all modelsShelf Space · 60 mm · 60 mm · 60 mm
Specification (8)	Common to all modelsSupply(50/60 Hz) Current Rating · AC220V/2.3 A · AC220V/3.6 A · AC220V/5.5 A
Specification (9)	Common to all modelsNW/GM(kg) · 69/92 · 86/114 · 100/139
Accessory	Common to all modelsShelf · 2 · 2 · 2
Accessory (2)	Common to all modelsShell Frame · 4 · 4 · 4
