Mixing & shaking

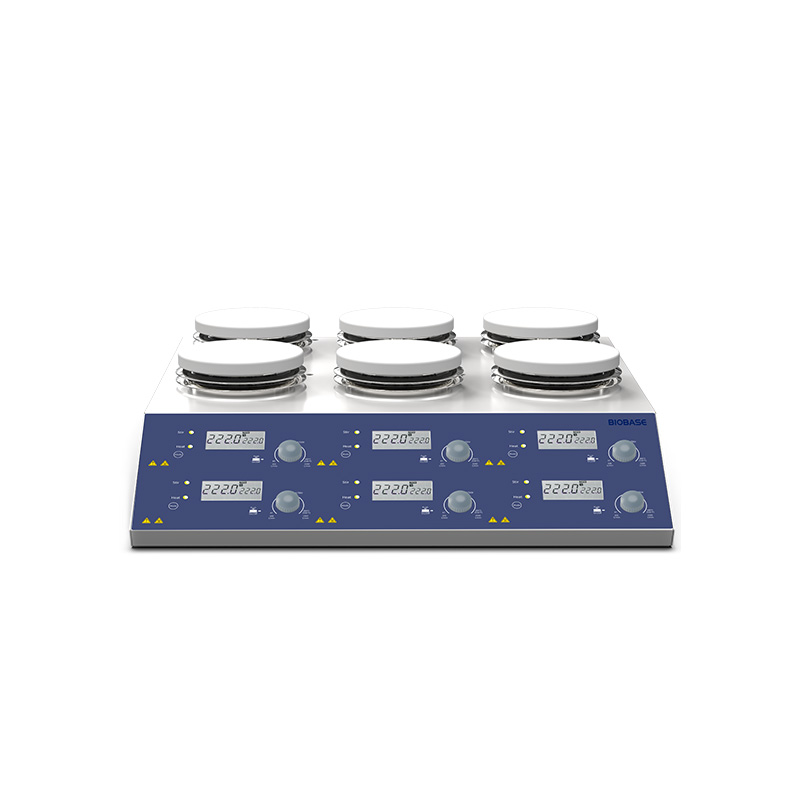

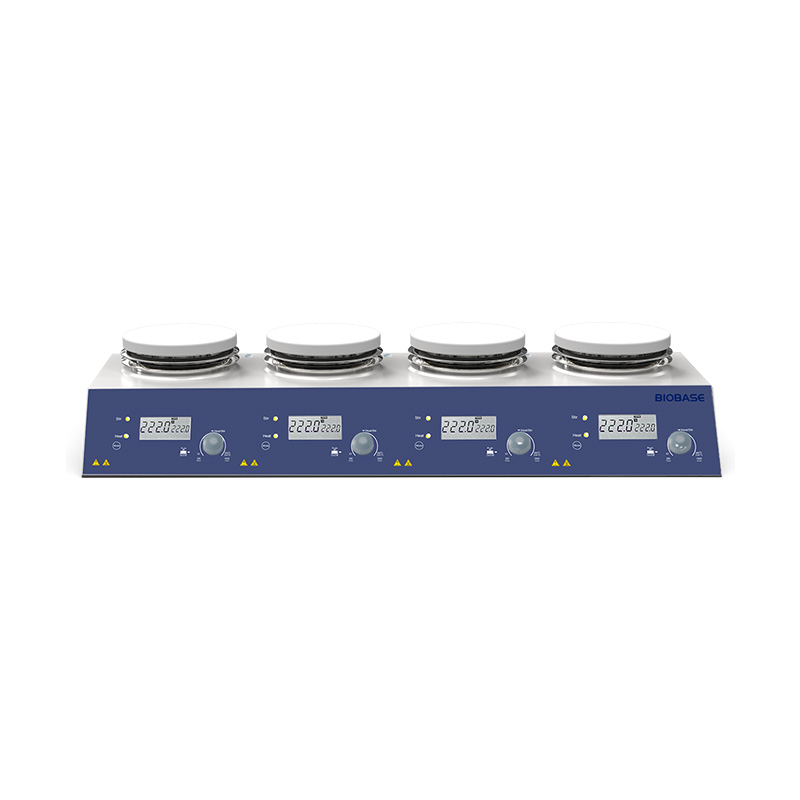

Multi-position Hotplate Magnetic Stirrer

MS-H280-S4 / MS-H280-S6

Compatible with various heating block or reaction vessels for a variety of application scenario Ultra space-saving with 4/6 channel integrated in one instrument

Key features

  • Adjustable shaking speed
  • Controlled temperature
  • Selectable platforms and holders
Made to orderPrice on request
Manufacturer
BIOBASE
Request a quote
Reply within 24 hoursValidated selection and configurationDelivery across mainland Portugal, Madeira, the Azores, and all European countries.

01 / LaboratoriX technical datasheet

LaboratoriX technical datasheet

Technical parameters consolidated from the manufacturer documentation. Each column corresponds to one model; shared values are clearly identified. Final configuration, accessories, power supply and applicable documentation are confirmed with the quotation.

ParameterMS-H280-S4MS-H280-S6
Work Plate Dimension
Common to all modelsφ134 mm
Work Plate Material
Common to all modelsAluminum with ceramic coating
Motor Type
Common to all modelsBrushless DC motor
Motor Rating Output5 W*45 W*6
Heating Power600 W*4600 W*6
Total Power605 W*4605 W*6
Power Supply
Common to all models100–120 V,60 Hz;200–240 V,50 Hz
Stirring Positions46
Max. Stirring Quantity (H2O)3 L*43 L*6
Max. Stirring Quantity (H2O) Per Channel
Common to all models3 L
Speed Range
Common to all models200–1500 rpm
Speed Control Accuracy [rpm]
Common to all models±20
Speed Display
Common to all modelsLCD
Temperature Display
Common to all modelsLCD
Heating Temperature Range
Common to all models25–280 °C
Overheating Protection
Common to all models420 °C
Temperature Display Resolution
Common to all models0.1 °C
Temperature Control Accuracy
Common to all models±1 °C(<100 °C),±1 %(>100 °C)
External Temperature Sensor
Common to all modelsPT1000(accuracy±0.2 °C)
IP Protection Class
Common to all modelsIP21
Product Dimension701 × 265 × 127 mm564 × 523 × 127 mm
Net Weight8.7Kg12.7Kg
Permissible Ambient Temperature and Humidity
Common to all models5–40 °C, 80 % RH
Packing Size810 × 390 × 250 mm640 × 600 × 230 mm
Gross Weight10.8Kg16.2Kg

Technical data supplied by BIOBASE.
