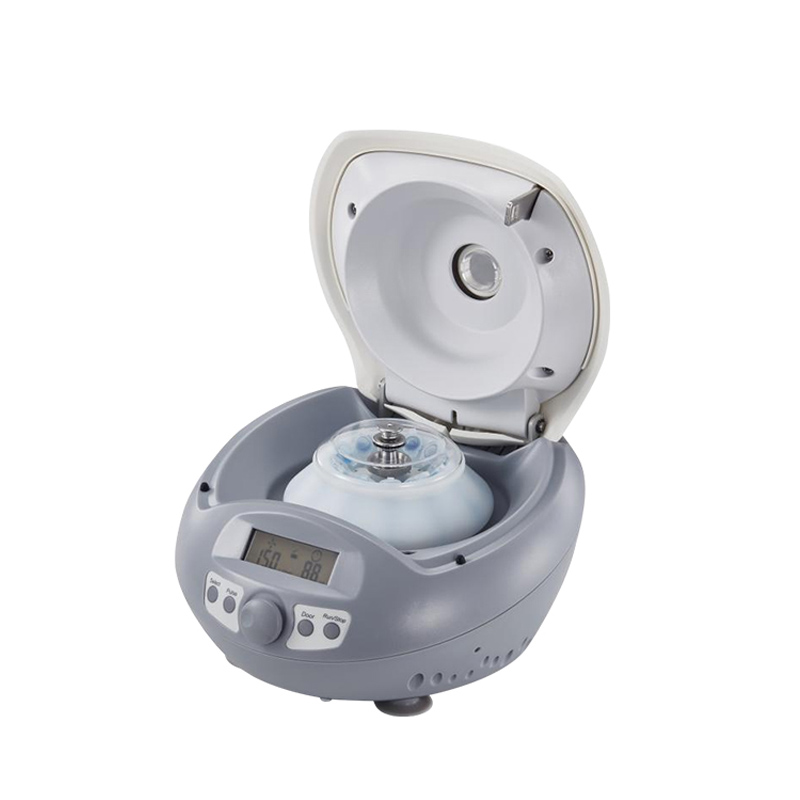

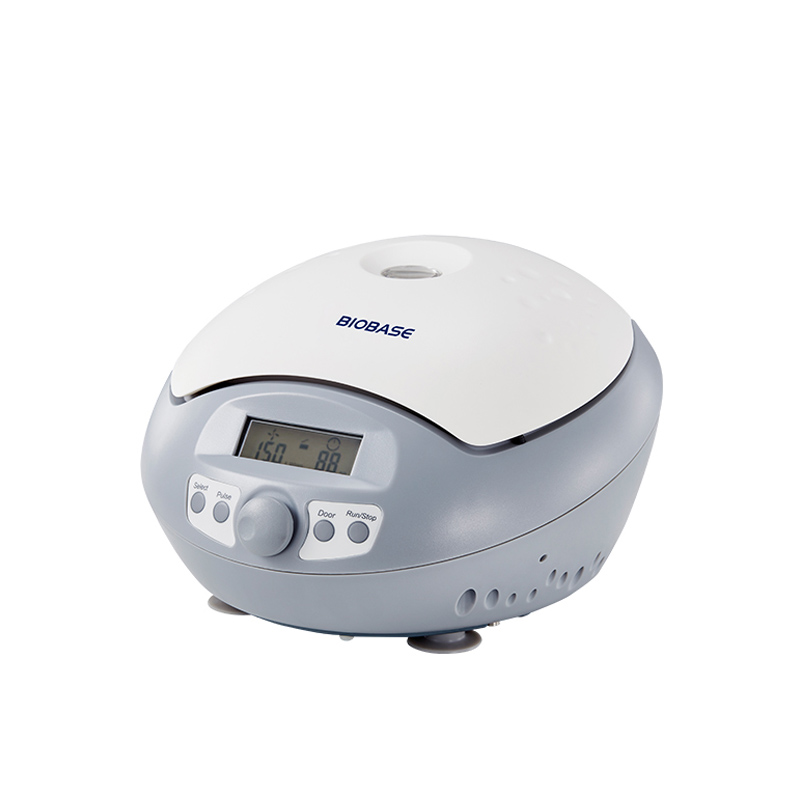

Mini High Speed Centrifuge

D2012 plus / A12–2P(19400010) / A 0 2P2(195000 0 1) / A 0 5P2(19500002)

Mini High Speed Centrifuge: sample separation with configurations suited to different volumes and speeds. Available capacity, functions and configuration depend on the selected model.

Key features

Controlled speed and centrifugal force
Rotors matched to the vessel
Benchtop and refrigerated formats

Made to orderPrice on request

Manufacturer: BIOBASE

Request a quote

Reply within 24 hoursValidated selection and configurationDelivery to the UK, all European countries, USA, Canada, Mexico and South America.

01 / LaboratoriX technical datasheet

LaboratoriX technical datasheet

Technical parameters consolidated from the manufacturer documentation. Each column corresponds to one model; shared values are clearly identified. Final configuration, accessories, power supply and applicable documentation are confirmed with the quotation.

Parameter	D2012 plus
Max.Speed	15000 rpm(500–15000 rpm)increment:100 rpm
Max.RCF	15100×g,increment:100×g
Speed Accuracy	±20 rpm
Rotor Capacity	*2 mL12**
Run Time	30sec-99 min/Continuous
Acceleration/Braking Time	11 s↑/9 s↓
Driving Motor	Brushless DC motor
Safety Devices	Door interlock; Over-speed detection; · Over-temperature detection;Automatic intermal diagnosis
Power	Single-phase,AC100V-240 V;50 Hz/6OHz,3 A;100 W
Noise Level	≤54dB
Dimension(DWH)	255 × 245 × 140 mm
Package Size(DWH)	455"345 × 250 mm
Gross Weight	6.54 kg
Other Functions	Speed/RCF switch;Short-time run function; · Sound-alert function;Running process display

Parameter	A12–2P(19400010)
Max.Speed	15000 rpm
Max.RCF	15100xg
Rotor Capacity	*2 mL12**
Rotor Material	High strength plastic
Adapted Rotor Adapter	A 0 2P2,A 0 5P2

Parameter	A 0 2P2(195000 0 1)	A 0 5P2(19500002)
Descriptions	0.2 mL rotor adapter for A12–2,A12–2P, · AS24–2 andA24–2Protors,24pcs/pk	0.5 mL rotor adapter for A12–2,A12–2P ， · AS24–2 andA24–2Protors,24pcs/pk
Configuration	Common to all modelsDetailed specifications confirmed with the quotation for the requested configuration
Technical documentation	Common to all modelsAvailable documentation confirmed before ordering
