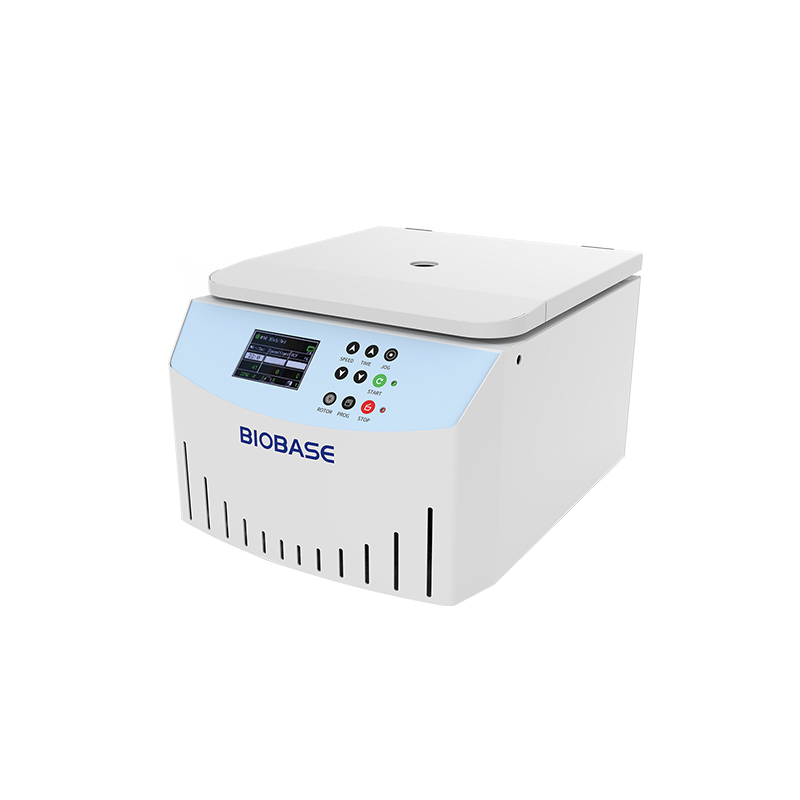

Table Top High Speed Centrifuge

BKC-MH20-B

BKC-MH20-B is a table top high speed centrifuge, commonly used for research at the microscopic level, including studies of viruses and DNA, and is an essential basic instrument for separation and preparation in various departments and institutions.

Key features

Controlled speed and centrifugal force
Rotors matched to the vessel
Benchtop and refrigerated formats

Made to orderPrice on request

Manufacturer: BIOBASE

Request a quote

Reply within 24 hoursValidated selection and configurationDelivery across mainland Portugal, Madeira, the Azores, and all European countries.

01 / LaboratoriX technical datasheet

LaboratoriX technical datasheet

Technical parameters consolidated from the manufacturer documentation. Each column corresponds to one model; shared values are clearly identified. Final configuration, accessories, power supply and applicable documentation are confirmed with the quotation.

Parameter	BKC-MH20-B
Max Speed	20500 rpm
Max RCF	29200×g
Max Capacity	12 × 10 mL
Speed Precision	±1 % or ±20 rpm
Timing Range	1 s~999 min
Noise	≤65dB
Consumption	600 W
Power Supply	AC220V, 50/60 Hz(Standard); AC110V, 60 Hz(Optional, external transformer)
External Size (WDH)	490 × 350 × 280 mm
Package Size (WDH)	550 × 410 × 340 mm
Net Weight	25 kg
Gross Weight	27 kg

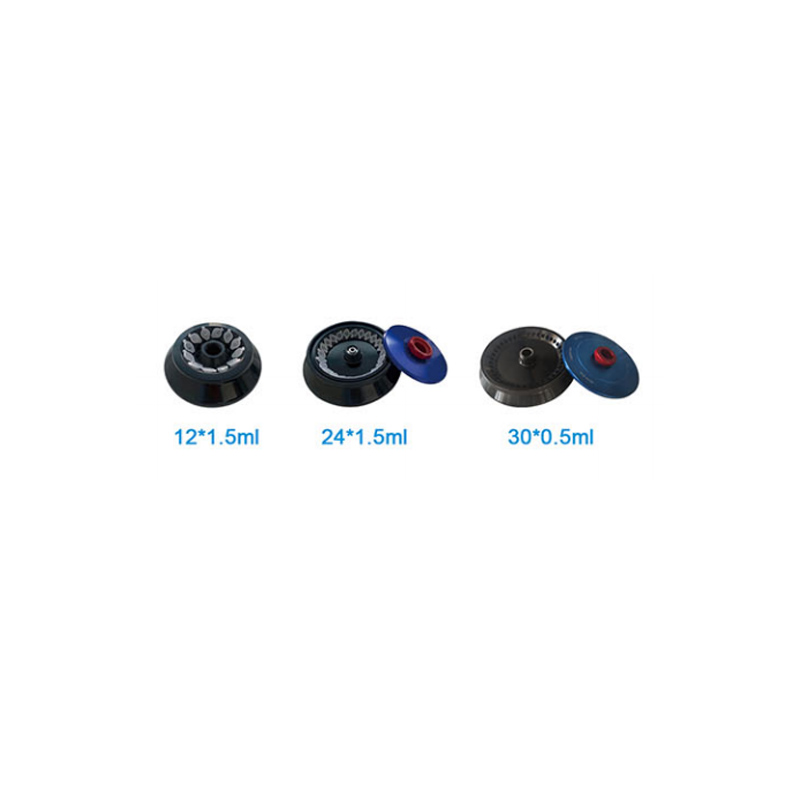

No. No.1	Rotor: Angle Rotor · Capacity: 30 × 0.5 mL · Max Speed (rpm): 13000 · Max RCF (×g): 18510 · Adapter: /
No. No.2	Rotor: Angle Rotor · Capacity: 12 × 1.5/2 mL · Max Speed (rpm): 20500 · Max RCF (×g): 29200 · Adapter: 12 × 0.5 mL, 12 × 0.2 mL
No. No.3	Rotor: Angle Rotor · Capacity: 24 × 1.5/2 mL · Max Speed (rpm): 16000 · Max RCF (×g): 23400 · Adapter: 24 × 0.5 mL, 24 × 0.2 mL
No. No.4	Rotor: Angle Rotor · Capacity: 30 × 1.5/2 mL · Max Speed (rpm): 13500 · Max RCF (×g): 19340 · Adapter: 30 × 0.5 mL, 30 × 0.2 mL
No. No.5	Rotor: Angle Rotor · Capacity: 48 × 1.5/2 mL · Max Speed (rpm): 13000 · Max RCF (×g): 17930 · Adapter: 48 × 0.5 mL, 48 × 0.2 mL
No. No.6	Rotor: Angle Rotor · Capacity: 12 × 10 mL · Max Speed (rpm): 14000 · Max RCF (×g): 19760 · Adapter: /
No. No.7	Rotor: Angle Rotor · Capacity: 6 × 50 mL · Max Speed (rpm): 13000 · Max RCF (×g): 18840 · Adapter: /
No. No.8	Rotor: · · Capacity: 6 × 50 mL(▲) · Max Speed (rpm): 13000 · Max RCF (×g): 18840 · Adapter: /

MADE-TO-ORDER SUPPLY

Do you need this equipment?

Share the application, configuration, quantity and delivery location. We prepare a tailored proposal with the required documentation.
