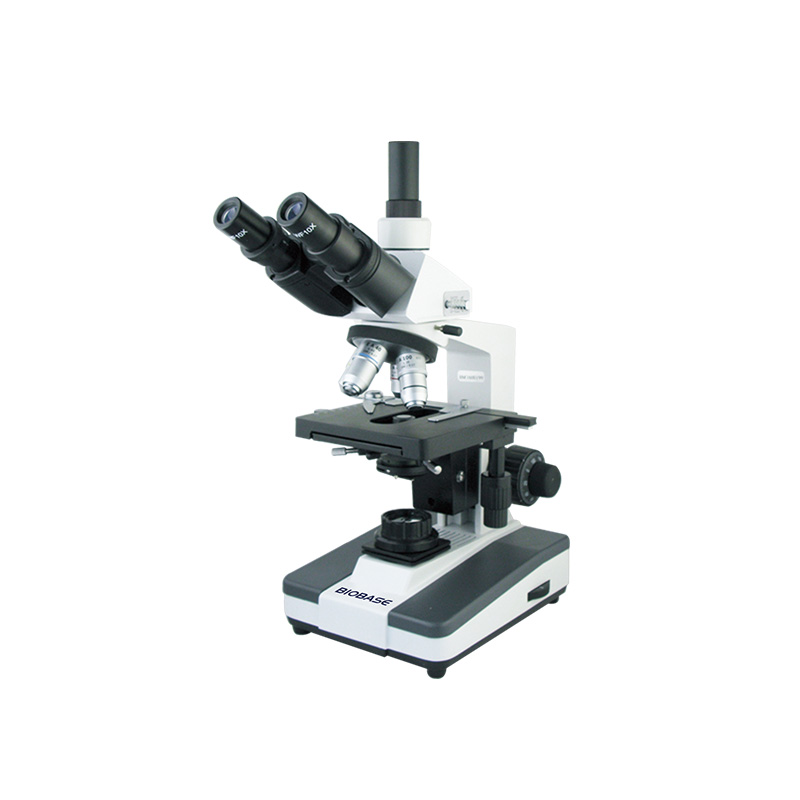

Medical Trinocular Biological Microscope

BM-8C / BM-8CA

The Biological Microscope is a versatile and high-precision instrument designed for observing biological specimens in educational, research, clinical, and laboratory settings.

Key features

Application-specific optical system
Configurable objectives and illumination
Digital capture options

Made to orderPrice on request

Manufacturer: BIOBASE

Request a quote

Reply within 24 hoursValidated selection and configurationDelivery to the UK, all European countries, USA, Canada, Mexico and South America.

01 / LaboratoriX technical datasheet

LaboratoriX technical datasheet

Technical parameters consolidated from the manufacturer documentation. Each column corresponds to one model; shared values are clearly identified. Final configuration, accessories, power supply and applicable documentation are confirmed with the quotation.

Parameter	BM-8C	BM-8CA
View Head	Compensation free binocular head, Inclined at 30°, 360° rotatable, Interpupillary 48–75 mm	Compensation free trinocular head, Inclined at 30°, 360° rotatable, Interpupillary 48–75 mm
Eyepiece	Common to all modelsWF10X/18 mm, WF16X/11 mm
Achromatic Objective	Common to all models4X N.A=0.10 WD=37.50 mm
Achromatic Objective (2)	Common to all models10X N.A=0.25 WD=7.31 mm
Achromatic Objective (3)	Common to all models40X N.A=0.65 WD=0.63 mm
Achromatic Objective (4)	Common to all models100X(Oil) N.A=1.25 WD=0.18 mm
Focusing	Common to all modelsCoaxial Coarse & Fine Adjustable System, Range 30 mm, Fine Division 0.002 mm
Stage	Double Layers Mechanical Stage 140 × 140 mm, Moving Range 75 × 40 mm	Mechanical Stage 140 × 140 mm, Moving Range 75 × 50 mm, Vernier 0.1 mm
Condenser	Common to all modelsAbbe NA1.25 condenser with Iris Diaphragm & Filter
Illumination	LED dual-color light source, adjustable brightness	Halogen lamp 6 V/20 W, Kohler Illumination, brightness adjustable
Filter	Common to all modelsBlue, yellow, green
Power Supply	Common to all modelsAC85–240 V, 50/60 Hz
Package Size(WDH)	Common to all models355 × 265 × 495 mm
Gross Weight	6 kg	7.5 kg
