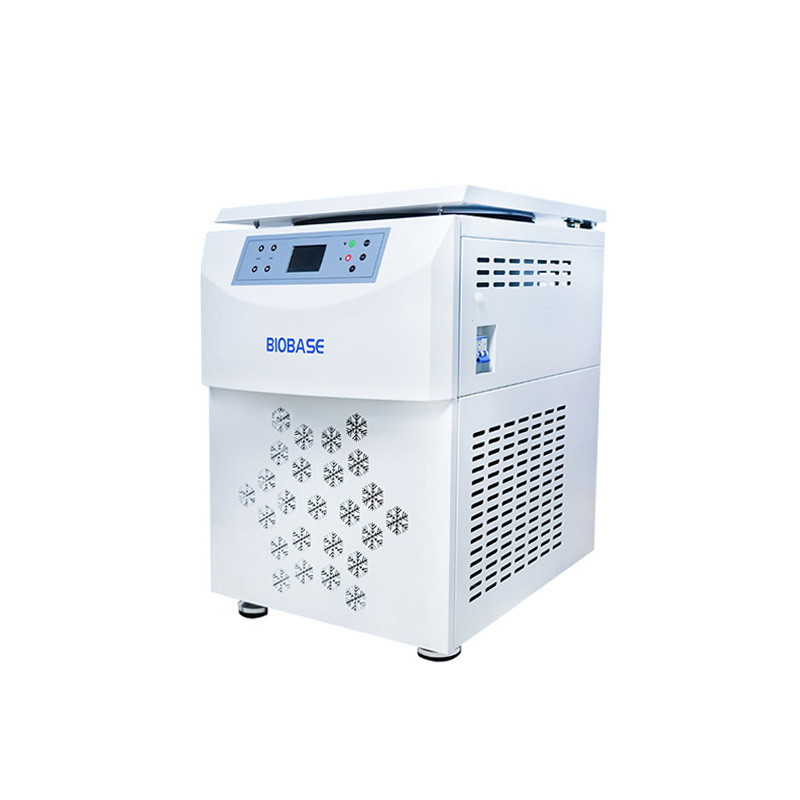

Low Speed Large Capacity Refrigerated Centrifuge

BKC-VL5RML

BKC-VL5RML has a variety of fixed angle rotors and swing rotors, suitable for blood stations, biochemistry, biological products and other production and scientific research units to use, is an ideal instrument for blood separation, protein precipitation, cell separation and collection.

Key features

Controlled speed and centrifugal force
Rotors matched to the vessel
Benchtop and refrigerated formats

Made to orderPrice on request

Manufacturer: BIOBASE

Request a quote

Reply within 24 hoursValidated selection and configurationDelivery to the UK, all European countries, USA, Canada, Mexico and South America.

01 / LaboratoriX technical datasheet

LaboratoriX technical datasheet

Technical parameters consolidated from the manufacturer documentation. Each column corresponds to one model; shared values are clearly identified. Final configuration, accessories, power supply and applicable documentation are confirmed with the quotation.

Parameter	BKC-VL5RML
Max Speed	5000 rpm
Max RCF	5100×g
Max Capacity	4 × 800 mL
Speed Precision	±20 rpm
Timing Range	1 s~999 min
Noise	≤65dB
Consumption	2000 W
Power Supply	AC220V, 50/60 Hz(Standard); AC110V, 60 Hz(Optional, external transformer)
External Size(WDH)	550 × 680 × 820 mm
Package Size(WDH)	860 × 650 × 1120 mm
Net Weight	150 kg
Gross Weight	175 kg
No. No.1 ·	Rotor: Swing Rotor Support · Capacity: 4 × 500 mL · Max. Speed(rpm): / · Max. RCF(×g): / · Adapter: /
No. No.1 · (2)	Rotor: Hanging Cup · Capacity: 4 × 500 mL · Max. Speed(rpm): / · Max. RCF(×g): / · Adapter: /
No. No.1 · (3)	Rotor: Adapter · Capacity: 4 × 250 mL · Max. Speed(rpm): 4000 · Max. RCF(×g): 3023 · Adapter: /
No. No.1 · (4)	Rotor: Adapter · Capacity: 4 × 2 × 100 mL · Max. Speed(rpm): 4000 · Max. RCF(×g): 3023 · Adapter: /
No. No.1 · (5)	Rotor: Adapter · Capacity: 4 × 100 mL(▲) · Max. Speed(rpm): 4000 · Max. RCF(×g): 3023 · Adapter: /
No. No.1 · (6)	Rotor: Adapter · Capacity: 4 × 100 mL · Max. Speed(rpm): 4000 · Max. RCF(×g): 3023 · Adapter: /
No. No.1 · (7)	Rotor: Adapter · Capacity: 4 × 3 × 50 mL · Max. Speed(rpm): 4000 · Max. RCF(×g): 3023 · Adapter: /
No. No.1 · (8)	Rotor: Adapter · Capacity: 4 × 2 × 50 mL · Max. Speed(rpm): 4000 · Max. RCF(×g): 3023 · Adapter: /
No. No.1 · (9)	Rotor: Adapter · Capacity: 4 × 50 mL · Max. Speed(rpm): 4000 · Max. RCF(×g): 2808 · Adapter: /
No. No.1 · (10)	Rotor: Adapter · Capacity: 4 × 4 × 30 mL PP tube · Max. Speed(rpm): 4000 · Max. RCF(×g): 2808 · Adapter: /
No. No.1 · (11)	Rotor: Adapter · Capacity: 4 × 9 × 15 mL · Max. Speed(rpm): 4000 · Max. RCF(×g): 2808 · Adapter: /
No. No.1 · (12)	Rotor: Adapter · Capacity: 4 × 8 × 15 mL(▲) · Max. Speed(rpm): 4000 · Max. RCF(×g): 2808 · Adapter: /
No. No.1 · (13)	Rotor: Adapter · Capacity: 4 × 8 × 15 mL · Max. Speed(rpm): 4000 · Max. RCF(×g): 2808 · Adapter: /
No. No.1 · (14)	Rotor: Adapter · Capacity: 4 × 12 × 10 mL · Max. Speed(rpm): 4000 · Max. RCF(×g): 3184 · Adapter: /
No. No.1 · (15)	Rotor: Adapter · Capacity: 4 × 12 × 5 mL blood collection tube · Max. Speed(rpm): 4000 · Max. RCF(×g): 2808 · Adapter: 48 × 2 mL
No. No.1 · (16)	Rotor: Tube Rack · Capacity: 4 × 16 × 10 mL · Max. Speed(rpm): 4000 · Max. RCF(×g): 2810 · Adapter: /
No. No.1 · (17)	Rotor: Tube Rack · Capacity: 4 × 20 × 7 mL PP tube · Max. Speed(rpm): 4000 · Max. RCF(×g): 3139 · Adapter: /
No. No.1 · (18)	Rotor: Tube Rack · Capacity: 4 × 30 × 5 mL blood collection tube(80 mm) · Max. Speed(rpm): 4000 · Max. RCF(×g): 3150 · Adapter: /
No. No.1 · (19)	Rotor: Tube Rack · Capacity: 4 × 30 × 5 mL blood collection tube(106 mm) · Max. Speed(rpm): 4000 · Max. RCF(×g): 3150 · Adapter: 120 × 2 mL
No. No.1 · (20)	Rotor: Tube Rack · Capacity: 4 × 24 × 5 mL blood collection tube(106 mm) · Max. Speed(rpm): 4000 · Max. RCF(×g): 3032 · Adapter: 96 × 2 mL
No. No.1 · (21)	Rotor: Tube Rack · Capacity: 4 × 24 × 5 mL blood collection tube(100 mm) · Max. Speed(rpm): 4000 · Max. RCF(×g): 3032 · Adapter: 96 × 2 mL
No. No.1 · (22)	Rotor: Tube Rack · Capacity: 4 × 20 × 5 mL blood collection tube(106 mm) · Max. Speed(rpm): 4000 · Max. RCF(×g): 3050 · Adapter: 80 × 2 mL
No. No.1 · (23)	Rotor: Tube Rack · Capacity: 4 × 24 × 2 mL blood collection tube · Max. Speed(rpm): 4000 · Max. RCF(×g): 2585 · Adapter: /
No. No.1 · (24)	Rotor: Tube Rack · Capacity: 4 × 20 × 2 mL blood collection tube(80 mm) · Max. Speed(rpm): 4000 · Max. RCF(×g): 3050 · Adapter: /
No. No.1 · (25)	Rotor: Tube Rack · Capacity: 4 × 25 × 1.5 mL · Max. Speed(rpm): 4000 · Max. RCF(×g): 2808 · Adapter: /
No. No.2	Rotor: Swing Rotor Support · Capacity: 4 × 750 mL · Max. Speed(rpm): / · Max. RCF(×g): / · Adapter: /
No. No.2 (2)	Rotor: Hanging Cup · Capacity: 4 × 750 mL · Max. Speed(rpm): / · Max. RCF(×g): / · Adapter: /
No. No.2 (3)	Rotor: Adapter · Capacity: 4 × 3 × 100 mL · Max. Speed(rpm): 4000 · Max. RCF(×g): 3380 · Adapter: /
No. No.2 (4)	Rotor: Adapter · Capacity: 4 × 2 × 100 mL · Max. Speed(rpm): 4000 · Max. RCF(×g): 3360 · Adapter: /
No. No.3	Rotor: Swing Rotor Support · Capacity: 4 × 250 mL · Max. Speed(rpm): / · Max. RCF(×g): / · Adapter: /
No. No.3 (2)	Rotor: Hanging Cup · Capacity: 4 × 250 mL · Max. Speed(rpm): / · Max. RCF(×g): / · Adapter: /
No. No.3 (3)	Rotor: Adapter · Capacity: 4 × 1 × 100 mL · Max. Speed(rpm): 4000 · Max. RCF(×g): 2379 · Adapter: /
No. No.3 (4)	Rotor: Adapter · Capacity: 4 × 1 × 50 mL · Max. Speed(rpm): 4000 · Max. RCF(×g): 2379 · Adapter: /
No. No.3 (5)	Rotor: Adapter · Capacity: 4 × 9 × 10 mL · Max. Speed(rpm): 4000 · Max. RCF(×g): 2379 · Adapter: /
No. No.3 (6)	Rotor: Tube Rack · Capacity: 4 × 4 × 50 mL · Max. Speed(rpm): 4000 · Max. RCF(×g): 3500 · Adapter: /
No. No.3 (7)	Rotor: Tube Rack · Capacity: 4 × 2 × 50 mL(▲) · Max. Speed(rpm): 4000 · Max. RCF(×g): 3023 · Adapter: /
No. No.3 (8)	Rotor: Tube Rack · Capacity: 4 × 20 × 5 mL · Max. Speed(rpm): 4000 · Max. RCF(×g): 3139 · Adapter: /
No. No.3 (9)	Rotor: Tube Rack · Capacity: 4 × 18 × 5 mL blood collection tube(L106mm) · Max. Speed(rpm): 4000 · Max. RCF(×g): 2808 · Adapter: 72 × 2 mL
No. No.3 (10)	Rotor: Tube Rack · Capacity: 4 × 12 × 5 mL blood collection tube(L75mm) · Max. Speed(rpm): 4000 · Max. RCF(×g): 2808 · Adapter: /
No. No.3 (11)	Rotor: Tube Rack · Capacity: 4 × 12 × 5 mL blood collection tube(L100mm) · Max. Speed(rpm): 4000 · Max. RCF(×g): 2808 · Adapter: 48 × 2 mL
No. No.3 (12)	Rotor: Tube Rack · Capacity: 4 × 12 × 5 mL blood collection tube(L106mm) · Max. Speed(rpm): 4000 · Max. RCF(×g): 2808 · Adapter: 48 × 2 mL
No. No.3 (13)	Rotor: Tube Rack · Capacity: 4 × 10 × 5 mL blood collection tube(L106mm) · Max. Speed(rpm): 4000 · Max. RCF(×g): 2808 · Adapter: 40 × 2 mL
No. No.4	Rotor: Swing Rotor Support · Capacity: SUS304 Support · Max. Speed(rpm): / · Max. RCF(×g): / · Adapter: /
No. No.4 (2)	Rotor: Hanging Basket · Capacity: 4 × 2 × 100 mL · Max. Speed(rpm): 4000 · Max. RCF(×g): 3175 · Adapter: /
No. No.4 (3)	Rotor: Hanging Basket · Capacity: 4 × 1 × 100 mL · Max. Speed(rpm): 4000 · Max. RCF(×g): 3007 · Adapter: /
No. No.4 (4)	Rotor: Hanging Basket · Capacity: 4 × 2 × 50 mL · Max. Speed(rpm): 4000 · Max. RCF(×g): 3022 · Adapter: 50 mL(▲),15 mL(●)
No. No.4 (5)	Rotor: Hanging Basket · Capacity: 4 × 1 × 50 mL · Max. Speed(rpm): 4000 · Max. RCF(×g): 2846 · Adapter: 50 mL(▲),15 mL(●)
No. No.4 (6)	Rotor: Hanging Basket · Capacity: 4 × 8 × 15 mL · Max. Speed(rpm): 4000 · Max. RCF(×g): 3030 · Adapter: 15 mL(▲),10 mL(▲),10 mL blood collection tube, 5 mL blood collection tube, 2 mL blood collection tube(L75)
No. No.4 (7)	Rotor: Hanging Basket · Capacity: 4 × 6 × 15 mL · Max. Speed(rpm): 4000 · Max. RCF(×g): 2705 · Adapter: 15 mL(▲),10 mL(▲),10 mL blood collection tube, 5 mL blood collection tube, 2 mL blood collection tube(L75)
No. No.4 (8)	Rotor: Hanging Basket · Capacity: 4 × 4 × 15 mL · Max. Speed(rpm): 4000 · Max. RCF(×g): 2705 · Adapter: 15 mL(▲),10 mL(▲),10 mL blood collection tube, 5 mL blood collection tube, 2 mL blood collection tube(L75)
No. No.4 (9)	Rotor: Hanging Basket · Capacity: 4 × 8 × 10 mL · Max. Speed(rpm): 4000 · Max. RCF(×g): 3030 · Adapter: /
No. No.4 (10)	Rotor: Hanging Basket · Capacity: 4 × 6 × 10 mL · Max. Speed(rpm): 4000 · Max. RCF(×g): 2705 · Adapter: /
No. No.4 (11)	Rotor: Hanging Basket · Capacity: 4 × 4 × 10 mL · Max. Speed(rpm): 4000 · Max. RCF(×g): 2705 · Adapter: /
No. No.5	Rotor: Microplate Rotor · Capacity: 2 × 2 × 96well · Max. Speed(rpm): 4000 · Max. RCF(×g): 2300 · Adapter: /
No. No.6	Rotor: Auto Uncap Swing Rotor · Capacity: 4 × 12 × 5 mL · Max. Speed(rpm): 4000 · Max. RCF(×g): 3580 · Adapter: /
No. No.6 (2)	Rotor: Auto Uncap Swing Rotor · Capacity: 4 × 12 × 2 mL · Max. Speed(rpm): 4000 · Max. RCF(×g): 3580 · Adapter: /
No. No.6 (3)	Rotor: Auto Uncap Swing Rotor · Capacity: 4 × 20 × 5 mL · Max. Speed(rpm): 4000 · Max. RCF(×g): 3580 · Adapter: /
No. No.6 (4)	Rotor: Auto Uncap Swing Rotor · Capacity: 4 × 20 × 2 mL · Max. Speed(rpm): 4000 · Max. RCF(×g): 3580 · Adapter: /
No. No.6 (5)	Rotor: Auto Uncap Swing Rotor · Capacity: 4 × 24 × 5 mL · Max. Speed(rpm): 4000 · Max. RCF(×g): 3580 · Adapter: /
No. No.6 (6)	Rotor: Auto Uncap Swing Rotor · Capacity: 4 × 24 × 2 mL · Max. Speed(rpm): 4000 · Max. RCF(×g): 3580 · Adapter: /
No. No.7	Rotor: Angle Rotor · Capacity: 12 × 10 mL · Max. Speed(rpm): 5000 · Max. RCF(×g): 3440 · Adapter: 12 × 5 mL
No. No.8	Rotor: Angle Rotor · Capacity: 18 × 10 mL · Max. Speed(rpm): 5000 · Max. RCF(×g): 3516 · Adapter: 18 × 5 mL
No. No.9	Rotor: Angle Rotor · Capacity: 24 × 10 mL · Max. Speed(rpm): 5000 · Max. RCF(×g): 2200 · Adapter: 24 × 5 mL
No. No.10	Rotor: Angle Rotor · Capacity: 8 × 15 mL · Max. Speed(rpm): 5000 · Max. RCF(×g): 3300 · Adapter: /
No. No.11	Rotor: Angle Rotor · Capacity: 12 × 15 mL · Max. Speed(rpm): 5000 · Max. RCF(×g): 2200 · Adapter: /
No. No.12	Rotor: Angle Rotor · Capacity: 12 × 20 mL · Max. Speed(rpm): 5000 · Max. RCF(×g): 3360 · Adapter: /
No. No.13	Rotor: Angle Rotor · Capacity: 4 × 50 mL · Max. Speed(rpm): 5000 · Max. RCF(×g): 3400 · Adapter: /
No. No.14	Rotor: Angle Rotor · Capacity: 6 × 50 mL · Max. Speed(rpm): 5000 · Max. RCF(×g): 3400 · Adapter: /
No. No.15	Rotor: Angle Rotor · Capacity: 4 × 100 mL · Max. Speed(rpm): 4000 · Max. RCF(×g): 2800 · Adapter: /
