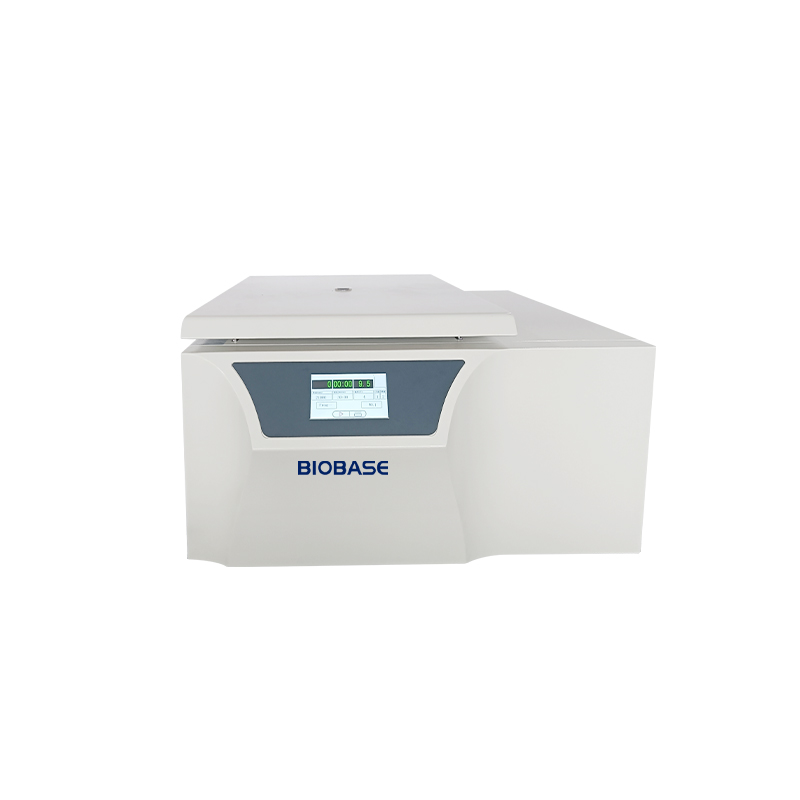

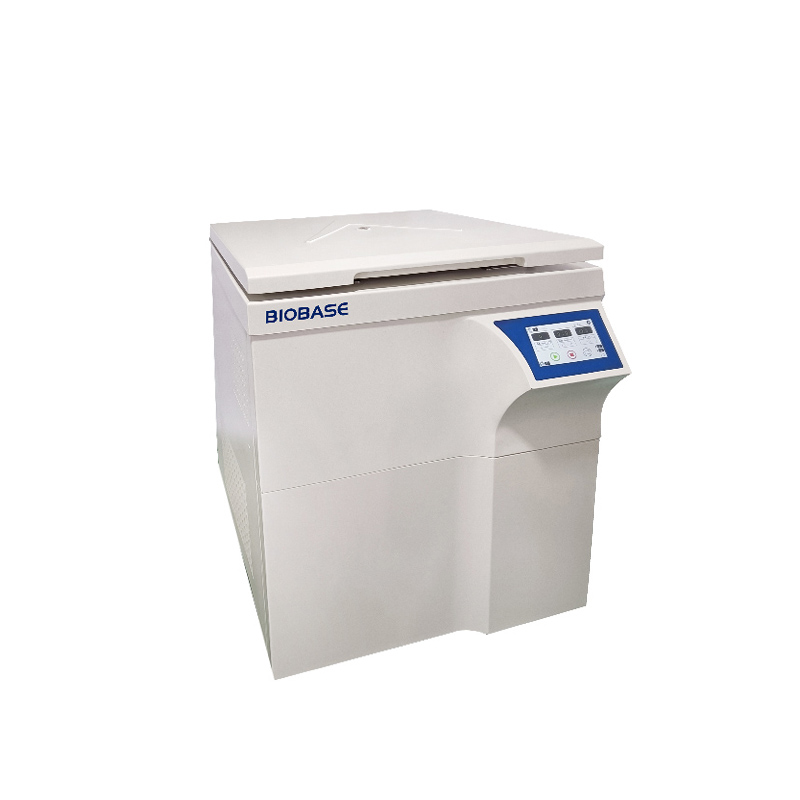

Low Speed Large Capacity Refrigerated Centrifuge

BKC-TL5RL / BKC-VL6RLII

BIOBASE Low Speed Large Capacity Refrigerated Centrifuge is engineered for high-volume sample processing with precise temperature control.

Key features

Controlled speed and centrifugal force
Rotors matched to the vessel
Benchtop and refrigerated formats

Made to orderPrice on request

Manufacturer: BIOBASE

Request a quote

Reply within 24 hoursValidated selection and configurationDelivery to the UK, all European countries, USA, Canada, Mexico and South America.

01 / LaboratoriX technical datasheet

LaboratoriX technical datasheet

Technical parameters consolidated from the manufacturer documentation. Each column corresponds to one model; shared values are clearly identified. Final configuration, accessories, power supply and applicable documentation are confirmed with the quotation.

Parameter	BKC-TL5RL	BKC-VL6RLII
Max. Capacity	4 × 750 mL	6 × 1000 mL
Max. Speed	5500 rpm	6000 rpm
Max. RCF	4390xg	6680xg
Speed Precision	±30 rpm	±20 rpm
Temp. Range	Common to all models-20–40 °C
Temp. Accuracy	Common to all models±1 °C
Timing Range	Common to all models0–99h59min59s
Noise	≤60dB	≤58dB
Consumption	1.2KW	3KW
Power Supply	Common to all modelsAC220±22 V 50/60 Hz (Standard); AC110V 60 Hz (Optional)
External Size(WDH) mm	703 × 710 × 400	725 × 940 × 970
Packing Size(WDH) mm	910 × 825 × 570	870 × 1040 × 1380
Net Weight(kg)	110	280
Gross Weight(kg)	130	330
No. NO.1	Common to all modelsRotor: Angle Rotor · Max. Speed(rpm): 5500 · RCF (xg): 4390 · capacity: 12 × 10 mL · Dimension of Tube (mm): Φ16 × 83
No. NO.2	Common to all modelsRotor: Angle Rotor · Max. Speed(rpm): 5500 · RCF (xg): 4390 · capacity: 12 × 15 mL · Dimension of Tube (mm): Φ17 × 121
No. NO.3	Common to all modelsRotor: Swing Rotor · Max. Speed(rpm): / · RCF (xg): / · capacity: Support · Dimension of Tube (mm): /
No. NO.3 (2)	Common to all modelsRotor: Tube Rack · Max. Speed(rpm): 4000 · · RCF (xg): 2810 · capacity: 4 × 100 mL · Dimension of Tube (mm): Φ38 × 116
No. NO.3 (3)	Common to all modelsRotor: Tube Rack · Max. Speed(rpm): 4000 · · RCF (xg): 2810 · capacity: 4 × 2 × 100 mL · Dimension of Tube (mm): Φ38 × 116
No. NO.3 (4)	Common to all modelsRotor: Tube Rack · Max. Speed(rpm): 4000 · · RCF (xg): 2810 · capacity: 4 × 4 × 10 mL · Dimension of Tube (mm): Φ16 × 106
No. NO.3 (5)	Common to all modelsRotor: Tube Rack · Max. Speed(rpm): 4000 · · RCF (xg): 2810 · capacity: 4 × 6 × 10 mL · Dimension of Tube (mm): Φ16 × 106
No. NO.3 (6)	Common to all modelsRotor: Tube Rack · Max. Speed(rpm): 4000 · · RCF (xg): 2810 · capacity: 4 × 8 × 10 mL · Dimension of Tube (mm): Φ16 × 106
No. NO.3 (7)	Common to all modelsRotor: Tube Rack · Max. Speed(rpm): 4000 · · RCF (xg): 2810 · capacity: 4 × 4 × 15 mL(▲/●) · Dimension of Tube (mm): Φ16 × 120
No. NO.3 (8)	Common to all modelsRotor: Tube Rack · Max. Speed(rpm): 4000 · · RCF (xg): 2810 · capacity: 4 × 6 × 15 mL(▲/●) · Dimension of Tube (mm): Φ16 × 120
No. NO.3 (9)	Common to all modelsRotor: Tube Rack · Max. Speed(rpm): 4000 · · RCF (xg): 2810 · capacity: 4 × 8 × 15 mL(▲/●) · Dimension of Tube (mm): Φ16 × 120
No. NO.3 (10)	Common to all modelsRotor: Tube Rack · Max. Speed(rpm): 4000 · · RCF (xg): 2810 · capacity: 4 × 50 mL(▲/●) · Dimension of Tube (mm): Φ29 × 116
No. NO.3 (11)	Common to all modelsRotor: Tube Rack · Max. Speed(rpm): 4000 · · RCF (xg): 2810 · capacity: 4 × 2 × 50 mL(▲/●) · Dimension of Tube (mm): Φ29 × 116
No. NO.4	Common to all modelsRotor: Swing Rotor · · Max. Speed(rpm): 4200 · RCF (xg): 3500 · capacity: 4 × 250 mL · Dimension of Tube (mm): Φ62 × 126
No. NO.4 (2)	Common to all modelsRotor: Adapter · Max. Speed(rpm): 4200 · RCF (xg): 3500 · capacity: 4 × 8 × 5 mL · Dimension of Tube (mm): /
No. NO.4 (3)	Common to all modelsRotor: Adapter · Max. Speed(rpm): 4200 · RCF (xg): 3500 · capacity: 4 × 8 × 7 mL · Dimension of Tube (mm): /
No. NO.4 (4)	Common to all modelsRotor: Adapter · Max. Speed(rpm): 4200 · RCF (xg): 3500 · capacity: 4 × 7 × 10 mL · Dimension of Tube (mm): /
No. NO.4 (5)	Common to all modelsRotor: Adapter · Max. Speed(rpm): 4200 · RCF (xg): 3500 · capacity: 4 × 6 × 15 mL · Dimension of Tube (mm): /
No. NO.4 (6)	Common to all modelsRotor: Adapter · Max. Speed(rpm): 4200 · RCF (xg): 3500 · capacity: 4 × 2 × 50 mL(●) · Dimension of Tube (mm): /
No. NO.4 (7)	Common to all modelsRotor: Adapter · Max. Speed(rpm): 4200 · RCF (xg): 3500 · capacity: 4 × 1 × 50 mL(▲) · Dimension of Tube (mm): /
No. NO.4 (8)	Common to all modelsRotor: Adapter · Max. Speed(rpm): 4200 · RCF (xg): 3500 · capacity: 4 × 100 mL · Dimension of Tube (mm): /
No. NO.5	Common to all modelsRotor: Swing Rotor · Max. Speed(rpm): 4000 · RCF (xg): 3040 · capacity: 4 × 500 mL · Dimension of Tube (mm): Φ80 × 137
No. NO.5 (2)	Common to all modelsRotor: Adapter · Max. Speed(rpm): 4000 · RCF (xg): 3040 · capacity: 4 × 15 × 5 mL · Dimension of Tube (mm): /
No. NO.5 (3)	Common to all modelsRotor: Adapter · Max. Speed(rpm): 4000 · RCF (xg): 3040 · capacity: 4 × 15 × 7 mL · Dimension of Tube (mm): /
No. NO.5 (4)	Common to all modelsRotor: Adapter · Max. Speed(rpm): 4000 · RCF (xg): 3040 · capacity: 4 × 12 × 10 mL · Dimension of Tube (mm): /
No. NO.5 (5)	Common to all modelsRotor: Adapter · Max. Speed(rpm): 4000 · RCF (xg): 3040 · capacity: 4 × 8 × 15 mL(▲) · Dimension of Tube (mm): /
No. NO.5 (6)	Common to all modelsRotor: Adapter · Max. Speed(rpm): 4000 · RCF (xg): 3040 · capacity: 4 × 4 × 50 mL(▲/●) · Dimension of Tube (mm): /
No. NO.5 (7)	Common to all modelsRotor: Adapter · Max. Speed(rpm): 4000 · RCF (xg): 3040 · capacity: 4 × 2 × 100 mL · Dimension of Tube (mm): /
No. NO.5 (8)	Common to all modelsRotor: Adapter · Max. Speed(rpm): 4000 · RCF (xg): 3040 · capacity: 4 × 250 mL · Dimension of Tube (mm): /
No. NO.6	Common to all modelsRotor: Swing Rotor · Max. Speed(rpm): 4000 · RCF (xg): 3180 · capacity: 4 × 750 mL · Dimension of Tube (mm): Φ99 × 137
No. NO.7	Common to all modelsRotor: Swing Rotor · Max. Speed(rpm): 4200 · RCF (xg): 3500 · capacity: 4 × 12 × 7/5 mL · Dimension of Tube (mm): Φ13 × 110/90
No. NO.8	Common to all modelsRotor: Swing Rotor · Max. Speed(rpm): 4200 · RCF (xg): 3500 · capacity: 4 × 18 × 7/5 mL · Dimension of Tube (mm): Φ13 × 110/90
No. NO.9	Common to all modelsRotor: Swing Rotor · Max. Speed(rpm): 4000 · RCF (xg): 3040 · capacity: 4 × 24 × 7/5 mL · Dimension of Tube (mm): Φ13 × 110/90
No. NO.10	Common to all modelsRotor: Microplate Rotor · Max. Speed(rpm): 4000 · RCF (xg): 2000 · capacity: 2 × 2 × 48well · Dimension of Tube (mm): · Microplate
No. NO.11	Common to all modelsRotor: Microplate Rotor · Max. Speed(rpm): 4200 · RCF (xg): 2360 · capacity: 2 × 2 × 96well · Dimension of Tube (mm): · Microplate
No. No.1	Common to all modelsRotor: Angle Rotor · Max. Speed(rpm): 6000 · RCF(xg): 5650 · Capacity: 6 × 300 mL · Dimension of Bottle (mm): Φ63 × 157
No. No.2	Common to all modelsRotor: Angle Rotor · Max. Speed(rpm): 6000 · RCF(xg): 6680 · Capacity: 6 × 500 mL · Dimension of Bottle (mm): Φ74 × 168
No. No.3	Common to all modelsRotor: Swing Rotor (round cup) · Max. Speed(rpm): 4200 · RCF(xg): 5030 · Capacity: 6 × 1000 mL · Dimension of Bottle (mm): Φ100 × 175
No. No.4	Common to all modelsRotor: Swing Rotor (square cup) · Max. Speed(rpm): 4200 · RCF(xg): 5030 · Capacity: 6 × 1000 mL · Dimension of Bottle (mm): /
