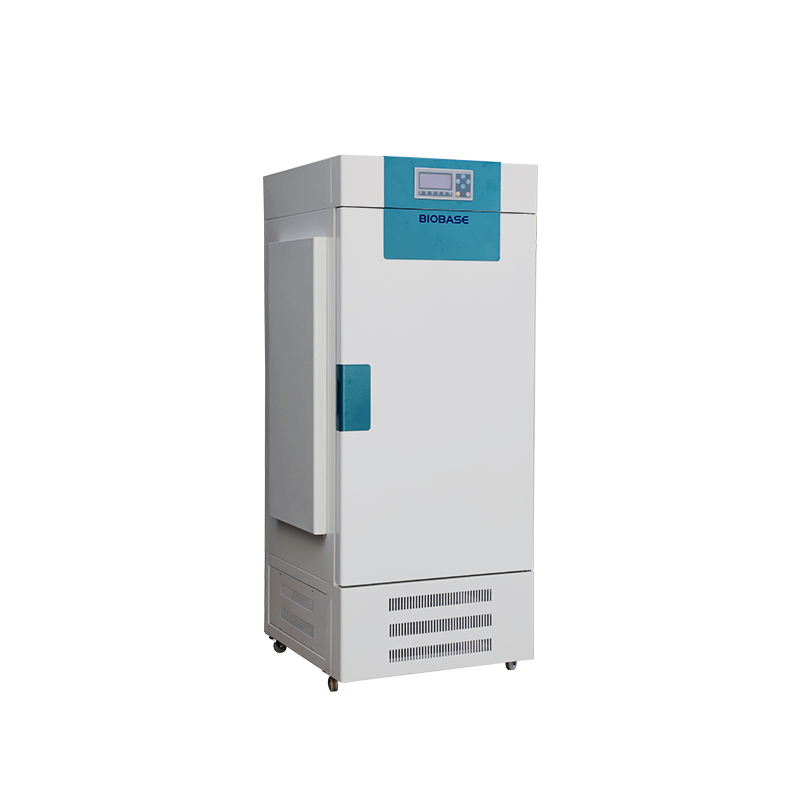

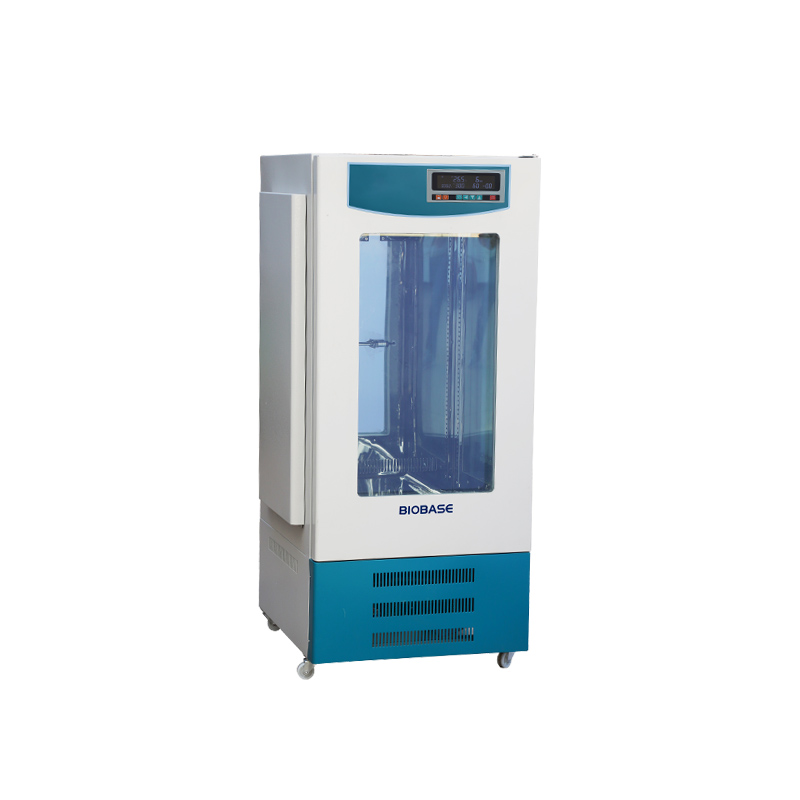

Lighting Incubator BJPX-LB/E Series

BJPX-L 160B/E / BJPX-L 250 B/E / BJPX-L 300B/E / BJPX-L 400B/E

Unique air circulation system ensures uniform distribution of air flow in the operating chamber without causing any harm to the seedlings.

Key features

Programmable temperature
Uniform controlled environment
Selectable capacities and accessories

Made to orderPrice on request

Manufacturer: BIOBASE

Request a quote

Reply within 24 hoursValidated selection and configurationDelivery across mainland Portugal, Madeira, the Azores, and all European countries.

01 / LaboratoriX technical datasheet

LaboratoriX technical datasheet

Technical parameters consolidated from the manufacturer documentation. Each column corresponds to one model; shared values are clearly identified. Final configuration, accessories, power supply and applicable documentation are confirmed with the quotation.

Parameter	BJPX-L 160B/E	BJPX-L 250 B/E	BJPX-L 300B/E	BJPX-L 400B/E
Capacity	160 L	250 L	300 L	40 0 L
Lighting Type	Common to all modelsTwo-sided lighting, three-sided lighting (optional).
Temp.Control Range	Common to all modelsWith Illumination: 10–50 °C, Without Illumination: 5–50 °C
Temp. Fluctuation	Common to all models±1 °C
Temp. R esolution	Common to all models0.1 °C
Lighting Illumination	Common to all modelsStandard: General lighting 0–600 0 LX, adjustable in 6 steps. Optional: Strong lighting 0–12000LX or 20000LX or 25000LX or 30000LX, adjustable in 6 steps or stepless adjustment.
Timing Range	Common to all models1–9999 min
Shelves	2 pcs/adjustable	3 pcs/adjustable	3 pcs/adjustable	4 pcs/adjustable
Consumption	1 500 W	20 00 W	2 500 W	2 800 W
Power Supply	Common to all modelsAC220V±10 %, 50/60 Hz(Standard) AC110±10 %, 60 Hz(Optional)
Internal Size (WDH)mm	50 0 × 38 0 × 790 498 × 450 × 794 (E)	53 0 × 480 × 1000 528 × 480 × 1000(E)	56 0 × 500 × 12 00 564 × 500 × 1050(E)	60 0 × 55 0 × 1250 600 × 600 × 1100(E)
External Size(WDH)mm	680 × 590 × 1250 722 × 665 × 1440(E)	710 × 700 × 1450 752 × 695 × 1650(E)	746 × 715 × 1650 788 × 715 × 1690(E)	789 × 765 × 170 0824 × 865 × 1750(E)
Packing Size(WDH)mm	780 × 690 × 1350 822 × 765 × 1540(E)	810 × 800 × 1550 852 × 795 × 1750(E)	846 × 515 × 1750 888 × 815 × 1790(E)	889 × 865 × 180 0924 × 965 × 1850(E)
Gross Weight(kg)	70	90	130	150

MADE-TO-ORDER SUPPLY

Do you need this equipment?

Share the application, configuration, quantity and delivery location. We prepare a tailored proposal with the required documentation.
