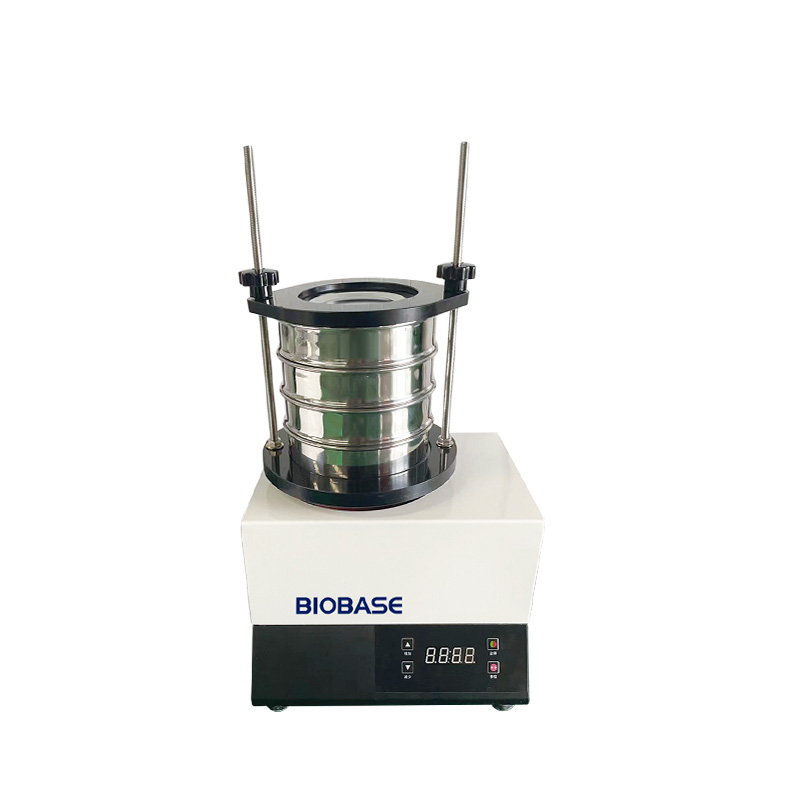

Laboratory Test Sieve

BK-TS200 / BK-TS200X / BK-TS300

BK-TS200X lab test sieve is suitable for particles distribution analysis. It is primarily used to determine particle size distribution for particles,power and liquid in laboratory and quality control department.

Key features

Uniform solid processing
Controlled time, speed or temperature
Preparation for subsequent analysis

Made to orderPrice on request

Manufacturer: BIOBASE

Request a quote

Reply within 24 hoursValidated selection and configurationDelivery to the UK, all European countries, USA, Canada, Mexico and South America.

01 / Accessories

Available accessories

Included accessories

Lid and base(Except BK-TS300)

Final contents, accessory compatibility and availability are confirmed in the quotation for the selected model.

02 / LaboratoriX technical datasheet

LaboratoriX technical datasheet

Technical parameters consolidated from the manufacturer documentation. Each column corresponds to one model; shared values are clearly identified. Final configuration, accessories, power supply and applicable documentation are confirmed with the quotation.

Parameter	BK-TS200	BK-TS200X	BK-TS300
Working Layer	Common to all models1–7 layers(Including lid and base)
Screen Mesh Size	Common to all models0.003–12.5 mm
Diameter	200 mm	200 mm	300 mm
Material	Common to all modelsStainless steel 304
Timing Range	Common to all models0–99min59s
Speed	Common to all models1440r/min
Noise	Common to all models＜50dB
Power Consumption	120 W	180 W	180 W
Power Supply	Common to all modelsAC 220 V, 50 Hz(Standard); 220 V, 60 Hz; 110 V, 60 Hz(Optional)
Standard Accessory	Common to all modelsLid and base(Except BK-TS300)
External Size(WDH)	400 × 300 × 370 mm	400 × 340 × 340 mm	470 × 380 × 370 mm
Package Size(WDH)	460 × 380 × 470 mm	490 × 420 × 590 mm	560 × 480 × 490 mm
Net Weight	30 kg	30 kg	40 kg
Gross Weight	35 kg	40 kg	42 kg
Number of Mesh	Common to all modelsAperture(mm) · Number of Mesh · Aperture(mm) · Number of Mesh · Aperture(mm)
2	Common to all models12.5 · 45 · 0.4 · 220 · 0.065
3	Common to all models8 · 50 · 0.355 · 240 · 0.063
4	Common to all models6 · 55 · 0.315 · 250 · 0.061
5	Common to all models5 · 60 · 0.28 · 280 · 0.055
6	Common to all models4 · 65 · 0.25 · 300 · 0.050
8	Common to all models3 · 70 · 0.224 · 320 · 0.045
10	Common to all models2 · 75 · 0.2 · 325 · 0.043
12	Common to all models1.6 · 80 · 0.18 · 340 · 0.041
14	Common to all models1.43 · 90 · 0.16 · 360 · 0.040
16	Common to all models1.25 · 100 · 0.154 · 400 · 0.0385
18	Common to all models1 · 110 · 0.15 · 500 · 0.0308
20	Common to all models0.9 · 120 · 0.125 · 600 · 0.026
24	Common to all models0.8 · 130 · 0.112 · 800 · 0.022
26	Common to all models0.71 · 140 · 0.105 · 900 · 0.020
28	Common to all models0.68 · 150 · 0.100 · 1000 · 0.015
30	Common to all models0.6 · 160 · 0.096 · 1800 · 0.010
32	Common to all models0.58 · 180 · 0.09 · 2000 · 0.008
35	Common to all models0.50 · 190 · 0.08 · 2300 · 0.005
40	Common to all models0.45 · 200 · 0.074 · 2800 · 0.003
