Reactors & pilot scale

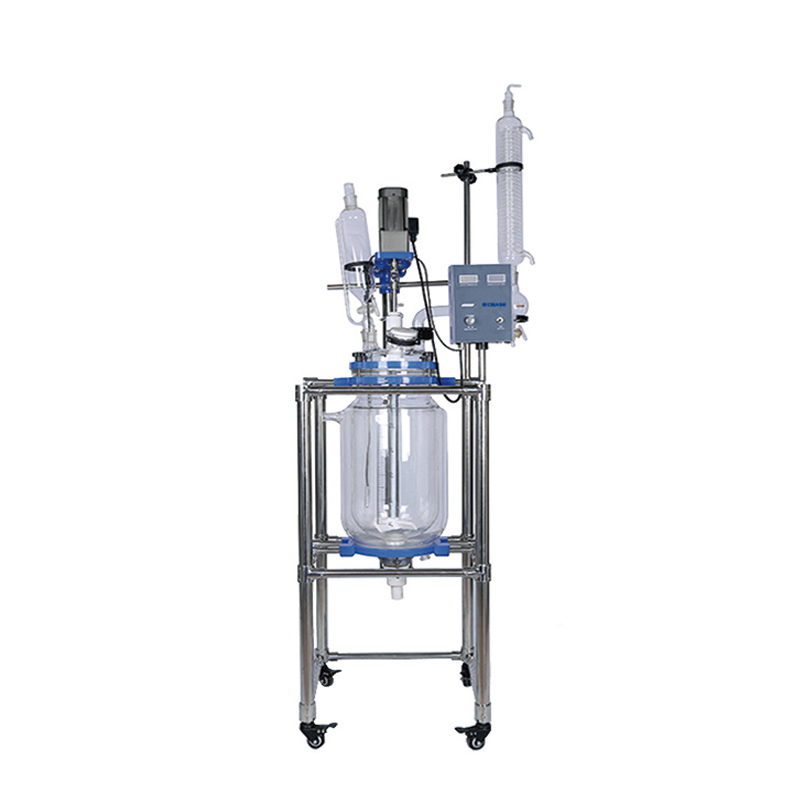

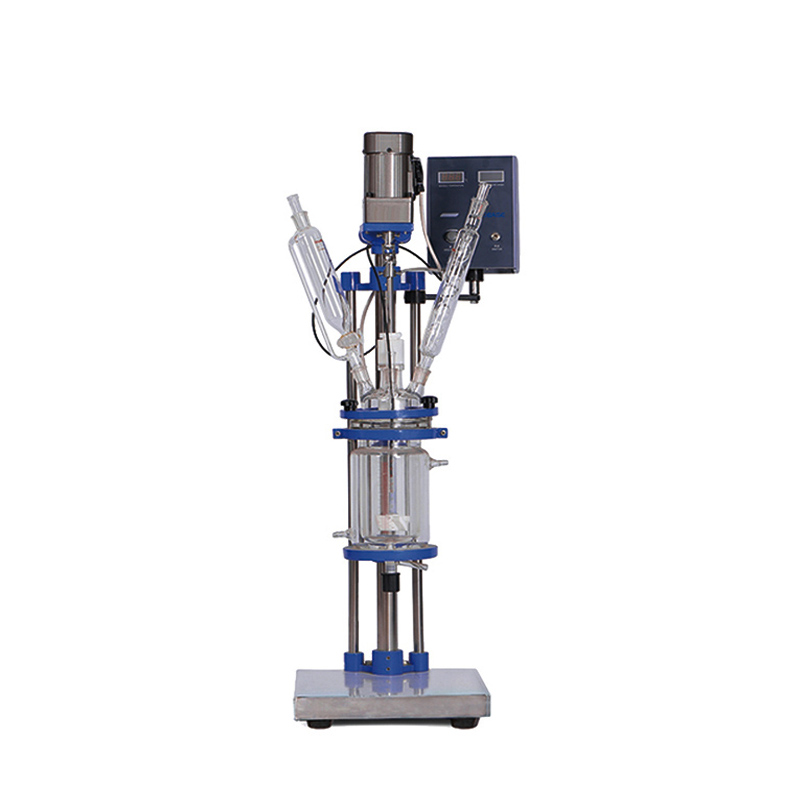

Jacketed Glass Reactor
JGR-1 L / JGR-2 L / JGR-3 L / JGR-5 L / JGR-10 L / JGR-20 L / JGR-30 L / JGR-50 L
Jacketed glass reactors are designed for synthetic reaction of different types of materials in a controlled temperature and vacuum environment. Each reactor features adjustable stirring speeds and a constant pressure feeding funnel that allows you to add material to the vessel at a uniform and controlled speed.
Key features
- Configurable volume and materials
- Process control
- Pilot-scale readiness
- Manufacturer
- BIOBASE
01 / LaboratoriX technical datasheet
LaboratoriX technical datasheet
Technical parameters consolidated from the manufacturer documentation. Each column corresponds to one model; shared values are clearly identified. Final configuration, accessories, power supply and applicable documentation are confirmed with the quotation.
| Parameter | JGR-1 L | JGR-2 L | JGR-3 L | JGR-5 L | JGR-10 L | JGR-20 L | JGR-30 L | JGR-50 L |
|---|---|---|---|---|---|---|---|---|
| Reaction Flask Capacity | 1 L | 2 L | 3 L | 5 L | 10 L | 20 L | 30 L | 50 L |
| Stirring Power | 60 W, fan with 1:3 reduction gearbox | 60 W, fan with 1:3 reduction gearbox | 60 W, fan with 1:3 reduction gearbox | 60 W, fan with 1:3 reduction gearbox | 120 W, fan with 1:3 reduction gearbox | 120 W, fan with 1:3 reduction gearbox | 120 W, fan with 1:3 reduction gearbox | 120 W, fan with 1:3 reduction gearbox |
| Stirring Speed | ||||||||
| Stirring Shaft Diameter | ||||||||
| Motor Torque | 1.27N.m | 1.27N.m | 1.27N.m | 1.27N.m | 2.42N.m | 2.42N.m | 2.42N.m | 2.42N.m |
| Power Supply | ||||||||
| Package Size (W*D*H) | 1260 × 430 × 480 mm | 1270 × 430 × 480 mm | 1310 × 590 × 540 mm | 1310 × 600 × 540 mm | 1230 × 610 × 750 mm | 1340 × 650 × 780 mm | 1690 × 660 × 780 mm | 1690 × 660 × 780 mm |
| Gross Weight | 40 kg | 41 kg | 51 kg | 56 kg | 74 kg | 85 kg | 101 kg | 108 kg |
