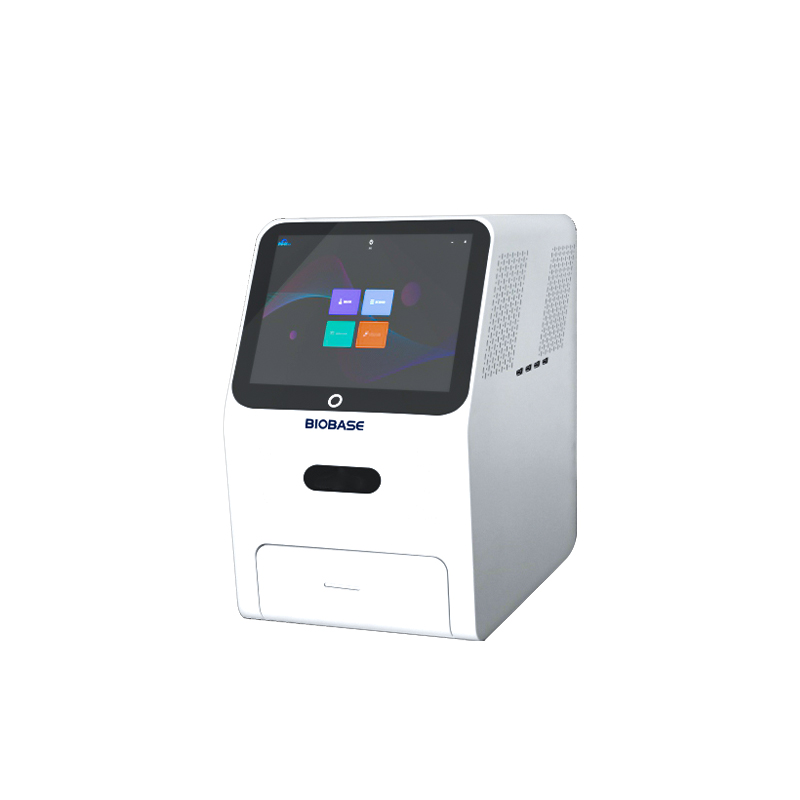

Integrated Automatic Gel Imaging System

BK-AGX3

Automatic gel imaging system ‌ is a device for analyzing and recording the results of gel electrophoresis. It is widely used in molecular biology, biochemistry and genetics.

Key features

Digital gel imaging
Controlled exposure and illumination
Results documentation

Made to orderPrice on request

Manufacturer: BIOBASE

Request a quote

Reply within 24 hoursValidated selection and configurationDelivery to the UK, all European countries, USA, Canada, Mexico and South America.

01 / LaboratoriX technical datasheet

LaboratoriX technical datasheet

Technical parameters consolidated from the manufacturer documentation. Each column corresponds to one model; shared values are clearly identified. Final configuration, accessories, power supply and applicable documentation are confirmed with the quotation.

Parameter	BK-AGX3
Camera Resolution	6.0MP
Photosensitive Efficiency	≥7 9 %
Exposure Time	1ms ~5000 ms
Pixel Density	1 6 Bits(0–65535)
OD	≥4.8OD
Lens	Large aperture autofocus lens, 20 million auto focus lens
UV Transmission	302 nm, optional other transmitted blue light
White Light Reflection	LED reflection(cold light)
White Light Transmission	White light emitting panel
Filter	Standard 590 nm, other optional
Shooting Area	21 × 21 cm
Timer Shut Down	1–60 min
Touch System	12.5-inch touch system
Power Supply	110–240 V, 50/60 Hz
Packing Size	450 × 462 × 666 mm
Gross Weight	22.3 kg
