Mixing & shaking

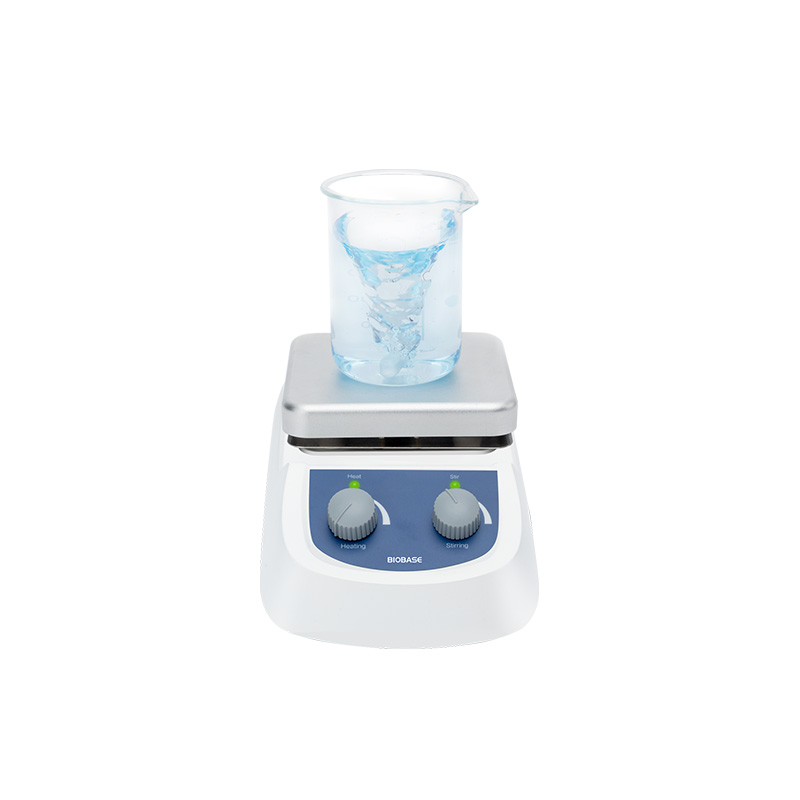

Hotplate Magnetic Stirrer

MS4-H380-E

BIOBASE Hotplate Magnetic Stirrer is a reliable and efficient solution for mixing and heating liquid samples simultaneously. Designed for precision and convenience, it is widely used in chemistry labs, research institutes, and quality control facilities.

Key features

  • Adjustable shaking speed
  • Controlled temperature
  • Selectable platforms and holders
Made to orderPrice on request
Manufacturer
BIOBASE
Request a quote
Reply within 24 hoursValidated selection and configurationDelivery across mainland Portugal, Madeira, the Azores, and all European countries.

01 / Accessories

Available accessories

Included accessories

  • PT1000-A
  • Temperature sensor(18901898)
  • Support clamp of PT1000(18902044)

Final contents, accessory compatibility and availability are confirmed in the quotation for the selected model.

02 / LaboratoriX technical datasheet

LaboratoriX technical datasheet

Technical parameters consolidated from the manufacturer documentation. Each column corresponds to one model; shared values are clearly identified. Final configuration, accessories, power supply and applicable documentation are confirmed with the quotation.

ParameterMS4-H380-E
Item No.
8010116015
Work Plate Size
120 × 120 mm
Work Plate Material
Aluminum
Speed Range
0–2000 rpm
Heating Temperature Range
RT+5 °C~380 °C
Max. Stirring Quantity(H₂O)
2 L
Max. Magnetic Bar(Length)
50 mm
Protection Class
IP21
Motor Type
DC brush motor
Motor Rating Ouput Consumption
5 W
Heating Consumption
200 W
Consumption
205 W
Power Supply
AC110V±10 %, 50/60 Hz or AC220V±10 %, 50/60 Hz
External Size(W*D*H)
235 × 140 × 90 mm
Net Weight
1.4 kg
Packing Size(W*D*H)
310 × 300 × 150 mm
Gross Weight
2.5 kg
