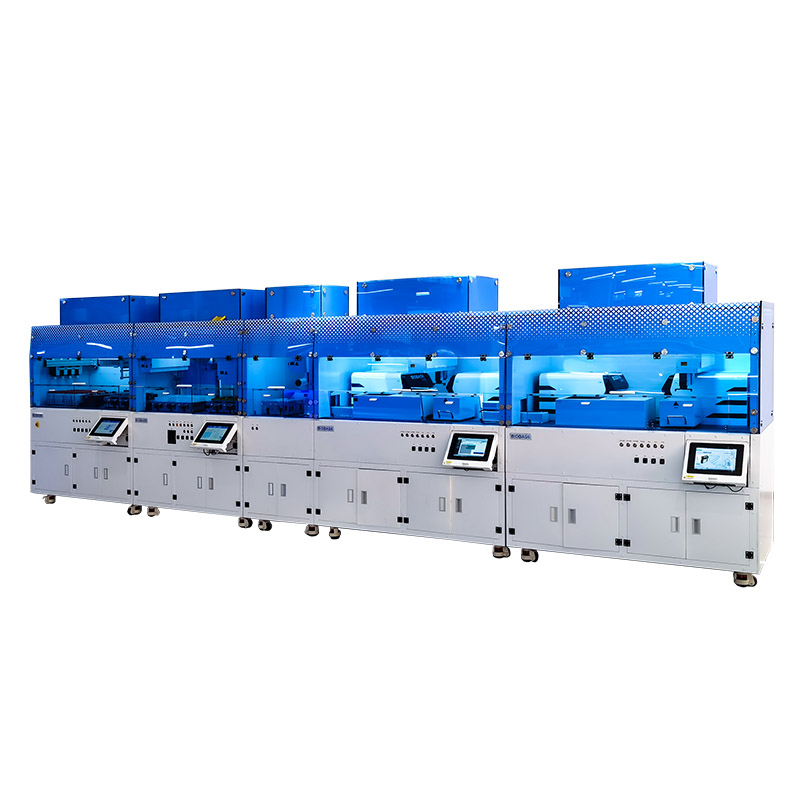

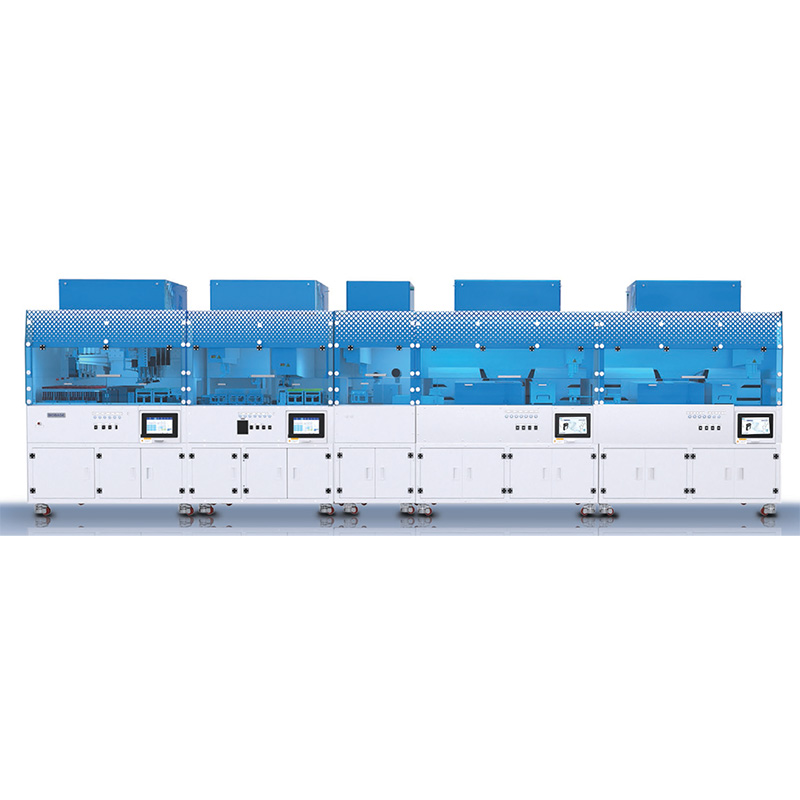

High-throughput Nucleic Acid Detection Workstation

Automated mechanical operation to reduce human error Equipped with a fast PCR system to improve experimental efficiency

Key features

Molecular-biology workflow
Thermal control or automated extraction
Configuration matched to required throughput

Made to orderPrice on request

Manufacturer: BIOBASE

Reply within 24 hoursValidated selection and configurationDelivery to the UK, all European countries, USA, Canada, Mexico and South America.

01 / LaboratoriX technical datasheet

LaboratoriX technical datasheet

Technical parameters consolidated from the manufacturer documentation. Each column corresponds to one model; shared values are clearly identified. Final configuration, accessories, power supply and applicable documentation are confirmed with the quotation.

Parameter	High-throughput Nucleic Acid Detection Workstation
Throughput	1–96
Speed	Daily inspection volume ≥ 6000 tubes
A dding Sample	2–1000 µL
Temperature Accuracy	± 0.3 °C
Temperature Uniformity	± 0.3 °C
Module Temperature Range	4–100 °C
Sample Volume	1 0–50 µL
Fluorescence Channel	4 channels, FM, VIC, ROX, Cy5
Machine Function	Putting the original tube on the machine + sample splitting + nucleic acid extraction + R C R system construction + amplification detection
Sample Loading Method	Flow loading, single sample volume 96
Consumables Added	Flowing consumables, running without stopping
Liquid Detection Scheme	Pneumatic liquid level detection scheme, intelligent detection of blocked needle
Sample Needle Specifications	50µl, 200µl, 1000µl optional, disposable black conductive needle with filter
Sampling Tube Adaptation	Suitable for conventional 5 mL, 10 mL, 20/30 mL virus sampling tubes
Protective Function	Power-on self-test, high temperature alarm, over-temperature protection, needle removal and needle removal protection
Disinfection &Decontamination Methods	UV lamp (cup compartment + extraction compartment + extraction area + sealing compartment + testing compartment), multi-directional disinfection
Touch Screen	Four 10.1-inch capacitive touch screens
E xternal Size	6300 × 750 × 1900 mm
