Solid processing

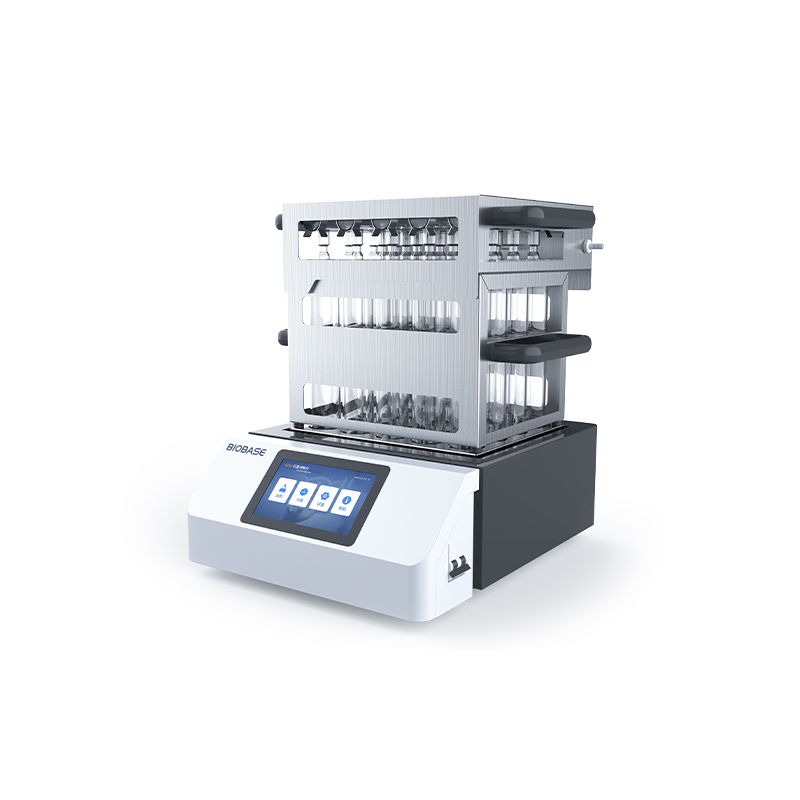

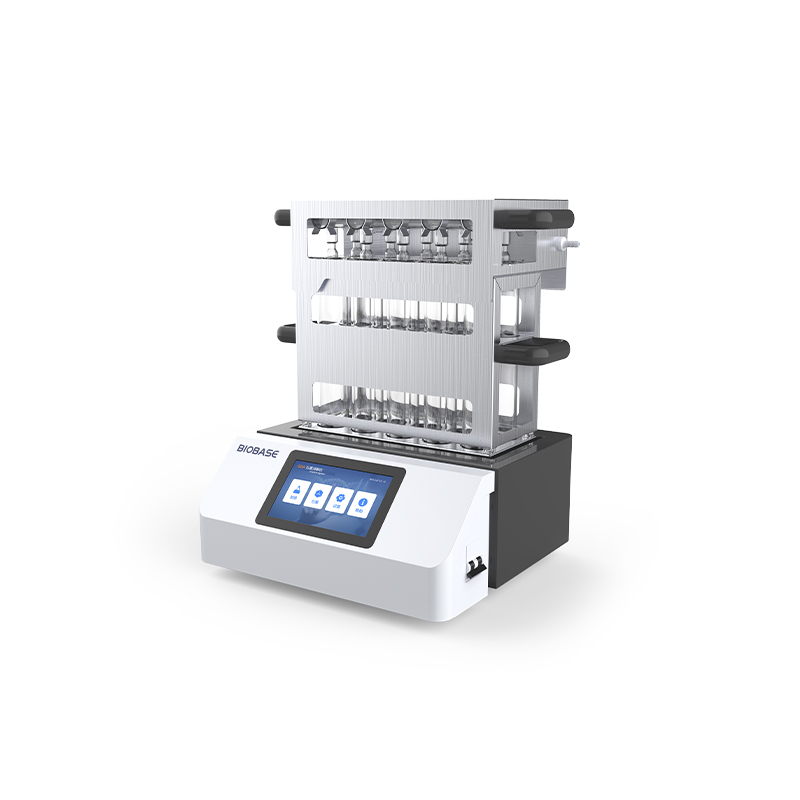

Graphite Digester

GDA-10 / GDA-20

Graphite Digester adopts infrared radiation graphite conduction heating technology, accurate temperature control, uniform heating, fast heating speed.

Key features

  • Uniform solid processing
  • Controlled time, speed or temperature
  • Preparation for subsequent analysis
Made to orderPrice on request
Manufacturer
BIOBASE
Request a quote
Reply within 24 hoursValidated selection and configurationDelivery to the UK, all European countries, USA, Canada, Mexico and South America.

01 / LaboratoriX technical datasheet

LaboratoriX technical datasheet

Technical parameters consolidated from the manufacturer documentation. Each column corresponds to one model; shared values are clearly identified. Final configuration, accessories, power supply and applicable documentation are confirmed with the quotation.

ParameterGDA-10GDA-20
Temp. Range
Common to all modelsRT+5 °C~450 °C
Temp.Accuracy
Common to all models±1 °C
Capacity10pcs20pcs
Digestive TubeGlass tube 300 mL*10Glass tube 300 mL*20
Heating Mode
Common to all modelsInfrared heating and high purity graphite conduction
Insulation Mode
Common to all modelsCeramic fiber, split air duct insulation
Display

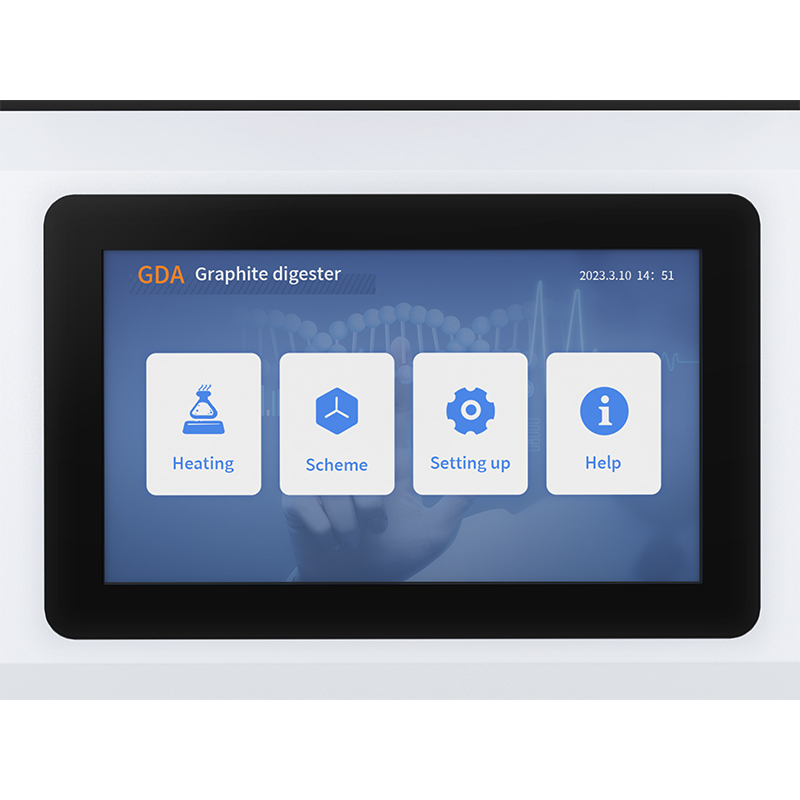

Common to all models7-inch high resolution color LCD screen
Consumption1.8KW3.4KW
Power Supply
Common to all modelsStandard: 220 V±10 %, 50/60 Hz Optional: 110 V±10 %, 50/60 Hz
External Size(W*D*H)360 × 390 × 177 mm480 × 390 × 177 mm
Package Size(W*D*H)670 × 560 × 630 mm700 × 610 × 770 mm
Net Weight20 kg26 kg
Gross Weight38 kg58 kg

Technical data supplied by BIOBASE.
