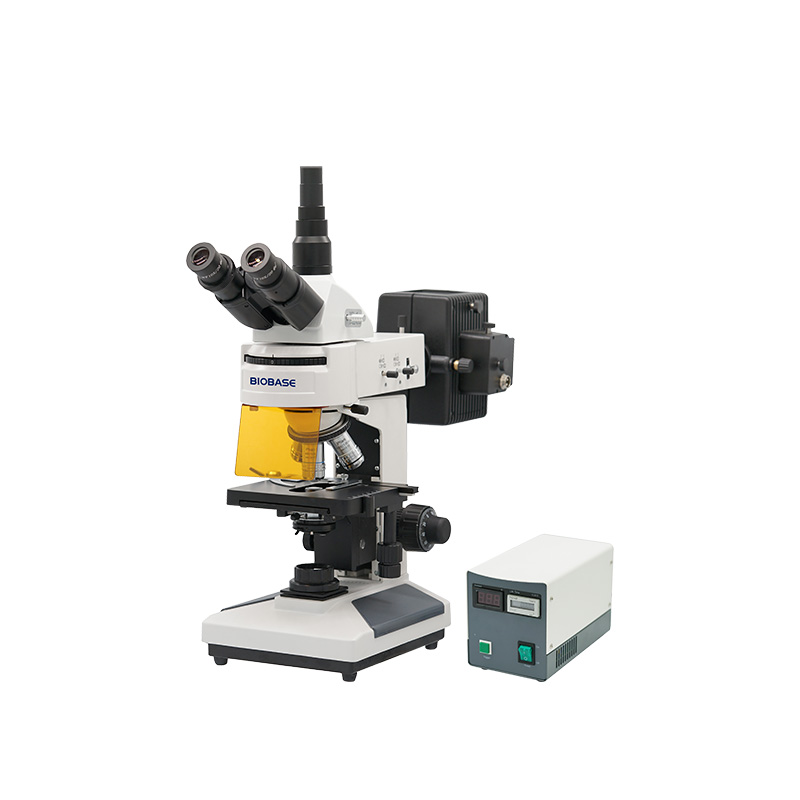

Fluorescence Biological Microscope

BFM-13CYII

The Fluorescence Biological Microscope BFM-13CYII is an upright epi-fluorescence microscope built on an infinity optical system with infinity plan achromatic objectives from 4X to 100X. It features a trinocular view head inclined at 30° with 10X/22 mm eyepieces, standard blue and green fluorescence excitation, and a white LED Illumination system with adjustable brightness.

Key features

Application-specific optical system
Configurable objectives and illumination
Digital capture options

Made to orderPrice on request

Manufacturer: BIOBASE

Request a quote

Reply within 24 hoursValidated selection and configurationDelivery across mainland Portugal, Madeira, the Azores, and all European countries.

01 / Accessories

Available accessories

Optional accessories

Blue (B) excitation: 460–490 nm
Green (G) excitation: 510–560 nm Ultraviolet (UV) excitation: 330–380 nm
Blue-Ultraviolet (BU) excitation: U: 330–380 nm
B: 460–490 nm
Blue-Green-Ultraviolet (BGU) excitation: U: 330–380 nm
B: 450–490 nm
G: 510–560 nm

Final contents, accessory compatibility and availability are confirmed in the quotation for the selected model.

02 / LaboratoriX technical datasheet

LaboratoriX technical datasheet

Technical parameters consolidated from the manufacturer documentation. Each column corresponds to one model; shared values are clearly identified. Final configuration, accessories, power supply and applicable documentation are confirmed with the quotation.

Parameter	BFM-13CYII
Optical System	Infinity optical system
Eyepiece	10X/22 mm
View Head	Trinocular view head, inclined at 30°, interpupillary distance adjustment 48–75 mm
Objective	Infinity plan achromatic objective 4X; Infinity plan achromatic objective 10X; Infinity plan achromatic objective 40X; Infinity plan achromatic objective 100X
Focusing System	Coaxial focusing with coarse and fine movements, featuring locking and limiting devices; fine movement increments of 2 µm; coarse movement stroke of 40 mm per revolution; fine movement stroke of 0.2 mm per revolution; focusing range of 30 mm.
Nosepiece	4-position nosepiece, 5-position nosepiece(Optional)
Stage	Double-layer movable platform. Platform dimensions: 160 × 140 mm; Movement range: 75 × 50 mm.
Condenser	Abbe Condenser N.A.1.25
Illumination	White LED, adjustable brightness
Power Supply	AC100–240 V, 50/60 Hz
Packing Size(WDH)	465 × 450 × 600 mm
Gross Weight	15.5 kg

MADE-TO-ORDER SUPPLY

Do you need this equipment?

Share the application, configuration, quantity and delivery location. We prepare a tailored proposal with the required documentation.
