Temperature control

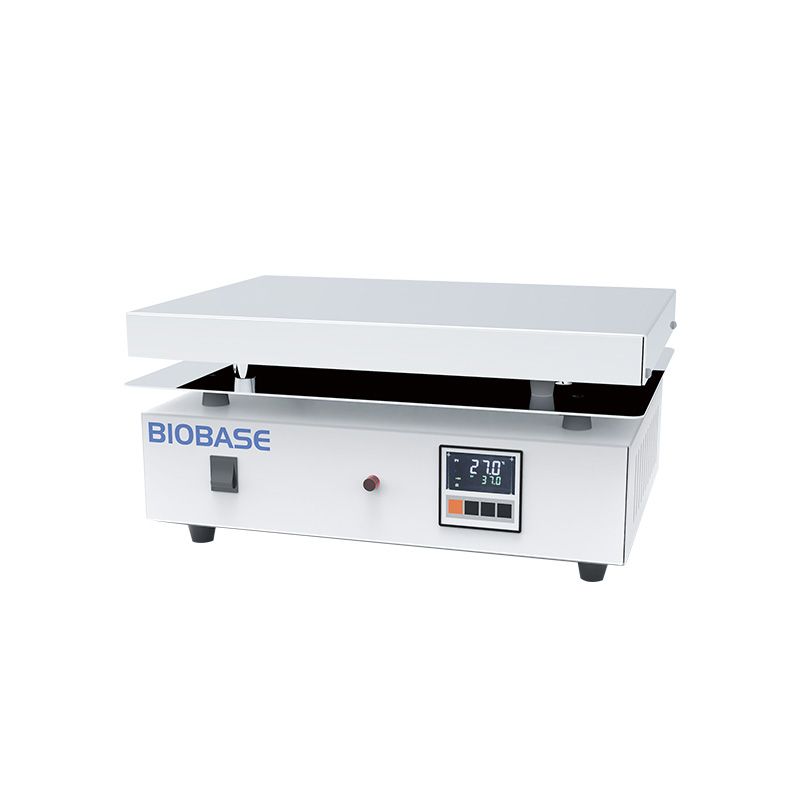

Electric Hotplate

BJPX-HP3040

An electric hot plate is a versatile heating device for industrial and laboratory applications, engineered based on the resistance heating principle. It converts electrical energy into thermal energy, delivering a stable heat source for sample heating, temperature maintenance, drying, and reactive processes.

Key features

  • Programmable temperature
  • Uniform heating or cooling
  • Selectable capacities and accessories
Made to orderPrice on request
Manufacturer
BIOBASE
Request a quote
Reply within 24 hoursValidated selection and configurationDelivery to the UK, all European countries, USA, Canada, Mexico and South America.

01 / LaboratoriX technical datasheet

LaboratoriX technical datasheet

Technical parameters consolidated from the manufacturer documentation. Each column corresponds to one model; shared values are clearly identified. Final configuration, accessories, power supply and applicable documentation are confirmed with the quotation.

ParameterBJPX-HP3040
Working Size
400 × 300 mm
Temp. Control Range
RT+5–320 °C
Temp. Control Precision
±1 °C
Stage Material
304 stainless steel
Power
2000 W
Power Supply
AC220V, 50/60 Hz(Standard); AC110V, 60 Hz(Optional, external transformer)
External Size(W*D*H)
450 × 330 × 200 mm
Net Weight
15 kg
Packing Size(W*D*H)
500 × 380 × 260 mm(Main instrument); 350 × 260 × 250 mm(External transformer)
Gross Weight
18 kg(Main instrument); 16 kg(External transformer)

Technical data supplied by BIOBASE.
