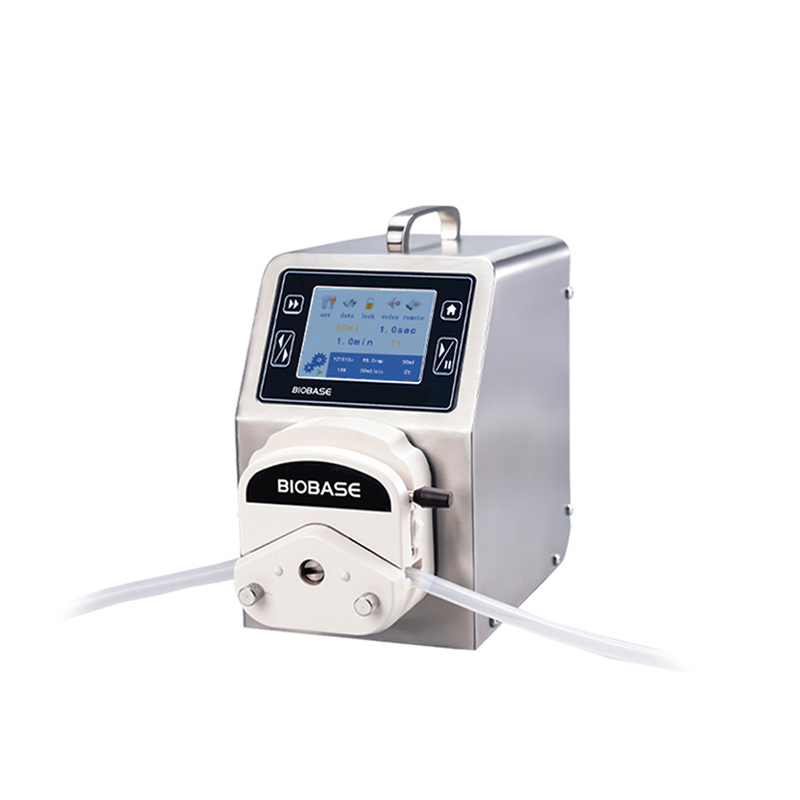

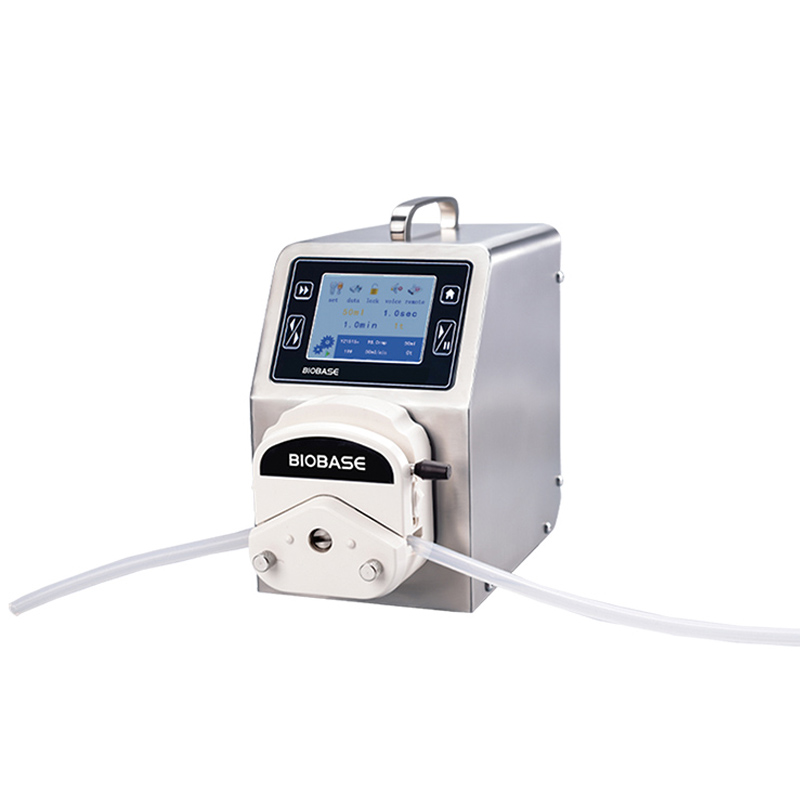

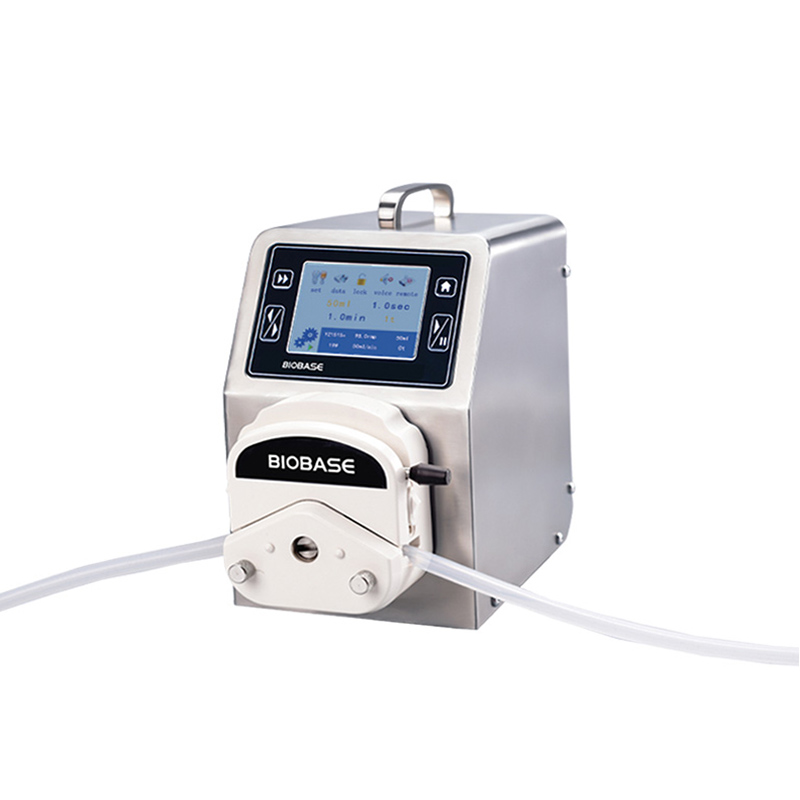

Dispensing peristaltic pump — DPP Series

DPP-BT100FC / DPP-BT300FC / DPP-BT600FC

The Dispensing Peristaltic Pump is an advanced liquid handling device designed for precise and controlled dispensing of a wide range of fluids.

Key features

Adjustable flow and speed
Transfer without contact with the mechanism
Selectable heads, tubing and channels

Made to orderPrice on request

Manufacturer: BIOBASE

Request a quote

Reply within 24 hoursValidated selection and configurationDelivery to the UK, all European countries, USA, Canada, Mexico and South America.

01 / Accessories

Available accessories

Optional accessories

Foot switch

Final contents, accessory compatibility and availability are confirmed in the quotation for the selected model.

02 / LaboratoriX technical datasheet

LaboratoriX technical datasheet

Technical parameters consolidated from the manufacturer documentation. Each column corresponds to one model; shared values are clearly identified. Final configuration, accessories, power supply and applicable documentation are confirmed with the quotation.

Parameter	DPP-BT100FC	DPP-BT300FC	DPP-BT600FC
Pump Head	Common to all modelsYZ1515X, YZ2515X, DG series(only DPP-BT100FC)
Speed Range	0.1–100 rpm(Reversible)	0.1–300 rpm(Reversible)	0.1–600 rpm(Reversible)
Speed Resolution	Common to all models0.1 rpm
Flow Range	0.0015–380 mL/min	0.007–1140 mL/min	0.007–2280 mL/min
Filling Precision	Common to all models<±0.5 %
Display	Common to all modelsLCD
Back Suction Angle	Common to all models10°~720°
Back Suction Speed	10–100 rpm	10–300 rpm	10–300 rpm
Optional Accessory	Common to all modelsFoot switch
Environmental Conditions	Common to all modelsTemperature: 0–40 °C; Humidity: < 80 %, no condensation
Consumption	22 W	35 W	50 W
Power Supply	Common to all modelsAC110/220 V±10 %, 50/60 Hz
Instrument Size(WDH)	Common to all models212 × 140 × 240 mm
Package Size(WDH)	Common to all models363 × 253 × 353 mm
Gross Weight	6 kg	6 kg	6.9 kg

Parameter	DPP-BT100FC	DPP-BT300FC	DPP-BT600FC
Standard Peristaltic · Pump SPP Series	Common to all modelsSpeed Range · Tubing · 0.1–100 rpm · (Reversible) · 0.1–300 rpm · (Reversible) · 0.1–600 rpm · (Reversible)
Pump Head&Single · Channel · Flow	Common to all modelsYZ1515x · 13#, 14#, 19#, 16#, 25#, 17#, 18# · 0.007–380 mL/min · 0.007–1140 mL/min · 0.007–2280 mL/min
Pump Head&Single · Channel · Flow (2)	Common to all modelsYZ2515x · 15#, 24# · 0.17–290 mL/min · 0.17–870 mL/min · 0.17–1740 mL/min
Pump Head&Single · Channel · Flow (3)	Common to all models2*YZ1515x · 13#, 14#, 19#, 16#, 25#, 17#, 18# · 0.007–380 mL/min · 0.007–1140 mL/min · 0.007–2280 mL/min
Pump Head&Single · Channel · Flow (4)	Common to all models2*YZ2515x · 15#, 24# · 0.17–290 mL/min · 0.17–870 mL/min · 0.17–1740 mL/min
Pump Head&Single · Channel · Flow (5)	Common to all modelsDG-1(6) · 0.5 × 0.8, 1 × 1, 2 × 1, · · 2.4 × 0.8, 3 × 1 · 0.002–36 mL/min · / · /
Pump Head&Single · Channel · Flow (6)	Common to all modelsDG-1(10) · 0.5 × 0.8, 1 × 1, 2 × 1, · · 2.4 × 0.8, 3 × 1 · 0.0015–27 mL/min · / · /
Pump Head&Single · Channel · Flow (7)	Common to all modelsDG-2(6) · 0.5 × 0.8, 1 × 1, 2 × 1, · · 2.4 × 0.8, 3 × 1 · 0.002–36 mL/min · / · /
Pump Head&Single · Channel · Flow (8)	Common to all modelsDG-2(10) · 0.5 × 0.8, 1 × 1, 2 × 1, · · 2.4 × 0.8, 3 × 1 · 0.0015–27 mL/min · / · /
Pump Head&Single · Channel · Flow (9)	Common to all modelsDG-4(6) · 0.5 × 0.8, 1 × 1, 2 × 1, · · 2.4 × 0.8, 3 × 1 · 0.002–36 mL/min · / · /
Pump Head&Single · Channel · Flow (10)	Common to all modelsDG-4(10) · 0.5 × 0.8, 1 × 1, 2 × 1, · · 2.4 × 0.8, 3 × 1 · 0.0015–27 mL/min · / · /

MADE-TO-ORDER SUPPLY

Do you need this equipment?

Share the application, configuration, quantity and delivery location. We prepare a tailored proposal with the required documentation.
